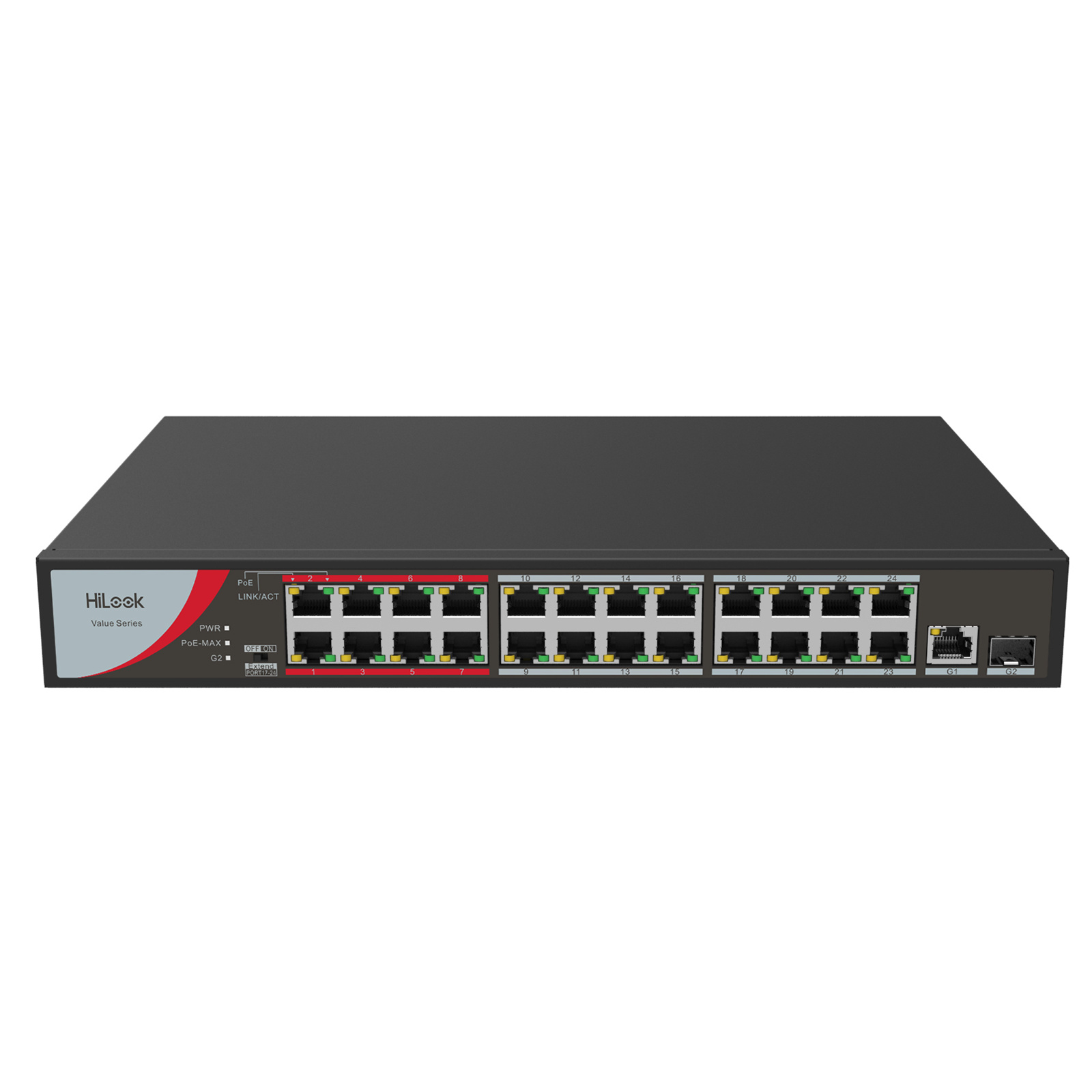

HiLook NS-0326P-230 24-Port 10/100M Unmanaged PoE Switch (Max 230W)
HiLook NS-0326P-230 24-Port 10/100M Unmanaged PoE Switch (Max 230W)
- Brand: HiLook
- MPN: NS-0326P-230
- Part #: SWHHLK0326
- UPC:
View all shipping info
- Brand: HiLook
- MPN: NS-0326P-230
- Part #: SWHHLK0326
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
HiLook NS-0326P-230 24-Port 10/100M Unmanaged PoE Switch (Max 230W)
- Brand: HiLook
- MPN: NS-0326P-230
- Part #: SWHHLK0326
Product URL: https://www.pbtech.com/au/product/SWHHLK0326/HiLook-NS-0326P-230-24-Port-10100M-Unmanaged-PoE-S
Features
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- High-priority ports
- 8-core power supply
- Up to 250m transmission distance
- 6kV surge protection for PoE ports
- PoE power management
- 1000Mbps network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
Specifications
Port number
24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port type
RJ45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode
Store-and-forward switching
Working mode
Standard mode (default); Extend mode
High priority ports
Ports 1 to 8
Ports for long-distance transmission
Ports 17 to 24
MAC address table
4 K
Switching capacity
8.8 Gbps
Packet forwarding rate
6.547 Mpps
Internal cache
2.75 Mbits
PoE standard
IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port
Ports 1 to 24
Max. port power
30 W
PoE power budget
230 W
Max. power consumption
250 W
Shell
Metal material
Net weight
2.55 kg (5.6 lb)
Dimension (L × H × D)
335 mm × 44.5 mm × 226 mm (13.2" × 1.8" × 8.9")
Operating temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity
5% to 95% (no condensation)
Storage humidity
5% to 95% (no condensation)
Power supply
100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle
20 W
