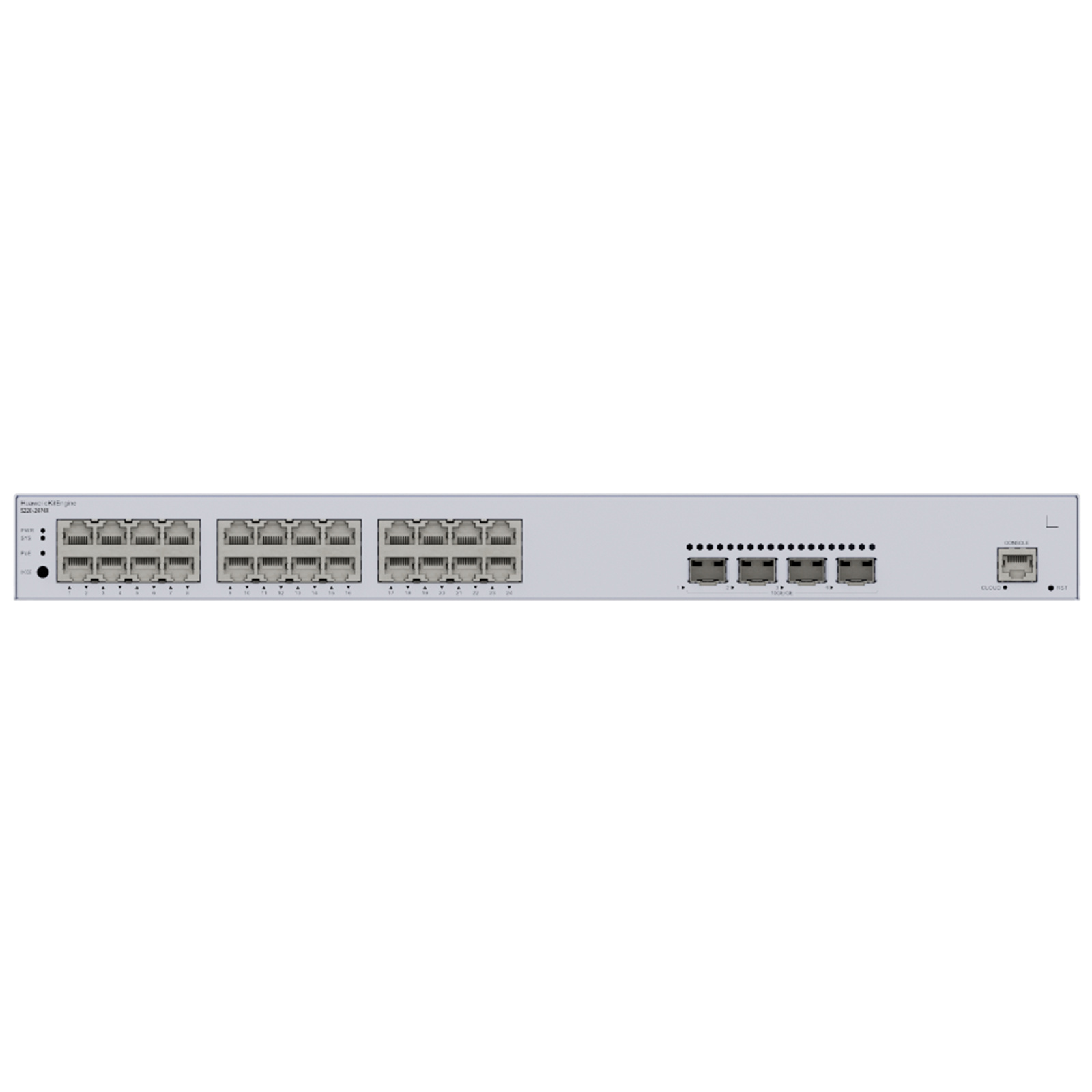

Huawei eKitEngine S220-24P4X 28-Port 10G L2 Managed PoE Switch (400W) - 10G SFP+ x4, 1GbE PoE+ x24

PB Tech price

$ 691 .64

+GST

$ 760 .81

inc GST

Huawei eKitEngine S220-24P4X 28-Port 10G L2 Managed PoE Switch (400W) - 10G SFP+ x4, 1GbE PoE+ x24

Brand: Huawei
MPN: 98012376
Part #: SWHHUA98012376
UPC:

NEW ARRIVAL

PB Tech price

$ 760 .81

inc GST

+GST inc GST

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Huawei
MPN: 98012376
Part #: SWHHUA98012376
UPC:

Be the first to review this product

Form Factor

1U Rackmount

10 Gigabit Ports

4 Ports

10 Gigabit

Management Level

Managed L2

Number of Ports

28 Ports

PoE Ports

24 Ports

PoE Budget

400 Watts

View full specs

Returns & Warranty Bulk Quote Print Page

Features

24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports | built-in AC power | Packet forwarding rate: 95 Mpps | Switching capacity: 128 Gbit/s

Huawei eKitEngine S220 series switches are Layer 2 GE/10GE switches designed for the small office and home office (SOHO)/small- and medium-sized business (SMB) market. They include eight models, such as those with 8 downlink GE electrical ports (PoE/non-PoE ports), 24 downlink GE electrical ports (PoE/non-PoE ports), 48 downlink GE electrical ports (PoE/non-PoE), and uplink GE/10GE ports. These switches provide many features, such as rich management methods (web-based management, CLI-based management, and app-based management), flexible Ethernet networking, and diversified security control. Therefore, they can be widely used in scenarios such as SOHO, enterprise office, budget hotels, factories, primary and secondary education, hospitals, and building security

Flexible Ethernet Networking

In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), eKitEngine S220 series switches support the latest Ethernet Ring Protection Switching (ERPS) standard in the industry. ERPS is defined in ITU-T G.8032. It provides millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.

Diversified Security Control

eKitEngine S220 series switches support multiple security authentication modes including MAC address authentication and 802.1X authentication, and dynamically deliver user policies (VLAN, QoS, and ACL). eKitEngine S220 series switches support port-based 802.1X authentication, MAC address authentication, and multi-mode authentication

Easy Operations and Maintenance

eKitEngine S220 series switches can be managed and maintained using SNMPv1, SNMPv2c, SNMPv3, CLI, web system, or SSHv2.0.

Smart Upgrade

Based on Huawei Online Upgrade Platform (HOUP), eKitEngine S220 series switches support smart upgrade. They obtain the version upgrade path from the HOUP and download the new system software. The upgrade process is highly automated as it supports one-click upgrade. In addition, this feature supports system software pre-loading, which greatly shortens the upgrade time and reduces the service interruption time.

Specifications

Switching capacity

128 Gbit/s

Packet forwarding rate

95 Mpps

GE RJ45

24 (PoE+) (1G/100M/10M)

10G SFP+

4 (10G/1G)

PoE

Supported

Maximum PoE power consumption [W]

400

Number of fans modules

Certification

EMC certification Safety certification Manufacturing certification

Chassis material

Metal

Static power consumption [W]

27.07

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type

Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

2.92 kg (6.44 lb)

Weight with packaging [kg(lb)]

3.79 kg (8.36 lb)

Typical power consumption [W]

37.12

Maximum power consumption [W]

- Without PoE: 44.35 W - Full PoE load: 485.91 W (PoE: 400 W)

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

AC built-in

Types of fans

Built-in

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Manufacturer Part No:

98012376

Brand:

Huawei

Product Type:

UPC

Product Family:

eKitEngine

Shipping Weight:

1 kg

PB Part No:

SWHHUA98012376

Product Model:

S220-24P4X

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
