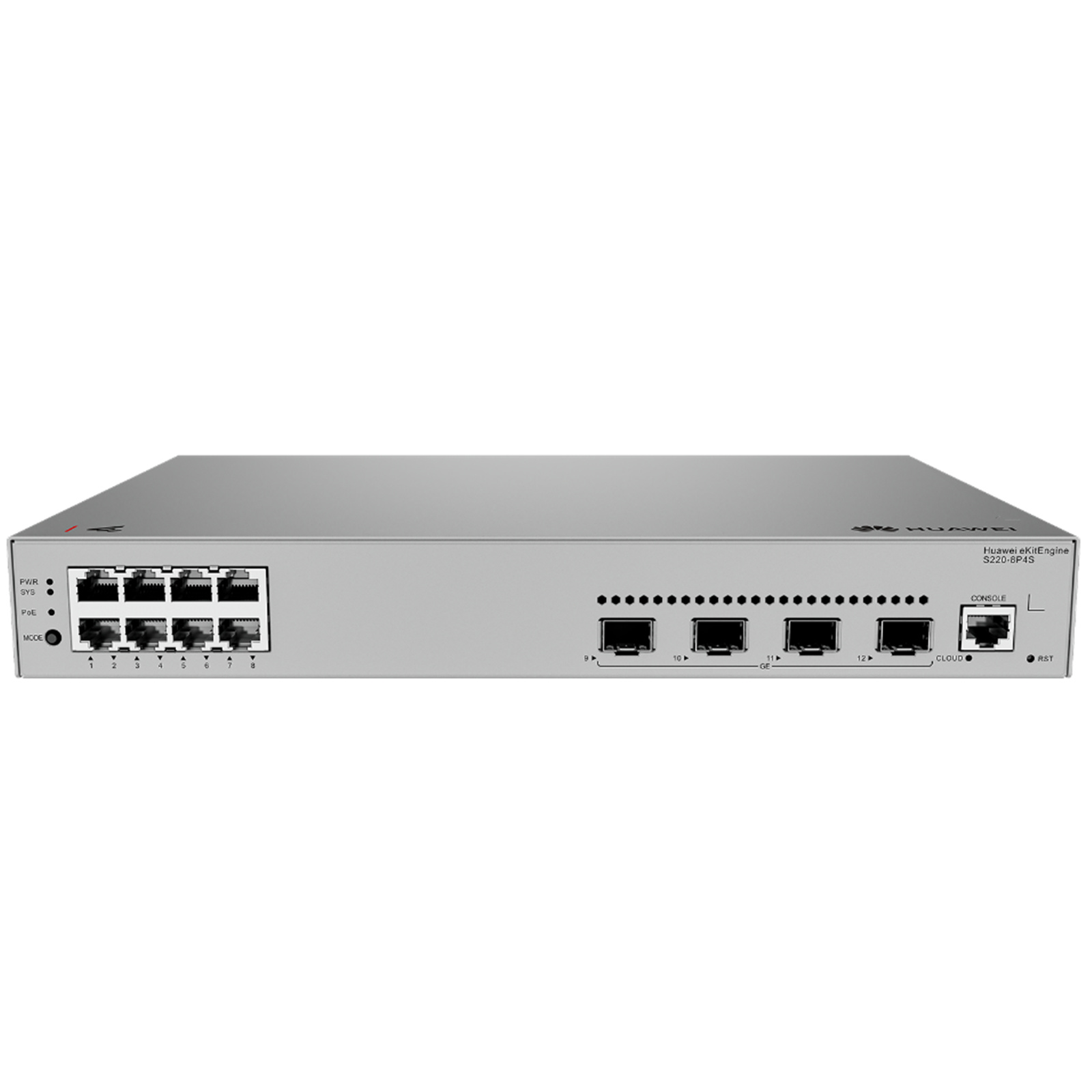

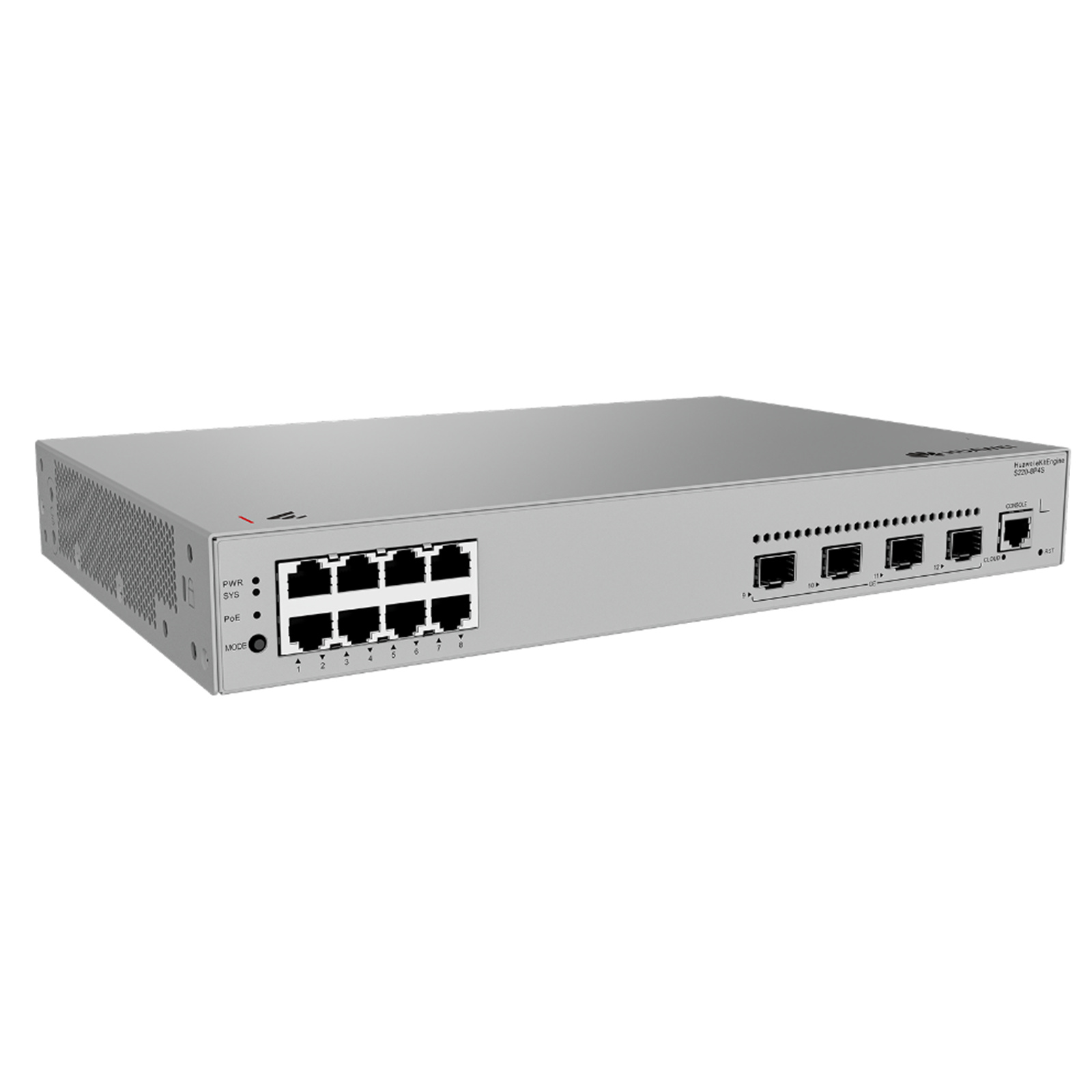

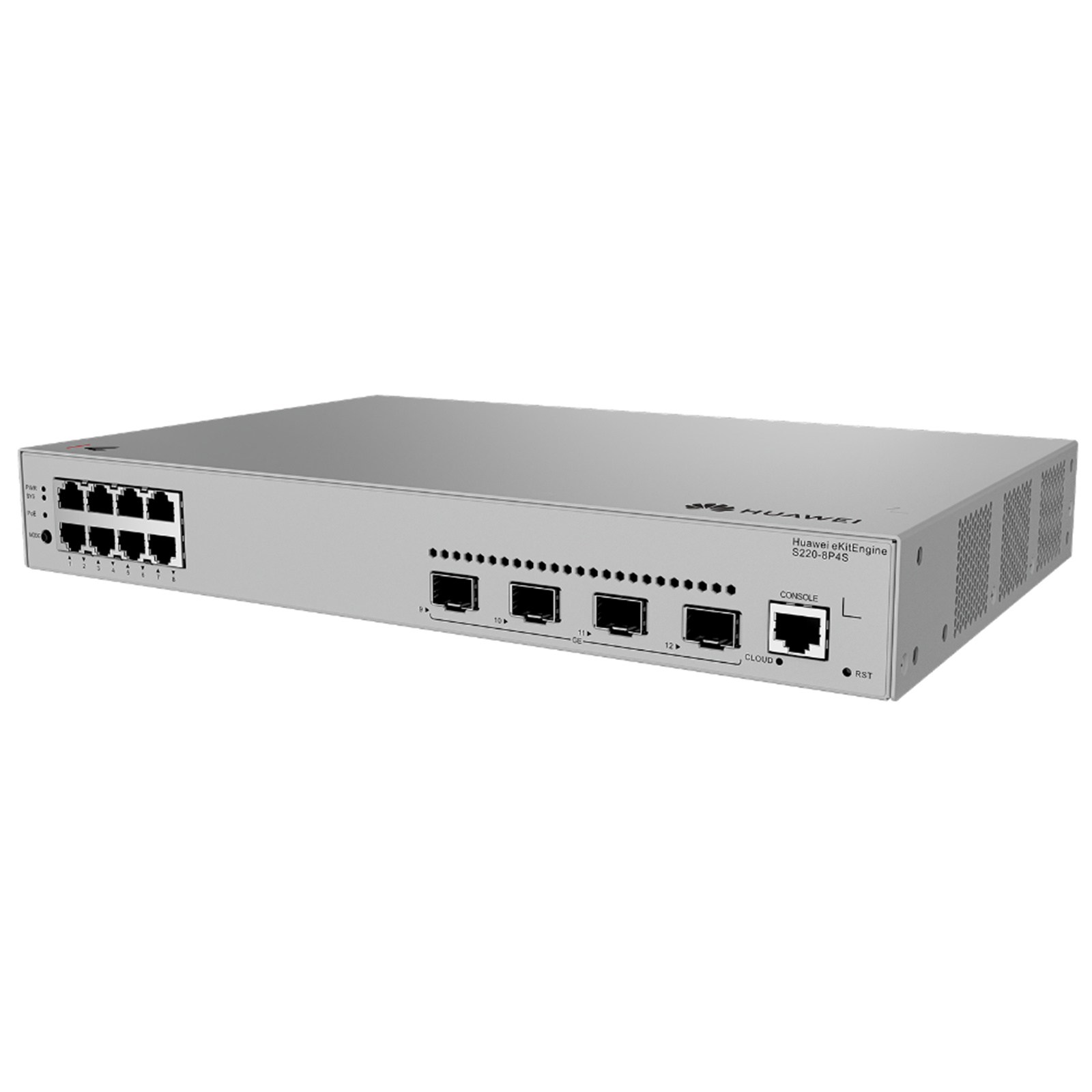

Huawei eKitEngine S220-8P4S 12-Port Gigabit L2 Managed PoE Switch (125W) - SFP x4, 1GbE PoE+ x8

PB Tech price

$ 408 .77

+GST

$ 449 .65

inc GST

Huawei eKitEngine S220-8P4S 12-Port Gigabit L2 Managed PoE Switch (125W) - SFP x4, 1GbE PoE+ x8

Brand: Huawei
MPN: 98012552
Part #: SWHHUA98012552
UPC:

PB Tech price

$ 449 .65

inc GST

+GST inc GST

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Huawei
MPN: 98012552
Part #: SWHHUA98012552
UPC:

Be the first to review this product

Form Factor

Not Specified

10 Gigabit Ports

0 Ports

10 Gigabit

Management Level

Managed L2

Number of Ports

12 Ports

PoE Ports

8 Ports

PoE Budget

125 Watts

View full specs

Returns & Warranty Bulk Quote Print Page

Features

8 x 10/100/1000BASE-T,4 x GE SFP ports ports | 125W PoE+ | built-in AC power | Packet forwarding rate: 18 Mpps | Switching capacity: 24 Gbit/s

Specifications

Switching capacity

24 Gbit/s

Packet forwarding rate

18 Mpps

GE RJ45

8 (PoE+) (1G/100M/10M)

GE SFP

4 (1G)

Certification

EMC certification Safety certification Manufacturing certification

Chassis material

Metal

Static power consumption [W]

17.19

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)

Installation type

Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

2.5 (5.51)

Weight with packaging [kg(lb)]

3.05 kg (6.72 lb)

Typical power consumption [W]

19.99

Maximum power consumption [W]

- Without PoE: 25.09 W - Full PoE load: 166.65 W (PoE: 125 W)

Number of fans modules

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

AC built-in

Input voltage range [V]

AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

Manufacturer Part No:

98012552

Brand:

Huawei

Product Type:

UPC

Product Family:

eKitEngine

Shipping Weight:

1 kg

PB Part No:

SWHHUA98012552

Product Model:

S220-8P4S

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
