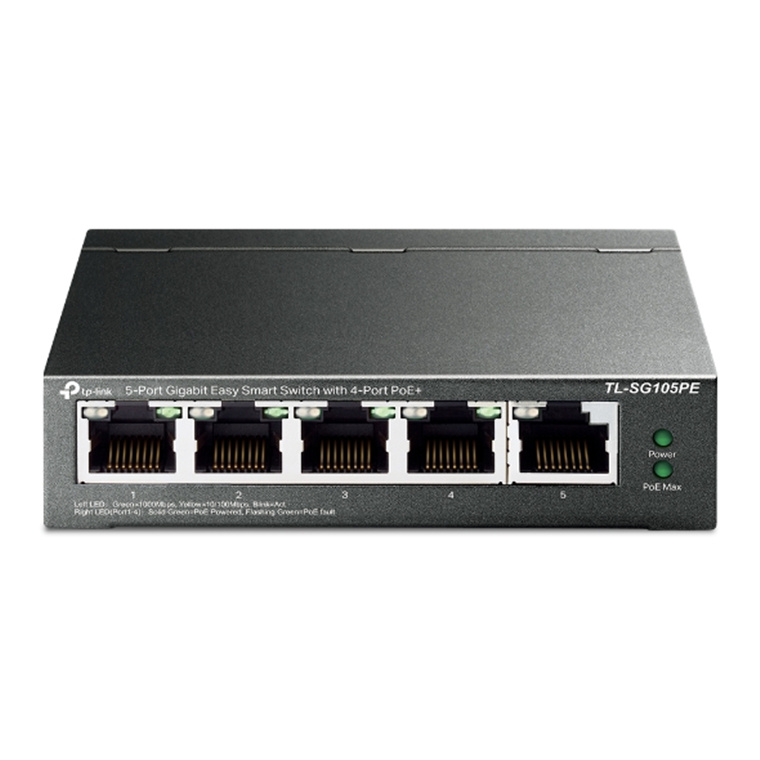

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switchwith 4-Port PoE+ (Max 65W)

TL-SG105PE - 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 65 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise

Professional 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

Multiple Application Scenarios

The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

- Surveillance: Works with IP Cameras
- Conference Call: Works with IP Phones
- Wi-Fi Coverage: Works with Omada EAPs
- Wired Connections: Works with PCs and Printers

Dedicated 4 PoE+ Ports (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4x gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Easy to Use

Value-Added Features Bring Unexpected Experiences

- QoS for a Lag-Free Experience: Ensures smooth traffic for latency-sensitive applications, such as voice and video
- IGMP Snooping for Multicast Optimization: Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
- VLAN for Security: Helps to create network with higher security and better overall performance by dividing network into smaller groups

Making Management Easy

TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports' power to ensure high-priority ports' power supply when the total PoE power consumption exceeds 65 W. This protects the device from power overload operation.

Great Compatibility with PD Detection

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG105PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105PE delivers switching performance you can depend on.

Download data sheet: https://www.tp-link.com/baltic/business-networking/omada-sdn-switch/tl-sg105pe/
