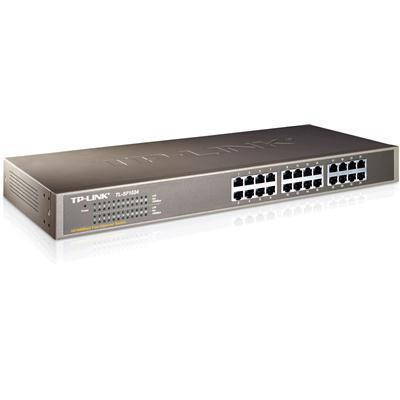

TP-Link TL-SF1024 24-Port 10/100Mbps Rackmount Switch
Out of stock
TP-Link TL-SF1024 24-Port 10/100Mbps Rackmount Switch
- Brand: TP-Link
- MPN: TL-SF1024
- Part #: SWHTPL1024
- UPC: 845973020057
View all shipping info
- Brand: TP-Link
- MPN: TL-SF1024
- Part #: SWHTPL1024
- UPC: 845973020057
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Switches





TP-Link TL-SF1024 24-Port 10/100Mbps Rackmount Switch
- Brand: TP-Link
- MPN: TL-SF1024
- Part #: SWHTPL1024
- UPC:845973020057

Product URL: https://www.pbtech.com/au/product/SWHTPL1024/TP-Link-TL-SF1024-24-Port-10100Mbps-Rackmount-Swit
Features
- Complies with IEEE 802.3 IEEE 802.3u standards
- 24 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power link activity 100Mbps
- Standard 19-inch rack-mountable steel case
- Internal universal power supply
Standards |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX |
Topology |
Star |
Protocol |
CSMA/CD |
Data Transfer Rate |
Ethernet: 10Mbps (Half Duplex) 20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex) 200Mbps (Full Duplex) |
Network Media (Cable) |
10Base-T: UTP category 3 4 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) |
Number of Ports |
24 10/100Mbps Auto-Negotiation ports |
LED indicators |
Power Link/Act 100Mbps |
Transfer Method |
Store-and-Forward |
MAC Address Learning |
Automatically learning automatically Update |
Frame Filtering and Forward Rate |
10Mbps: 14880pps 100Mbps: 148800pps |
Power Supply |
100-240V~ 50-60Hz (Internal universal power supply) |
Safety & Emission |
FCC CE |
Dimensions (W×D×H) |
17.3 x 7.1 x 1.7 in.(440 x 180 x 44 mm)p> |
Environment |
Operating Temperature: 0 C~40 C (32 F~104 F)
Storage Temperature: -40 C~70 C (-40 F~158 F) Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~95% non-condensing |
