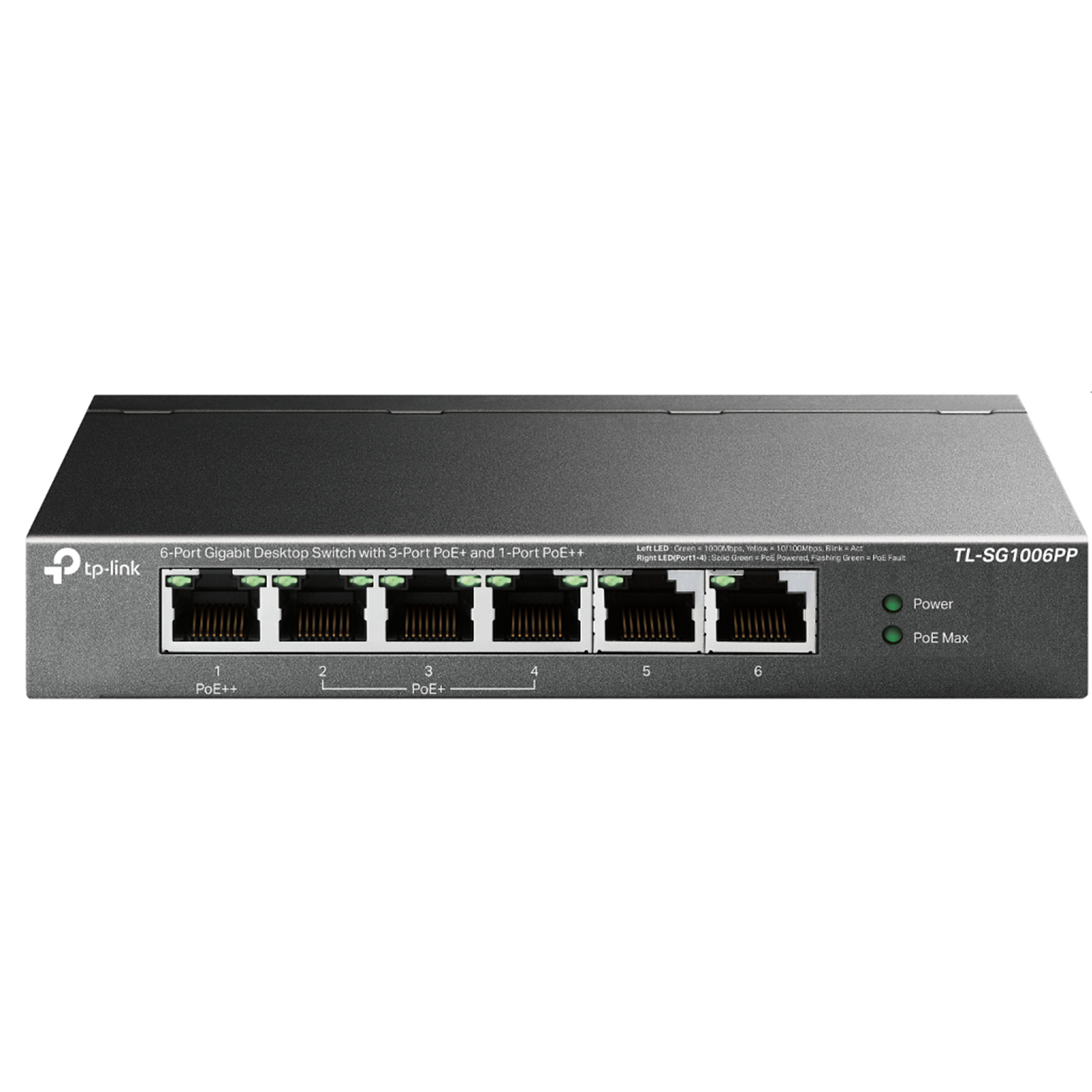

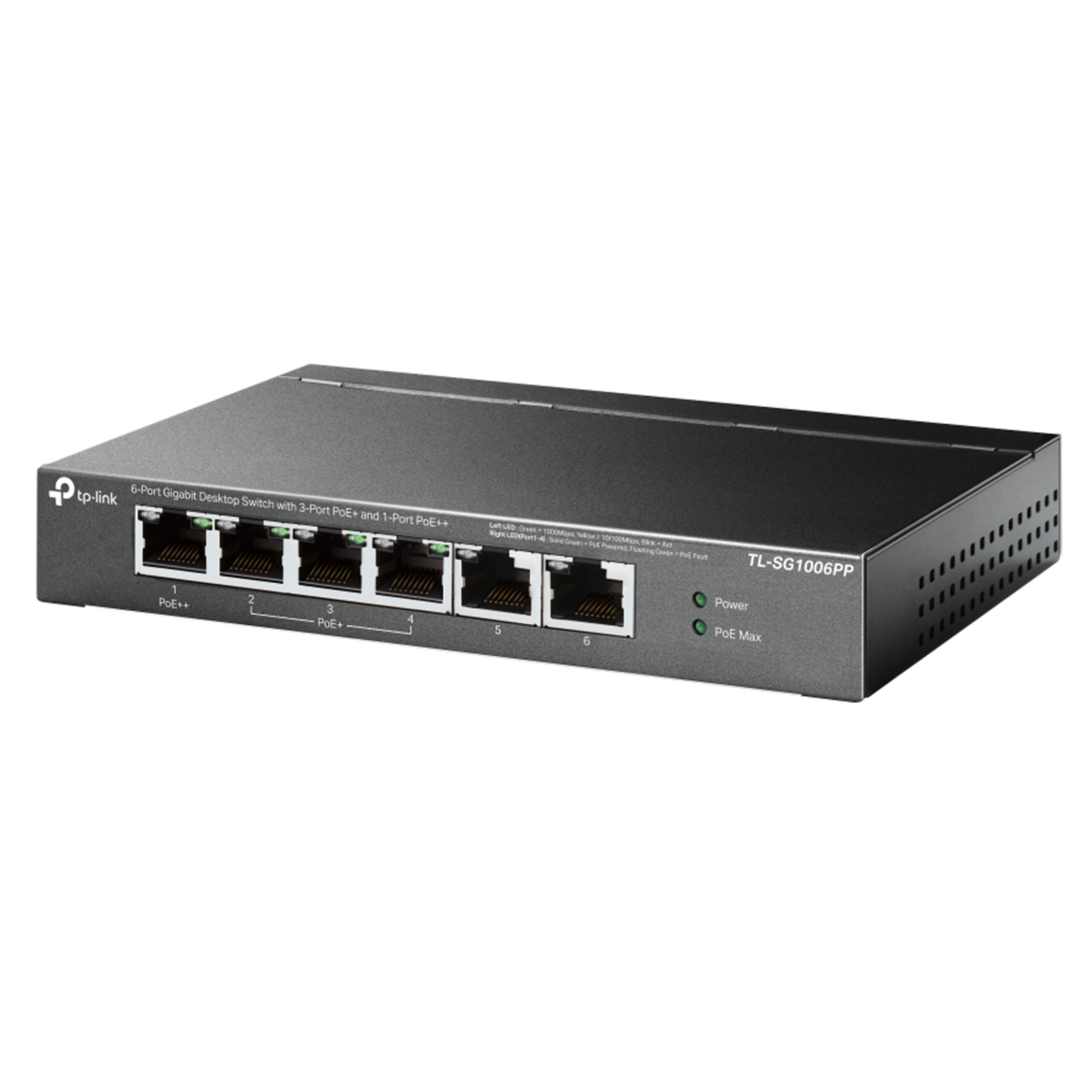

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ (Max 64W)
Out of stock
TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ (Max 64W)
- Brand: TP-Link
- MPN: TL-SG1006PP
- Part #: SWHTPL1066
- UPC:
View all shipping info
- Brand: TP-Link
- MPN: TL-SG1006PP
- Part #: SWHTPL1066
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Dedicated 1 PoE++ and 3 PoE+ Ports (64 W Budget) for Numerous Applications
Port 1 complies with the 802.3af/at/bt PoE++ to supply ample power up to 60 W, and ports 2-4 compliance with 802.3af/at PoE+ support up to 30 W on each PoE+ port. The total 64 W PoE power budget* for all PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
-Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*-perfect for IP Camera deployment in large areas.
System Self-Healing
with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1006PP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1006PP delivers switching performance you can depend on.
Specifications
Reviews
Accessories
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ (Max 64W)
- Brand: TP-Link
- MPN: TL-SG1006PP
- Part #: SWHTPL1066
Product URL: https://www.pbtech.com/au/product/SWHTPL1066/TP-Link-TL-SG1006PP-6-Port-Gigabit-Desktop-Switch
Features
Dedicated 1 PoE++ and 3 PoE+ Ports (64 W Budget) for Numerous Applications
Port 1 complies with the 802.3af/at/bt PoE++ to supply ample power up to 60 W, and ports 2-4 compliance with 802.3af/at PoE+ support up to 30 W on each PoE+ port. The total 64 W PoE power budget* for all PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
-Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*-perfect for IP Camera deployment in large areas.
System Self-Healing
with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1006PP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1006PP delivers switching performance you can depend on.
Specifications
HARDWARE FEATURES
Interface
- 6× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless

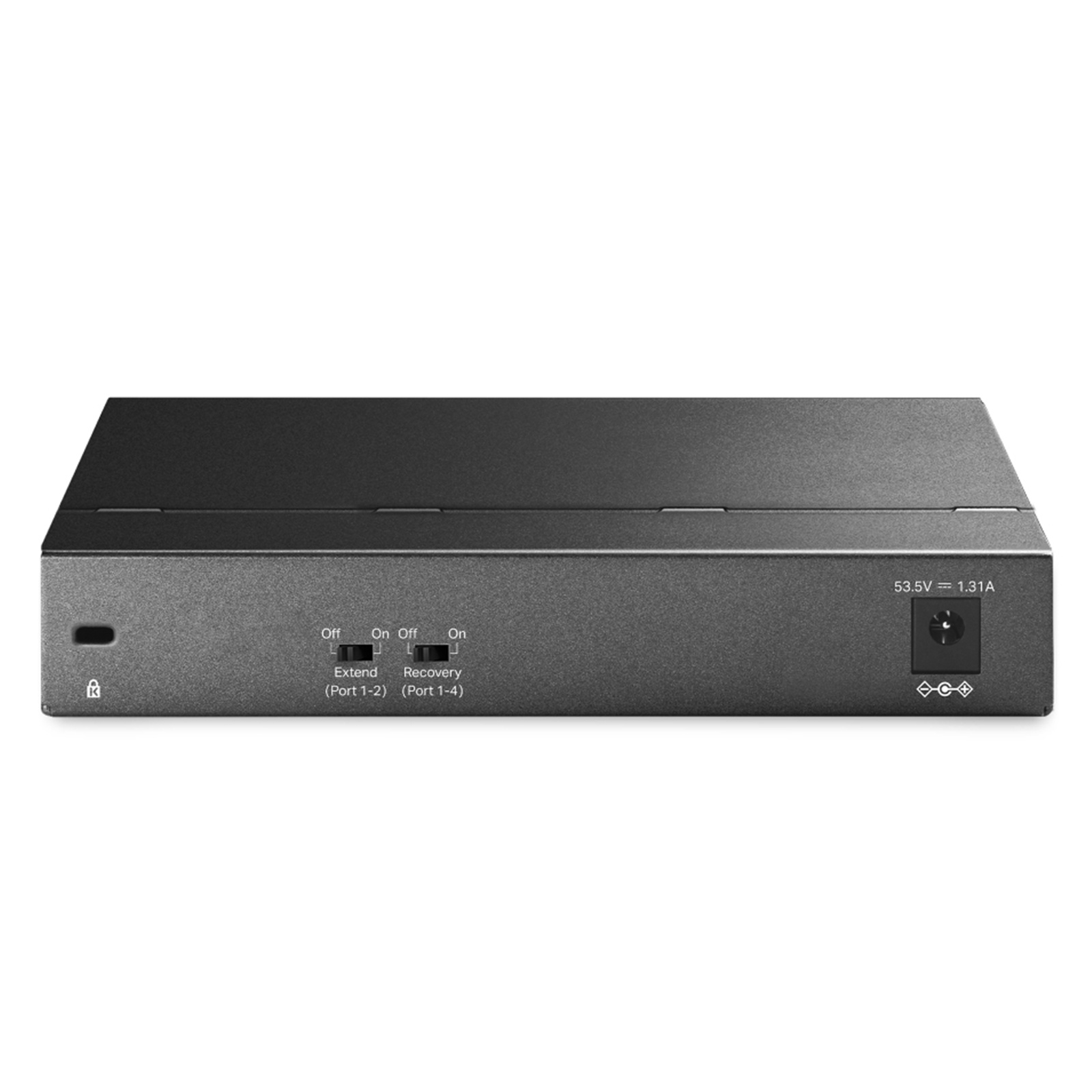

External Power Supply
External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate
8.928 Mpps
PoE Ports (RJ45)
- Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
- Power Supply: 64 W
Mac Address Table
4K
Switching Capacity
12 Gbps
Dimensions ( W x D x H )
6.2x4.0x1.0 in (158x101x25 mm)
Max Power Consumption
- 4.75 W (220/50 Hz. no PD connected)
- 71.46 W (220/50 Hz. with 64 W PD connected)
Max Heat Dissipation
- 16.20 BTU/h (220/50 Hz. no PD connected)
- 243.68 BTU/h (220/50 Hz. with 64 W PD connected)
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3af/at/bt Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)
Transfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
- TL-SG1006PP
- Power Adapter
- Installation Guide
Environment
- Operating Temperature: 0-40 ? (32-104 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
