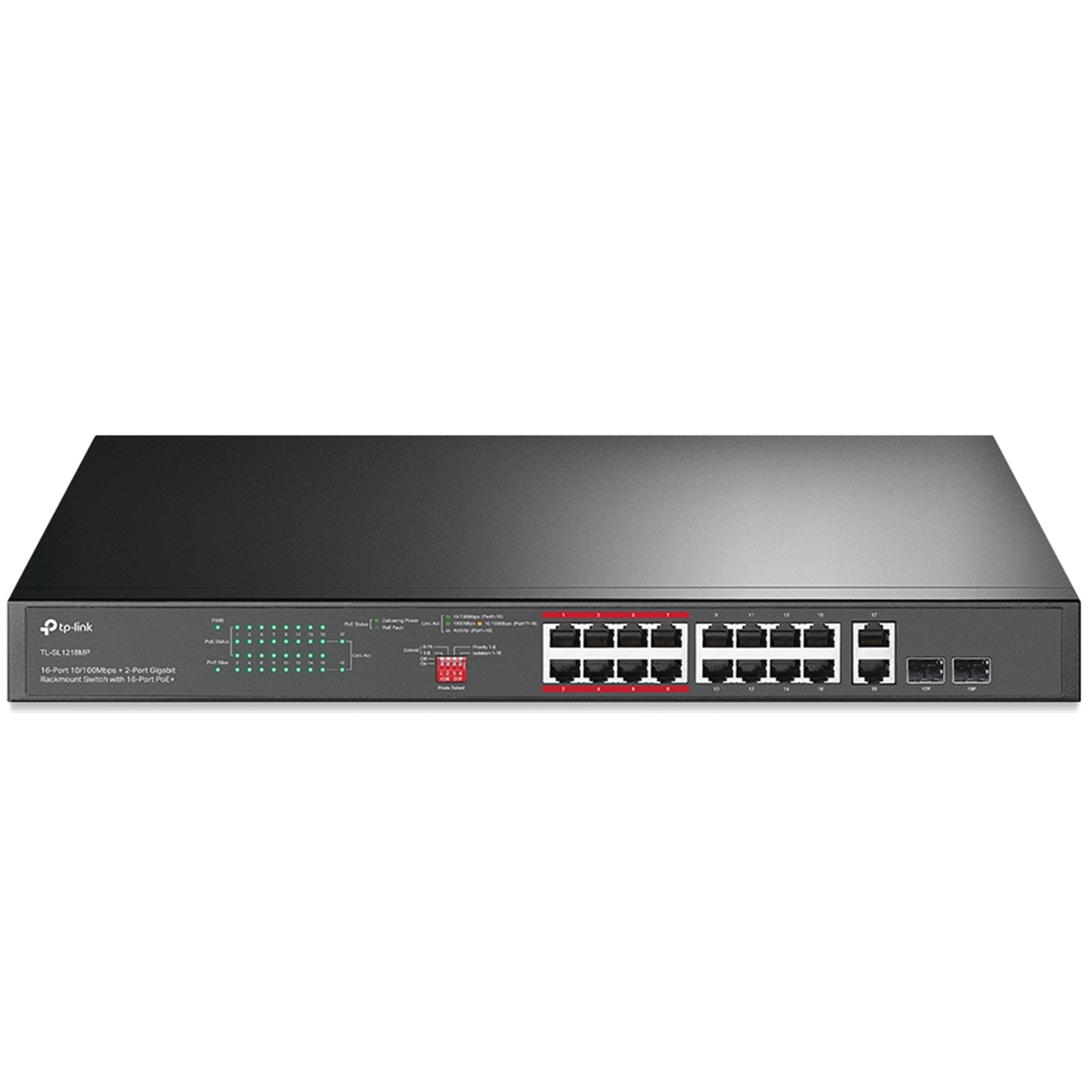

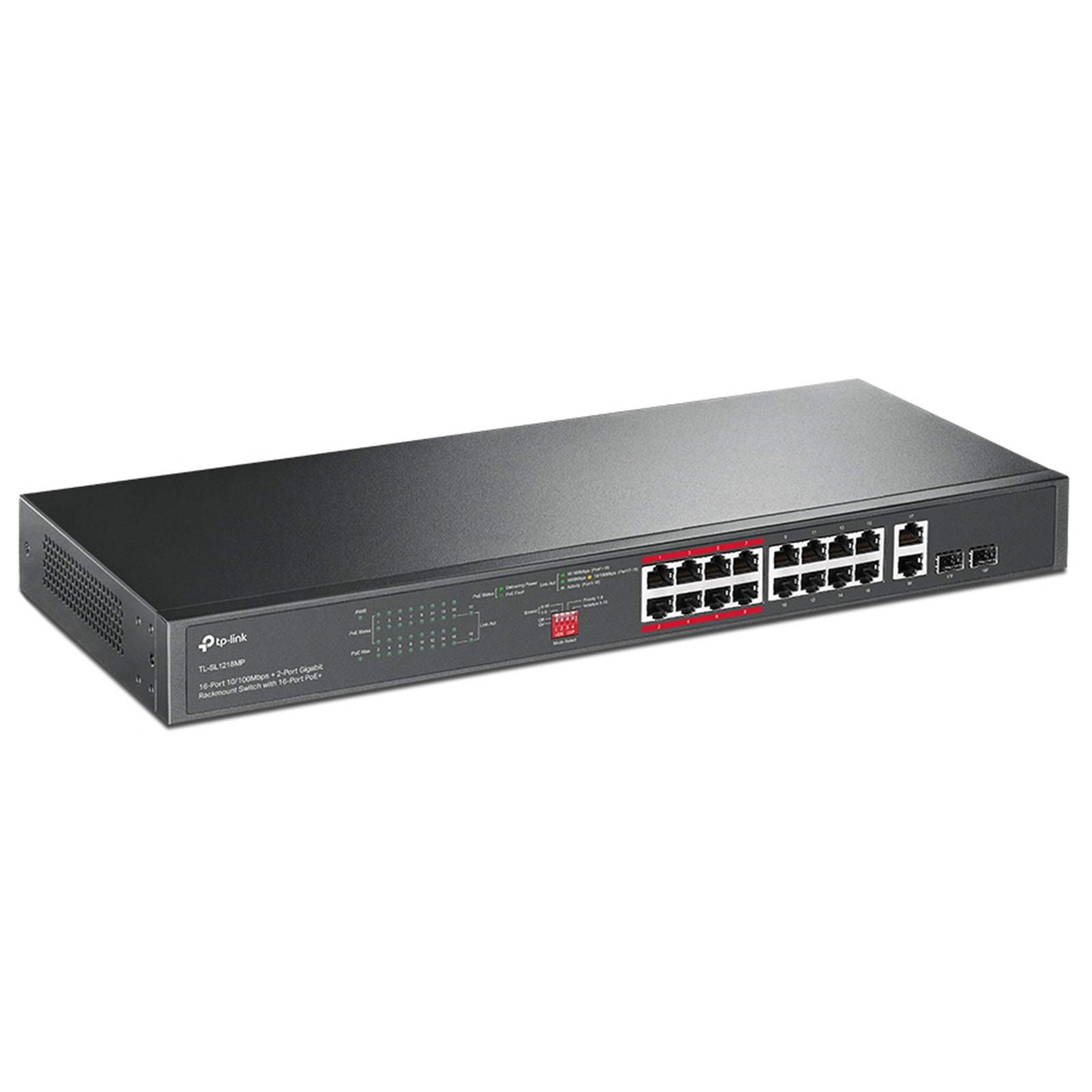

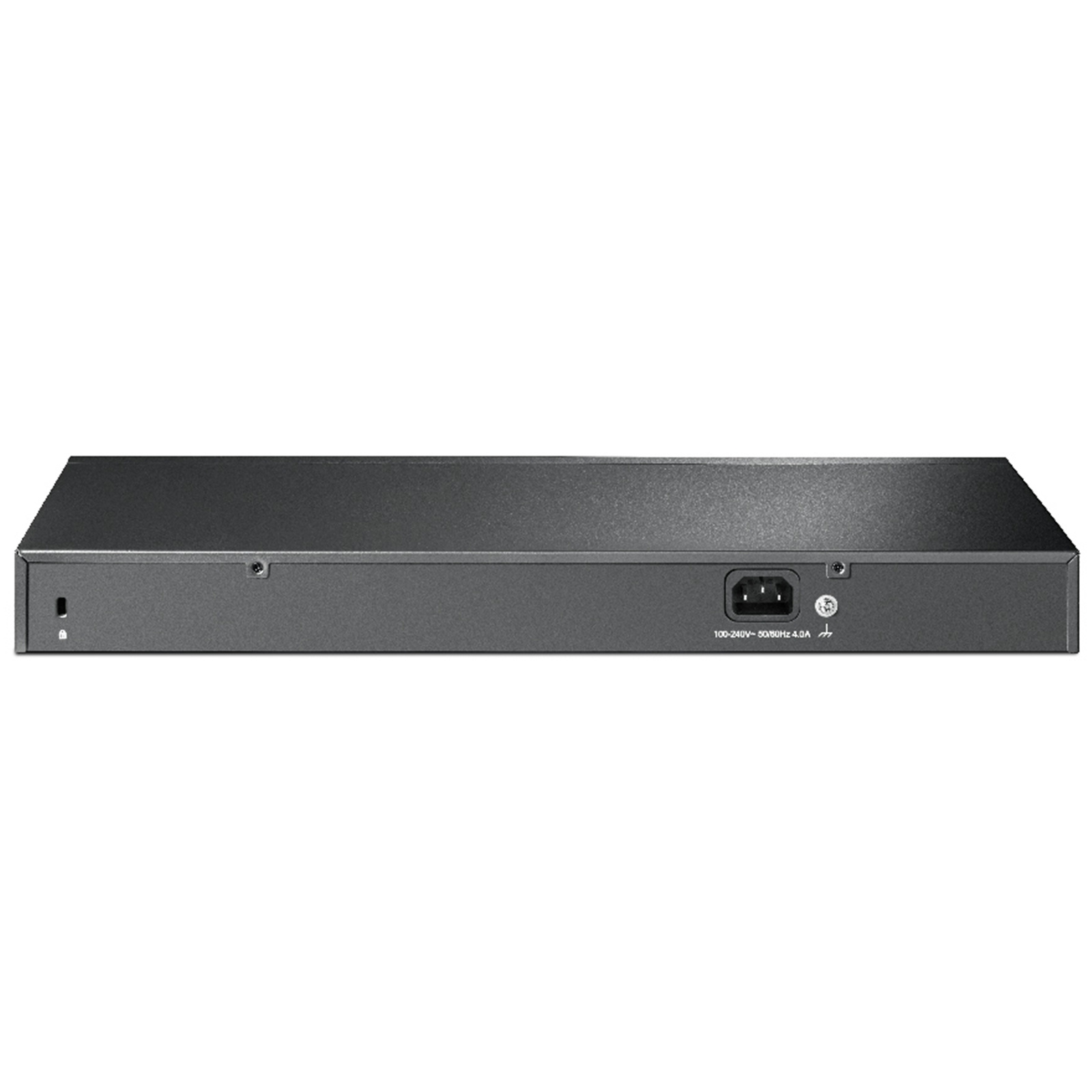

TP-Link TL-SL1218MP 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ (Max 250W)
Out of stock
TP-Link TL-SL1218MP 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ (Max 250W)
- Brand: TP-Link
- MPN: TL-SL1218MP
- Part #: SWHTPL1220
- UPC:
View all shipping info
- Brand: TP-Link
- MPN: TL-SL1218MP
- Part #: SWHTPL1220
- UPC:
Features
16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1-8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Ideal for IP Surveillance-Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1-16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 16× HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SL1218MP 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ (Max 250W)
- Brand: TP-Link
- MPN: TL-SL1218MP
- Part #: SWHTPL1220
Product URL: https://www.pbtech.com/au/product/SWHTPL1220/TP-Link-TL-SL1218MP-16-Port-10100-Mbps--2-Port-Gig
Features
16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1-8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Ideal for IP Surveillance-Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1-16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 16× HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.
Specifications
HARDWARE FEATURES
Interface
- 16 PoE+ 10/100 Mbps RJ45 Ports
- 2× 10/100/1000 Mbps RJ45 Ports
- 2× Combo Gigabit SFP Slots
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
- Standard: 802.3at/802.3af compliant
- PoE Ports: Ports 1-16
- PoE Power Budget: 250 W
Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in(440 × 180 × 44 mm)
Max Power Consumption
- 15.0 W (no PD connected)
- 285.8 W (with 250 W PD connected)
Max Heat Dissipation
- 51.1 BTU/h (no PD connected)
- 974.6 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity
7.2 Gbps
Packet Forwarding Rate
5.36 Mpps
MAC Address Table
8K
Jumbo Frame
10 KB
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3at/af Compliant PDs
- Extend Mode (Up to 250m PoE power supply and data transmission)
- Priority Mode
- Isolation Mode
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control
Transmission Method
Store-And-Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
- TL-SL1218MP
- Power Cable
- Installation Guide
- Two mounting brackets and the fittings
Environment
- Operating Temperature: 0-50 °C (32-122 °F)
- Storage Temperature: -40-70 °C (-40-158 °F)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
