Features

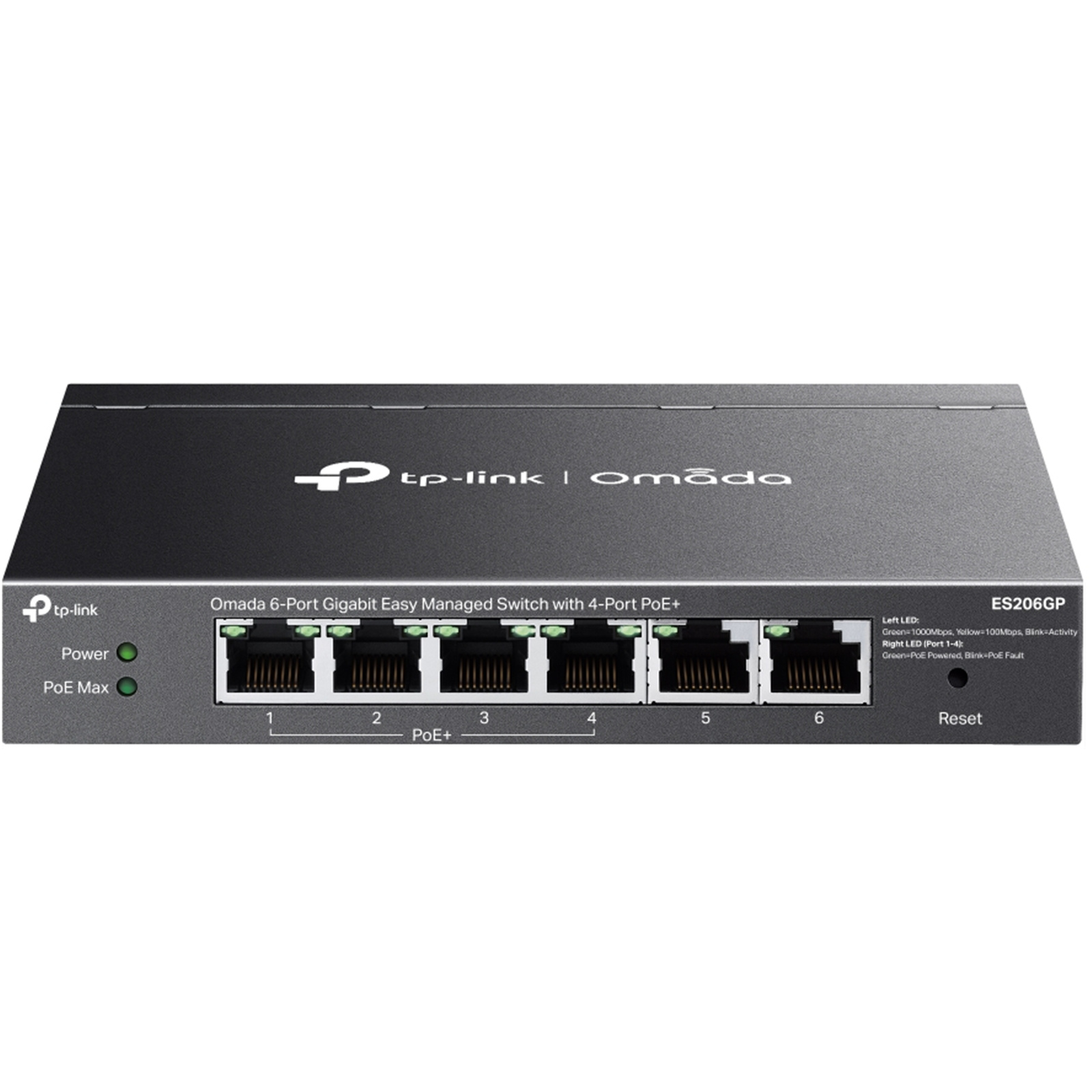

Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
- 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specifications
HARDWARE FEATURES
Interface
- 6× 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3af PoE and 802.3at PoE+)
- Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Installation
- Desktop
- Wall Mount
Physical Security Lock
Yes
Power Supply

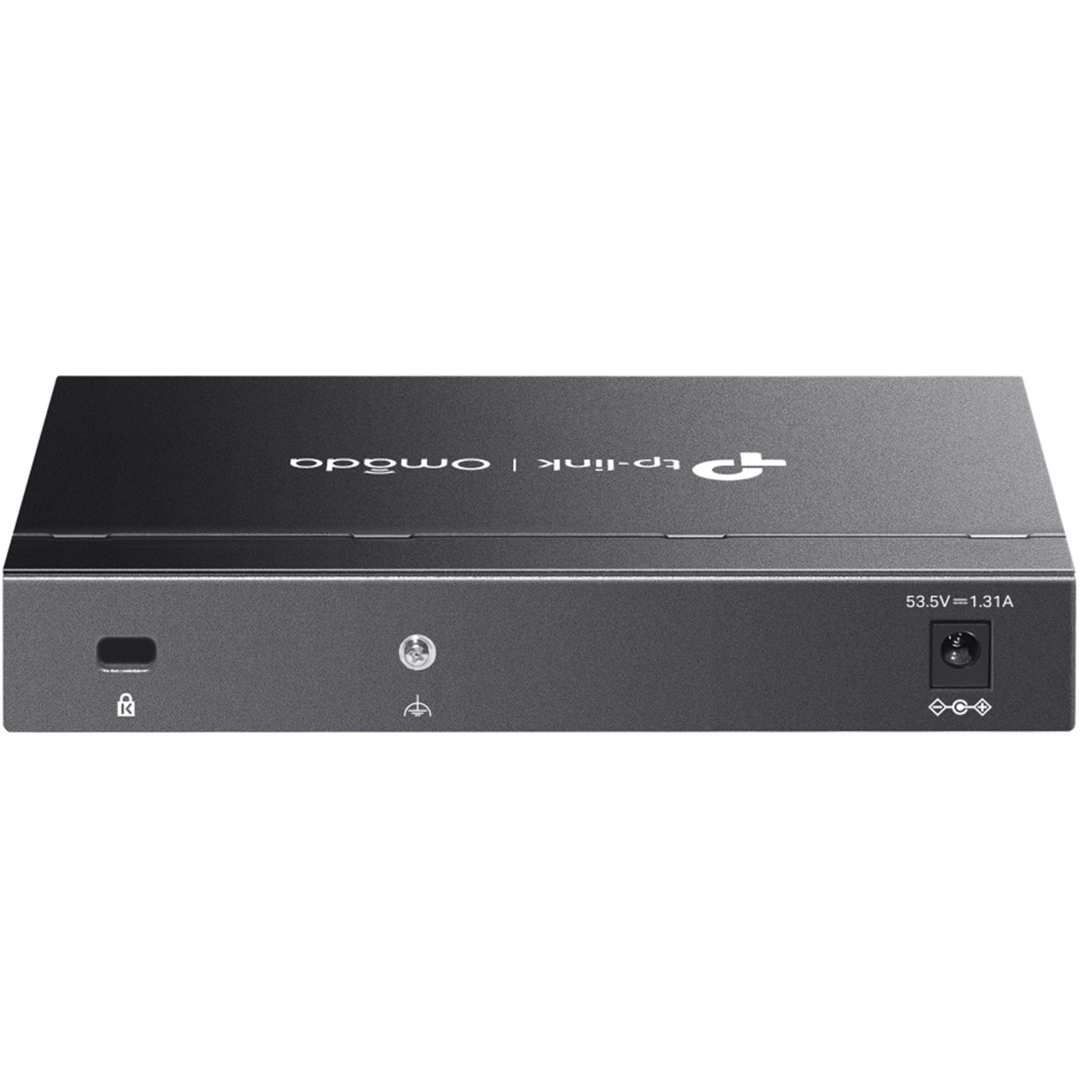

DC Power Adapter (Output: 53.5VDC / 1.31A)
PoE Ports (RJ45)
- Standard: 802.3af PoE and 802.3at PoE+ compliant
- PoE Ports: 4 ports
- PoE Budget: 65W available for all PoE+ ports, 30W max per port
- Fast PoE & Perpetual PoE
- PoE Auto Recovery‡
- Up to 250m PoE transmission distance**
Dimensions ( W x D x H )
6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Surge Protection
±6kV
PERFORMANCE
Switching Capacity
12 Gbps
Packet Forwarding Rate
7.4 Mpps
MAC Address Table
8K
Packet Buffer Memory
4 Mbit
Jumbo Frame
15 KB
SOFTWARE FEATURES
Quality of Service
- Port-based/802.1p/DSCP QoS
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rating Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features
- Static Link Aggregation
- Loop Prevention / Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
L2 Multicast
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method
Store-And-Forward
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features
- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Unified Configuration†
OTHERS
Certification
FCC, CE, RoHS
Package Content
- ES206GP
- Power Adapter
- Power Cord
- Rubber Feet
- Installation Guide
Environment
- Operating Temperature: -5?~40? (23?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
