TP-Link Omada ES208G 8-Port Gigabit Easy Managed Switch - 1GbE x8
TP-Link Omada ES208G 8-Port Gigabit Easy Managed Switch - 1GbE x8
- Brand: TP-Link
- MPN: ES208G
- Part #: SWHTPL2081
- UPC:
View all shipping info
- Brand: TP-Link
- MPN: ES208G
- Part #: SWHTPL2081
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link Omada ES208G 8-Port Gigabit Easy Managed Switch - 1GbE x8
- Brand: TP-Link
- MPN: ES208G
- Part #: SWHTPL2081
Product URL: https://www.pbtech.com/au/product/SWHTPL2081/TP-Link-Omada-ES208G-8-Port-Gigabit-Easy-Managed-S
Features

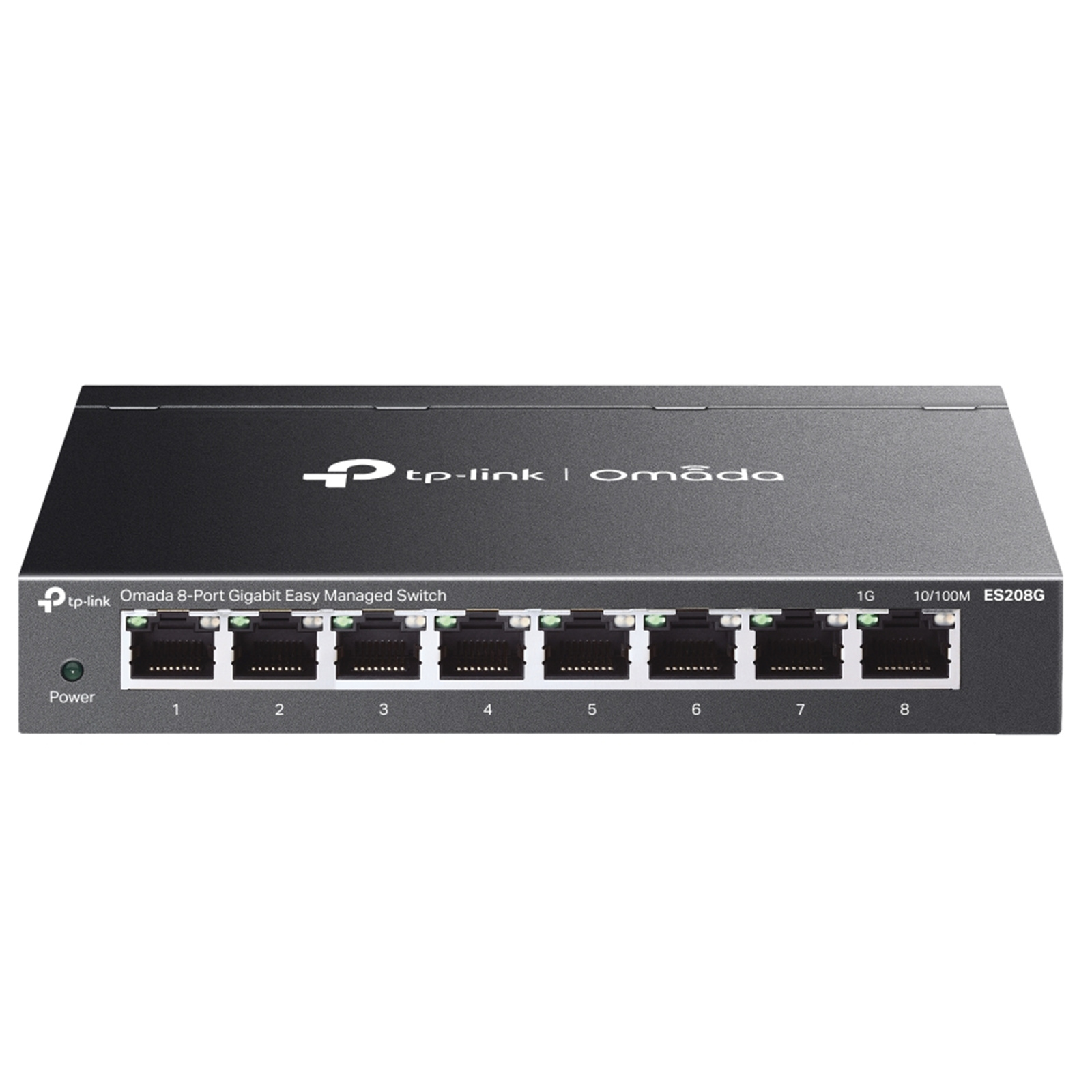

Omada 8-Port Gigabit Easy Managed Switch
- 8× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test?, QoS? for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specifications
HARDWARE FEATURES
Interface
- 8× 10/100/1000 Mbps RJ45 Ports
- Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Installation
- Desktop
- Wall Mount
Physical Security Lock
Yes
Power Supply
DC Power Adapter (Output: 5VDC / 0.6A)
Dimensions ( W x D x H )
6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Surge Protection
±6kV
PERFORMANCE
Switching Capacity
16 Gbps
Packet Forwarding Rate
11.9 Mpps
MAC Address Table
8K
Packet Buffer Memory
4 Mbit
Jumbo Frame
15 KB
SOFTWARE FEATURES
Quality of Service
- Port-based/802.1p/DSCP QoS
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rating Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features
- Static Link Aggregation
- Loop Prevention / Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
L2 Multicast
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method
Store-And-Forward
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features
- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Unified Configuration†
OTHERS
Certification
FCC, CE, RoHS
Package Content
- ES208G
- Power Adapter
- Rubber Feet
- Installation Guide
Environment
- Operating Temperature: -5?~45? (23?~113?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
