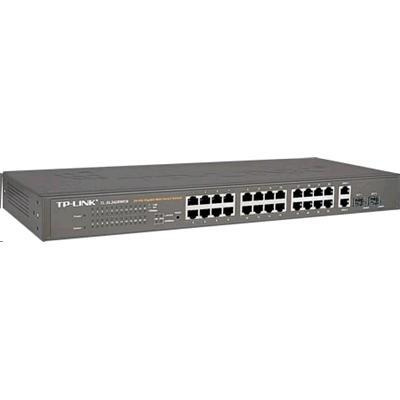

TP-Link 24-Port 10/100Mbps + 4-Port Gigabit Web Smart Switch

What This Product Does

The TP-LINK TL-SL2428WEB is a web smart switch with 24 10/100Mbps ports, 2 10/100/1000Mbps Ports, and 2 Gigabit SFP Slot supporting Mini GBIC modules. It integrates advanced management and security functions that provide performance and scalability. It delivers maximum throughput where you need it including high-performance workgroups at the edge of the network. Quality of Service (QoS) provides enhanced traffic management capabilities to ensure your data transmission smoother and faster.

Versatile Layer 2 Switching Features

Equipped with L2 features, this switch includes Port Mirroring and IEEE 802.3x Flow Control. VLAN Supported (IEEE 802.1Q, Port-Based, MTU) Network security is a top priority in any size business allowing the network to be segmented into groups (Departmental, Hierarchical, and Security Groups). It enhances the security of a network. 'Virtual Cable Test' is designed for network administrators to quickly examine the quality of the copper cables and determine the type of cable error: opens, shorts, cable impedance mismatch, bad connectors, and termination mismatch..

Quality of Service

TL-SL2428WEB supports IEEE 802.1p, applies Class of Service with 4 priority queues per port: lowest, lower, higher and highest. Now the administrator can designate the bandwidth intensive and sensitive applications with high priority to remain stable and fluid so that you don't get interrupted when you're watching a video online or lag during an Internet phone call.

Streamlined Web-based Management

In addition, an intuitive Web-browser interface offers simple smart switch management, making it easy to monitor switch performance, configures ports, even set up port trunking, VLANs, and 802.1p Priority Class prioritization.

• 24 10/100Mbps Ports, 2 10/100/1000Mbps Ports, and 2 Gigabit SFP Slots
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• Auto-MDI/MDIX eliminates the need for crossover cables
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
• Supports Store and Forward switching to maximize network performance while minimizing the propagation of bad network packets
• Quick and easy setup with web-based management
• Supports Port-Based VLANs, IEEE 802.1Q Tag VLANs and MTU VLAN
• Supports Port Trunking, 6 Trunking groups, up to 2~4 members each group
• Supports the configuration function of Port Security, Broadcast Storm Control, Port Mirroring
• Supports Static MAC address Binding
• Supports Virtual Cable Test
• Supports Static Port Priority and IEEE 802.1p Class of Service (CoS) with 4-level priority queuing
• Supports firmware upgrade, configuration backed up and restored

HARDWARE FEATURES:

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.1p

Interface

24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

1 10/100/1000Mbps Auto-Negotiation RJ45 port (Auto MDI/MDIX)

1 Gigabit SFP port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100O STP (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100O STP (maximum 100m)

1000BASE-X: MMF, SMF

Button

Reset Button

Backup Bandwidth

12.8Gbps

Packet Forwarding Rate

9.25Mpps

Mac Address Table

8k

Buffer Size

4Mb

External Power Supply

100-240VAC, 50/60Hz

SOFTWARE FEATURES:

Basic Function

MAC Address Auto-Learning and Auto-aging,

Storm Control (Broadcast, Multicast, Unknown unicast),

Port Mirroring

Transfer Method

Store-and-Forward

Priority

Port based Priority,

IEEE 802.1p based Priority: 4 Queues,

IP DSCP based Priority

Link Aggregation

Port Trunking

VLAN

Port Based VLAN,

802.1Q Tag-VLAN,

MTU VLAN

Access Control List

Based on Port,

Based on MAC
