Teltonika TSW304 4+1 Port unmanaged gigabit network switch DIN RAIL Mount /Heavy Duty Shock Resistant design (Power Supply Not Included)

PB Tech price

$ 131 .22

+GST

$ 144 .34

inc GST

Teltonika TSW304 4+1 Port unmanaged gigabit network switch DIN RAIL Mount /Heavy Duty Shock Resistant design (Power Supply Not Included)

Brand: Teltonika
MPN: TSW304
Part #: SWHTTK1304
UPC:

PB Tech price

$ 144 .34

inc GST

+GST inc GST

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Teltonika
MPN: TSW304
Part #: SWHTTK1304
UPC:

Be the first to review this product

10 Gigabit

10 Gigabit Ports

4 Ports

Form Factor

Not Specified

Management Level

Unmanaged

Number of Ports

4 Ports

Not Specified

PoE Ports

Not Specified

PoE Budget

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.

MOUNTING

Integrated DIN rail bracket and surface mounting options

COMPACT

102 x 25 x 81.5 mm

GIGABIT ETHERNET

4 x Gigabit Ethernet with speeds of up to 1000 Mbps

7-57 VDC / 9-40 VAC

Wide range of supported power supply voltages

Specifications

Ethernet

ETH

4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

Profinet

Profinet Class A conformance (available with optional order code)

Performance Specifications

Bandwidth (Non-blocking)

8 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

Power

Connector

2-pin industrial DC power socket

Input voltage range

7 - 57 VDC; 9 - 40 VAC

PoE (passive)

Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption

Idle: 0.26 W / Max: 1.44 W

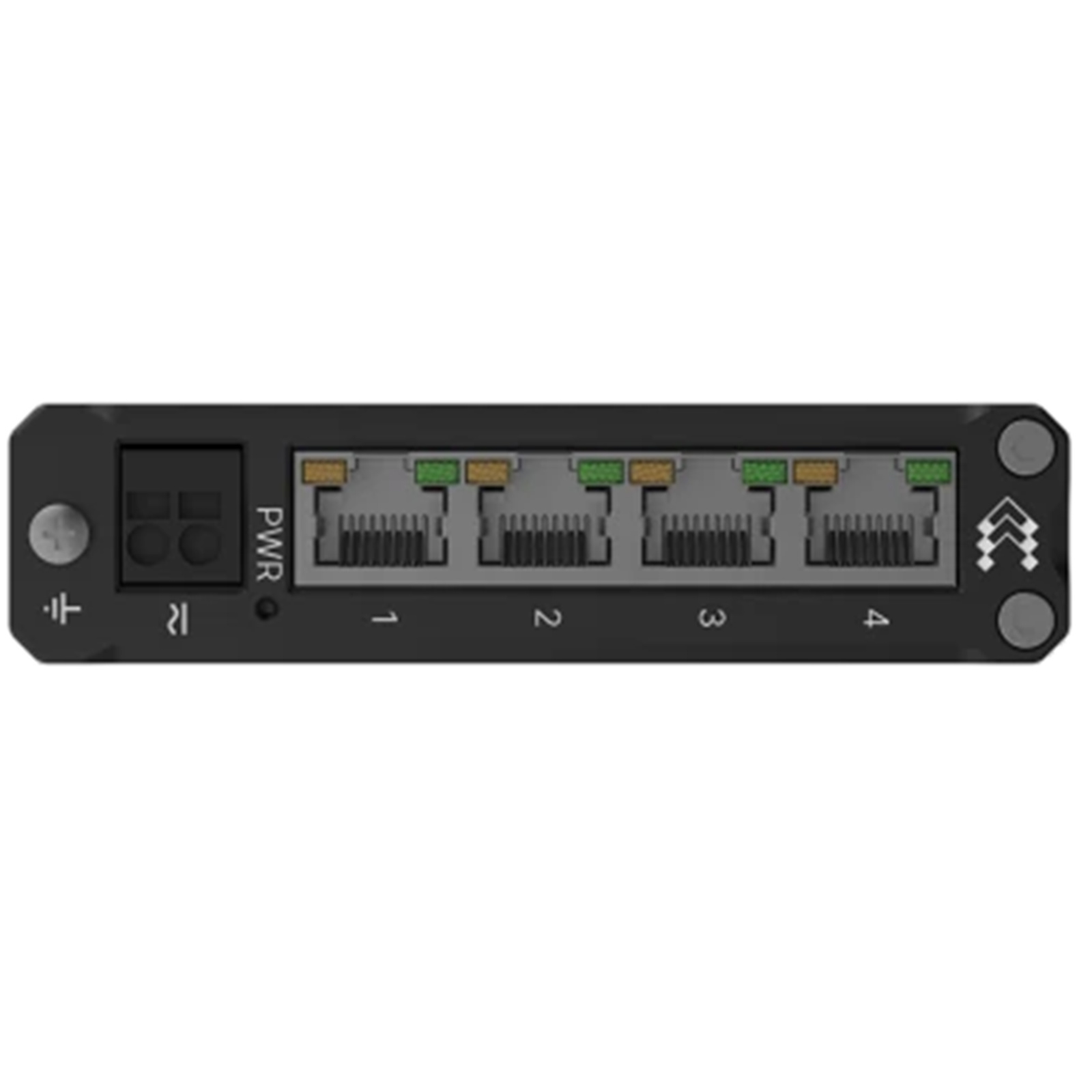

Physical Interfaces

Ethernet

4 x RJ45 ports, 10/100/1000 Mbps

Status LEDs

8 x ETH status LEDs, 1 x Power LED

Power

1 x 2-pin industrial DC power socket

Other

1 x Grounding screw

Physical Specification

Casing material

Aluminium housing

Dimensions (W x H x D)

102 x 25 x 81.5 mm

Weight

210 g

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Manufacturer Part No:

TSW304

Brand:

Teltonika

Product Type:

4+1 Port unmanaged gigabit network switch

UPC

Product Family:

Shipping Weight:

0.2717 kg

PB Part No:

SWHTTK1304

Product Model:

TSW304

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
