Winmate FM10Q 3G 32GB Android 9.0 10.4 Rugged Tablet 1024x768, PCAP touchscreen, Qualcomm 2.2 GHz CPU, WIFI, Vehicle cradle included, IP65 Wide range -30C to 50C operating temperature, Fan-Less & Robust Design
Winmate FM10Q 3G 32GB Android 9.0 10.4 Rugged Tablet 1024x768, PCAP touchscreen, Qualcomm 2.2 GHz CPU, WIFI, Vehicle cradle included, IP65 Wide range -30C to 50C operating temperature, Fan-Less & Robust Design
- Brand: Winmate
- MPN: FM10Q
- Part #: TABWMAFM10Q
- UPC:
View all shipping info
- Brand: Winmate
- MPN: FM10Q
- Part #: TABWMAFM10Q
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Winmate FM10Q 3G 32GB Android 9.0 10.4 Rugged Tablet 1024x768, PCAP touchscreen, Qualcomm 2.2 GHz CPU, WIFI, Vehicle cradle included, IP65 Wide range -30C to 50C operating temperature, Fan-Less & Robust Design
- Brand: Winmate
- MPN: FM10Q
- Part #: TABWMAFM10Q

Product URL: https://www.pbtech.com/au/product/TABWMAFM10Q/Winmate-FM10Q-3G-32GB-Android-90-104-Rugged-Tablet
Features
High Performance Qualcomm® Snapdragon™ CPU
The Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU platform delivers powerful computing performance while being power efficient and also includes long-term extended support to reduce maintenance and ensure the reliability of the CPU platform for years to come.

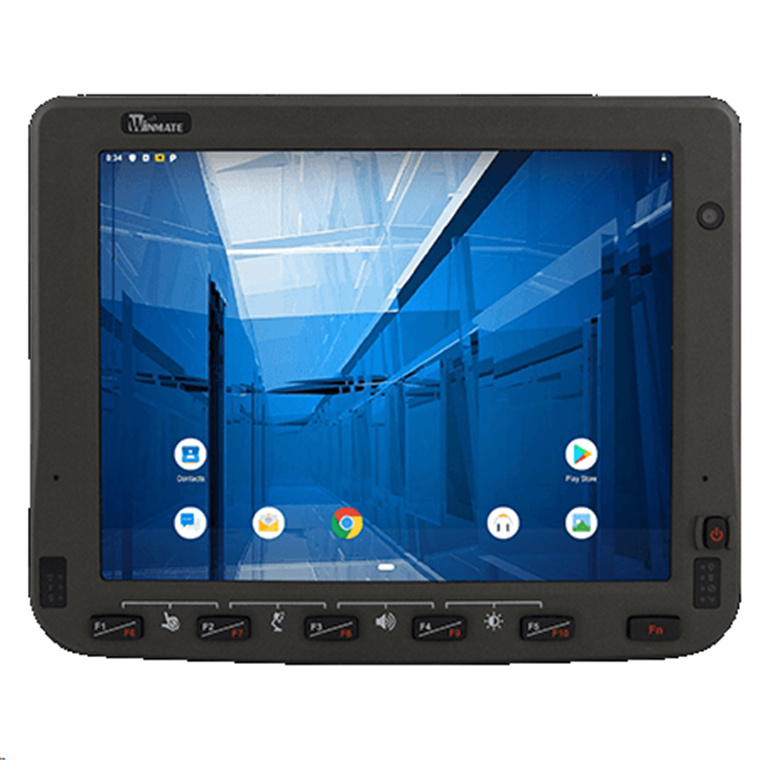

10.4" Compact Housing with Anti-scratch P-Cap Multi-touch Screen
Thanks to the compact form factor, vehicle operators maintain unobstructed line-of-sight during operations so as to increase efficiencies and minimize errors. The screen boasts P-Cap technology and anti-scratch properties to deliver an excellent multi-touch experience with better environmental resistance.
Magnesium Aluminum-Alloy Housing with MIL-STD-810G Vibration & Shock Resistant and IP65 Water & Dust Proof
When it comes to industrial usage, the device that is rugged enough to survive harsh environments is a must. The FM10Q's durability is proven by its solid enclosure with MIL-STD-810G certification and IP65 rating.
Built-in Backup Battery
The FM10Q contains a backup battery (minimum 30 minutes) that enables the device to be seamlessly swappable from one dock to another, keeping your tasks going on without interruption.
Rich I/O Ports
Ships with rich I/O interfaces to support multiple onboard peripherals, the FM10Q delivers a steady output, impressive extendibility and maximum efficiency for either in-vehicle or field operations.
Specifications
Display
Size
10.4 inches
Resolution
1024x768
Type
Projected Capacitive Multi Touch
Panel Brightness
400 nits
800 nits(Optional)
Contrast Ratio
1200:1
View Angles
88,88,88,88
Touch Mode
With Stylus Support
With Gloves Support
System Specification
Processor
Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
Memory
3GB
Storage
32GB
Operating System
Android 9.0
WLAN
Support
BT
Support
WWAN
4G/LTE (Optional)
GNSS
GPS/GLONASS
Sensors
G-Sensor, Temp. Sensor
Camera
Front Camera
2MP Camera
Mechanical
Dimension
Tablet: 268 x 214 x 35 mm (10.6 x 8.42 x 1.37 inches)

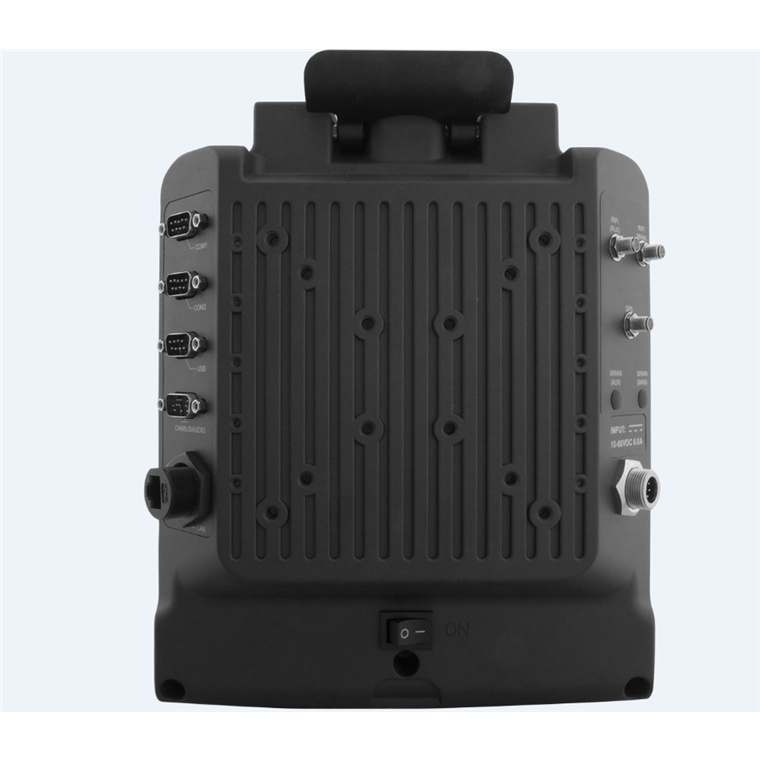

Docking: 202 x 245 x 52 mm (7.9 x 9.6 x 2.04 inches)
Housing
Magnesium Alloy Housing
Weight
Tablet 1.7 kg (3.75 lbs)
Docking 1.6 kg (3.53 lbs)
Mounting
RAM Mount/ Vesa Mount
Cooling System
Fanless Design
IO Ports
USB Port
1 x USB 3.0 Type C (OTG)(Tablet)
1 x DB9 Connector for 2 x USB 2.0 Port(Docking)
Serial Port
2 x COM Port(Docking)
LAN
1 x Gigabit LAN port(Docking)
Audio
2 x Speaker(Docking)
1 x CANBus or 1 x Audio(Docking)
SD Card Slot
1 x Micro SD Card Slot(Tablet)
SIM Card Slot
1 x Dual-Nano SIM Card Slot(Tablet)
Indicator
4 x LED Indicator
(Wi-Fi, BT, UPS battery, HDD, Screen Blanking, Heater)
Environment
Operating Humidity
5% to 95% RH, Non-Condensing
Operating Temperature
-30°C to 50°C
Storage Temperature
-30°C to 70°C
Shock
MIL-STD-810G Method 516.6 Procedure I
Vibration
MIL-STD-810G Method 514.6 Procedure I
IP rating
IP65 Certified, Waterproof and Dustproof
Impact
Support EN62262 IK07 Rating
ESD
Compliant with EN 61000-4-2,
Enhanced ESD to ±8kV Direct & ±15kV Air
Control
Button
1 x Power Button, 6 x Function Button
(Programmable Function Key Configured by Winset)
Power
Battery
7.6V UPS Battery (2S1P)
Minimum 30 minutes
Power Rating
Docking: 10V-60V with ignition control, Tablet: 12V DC In
