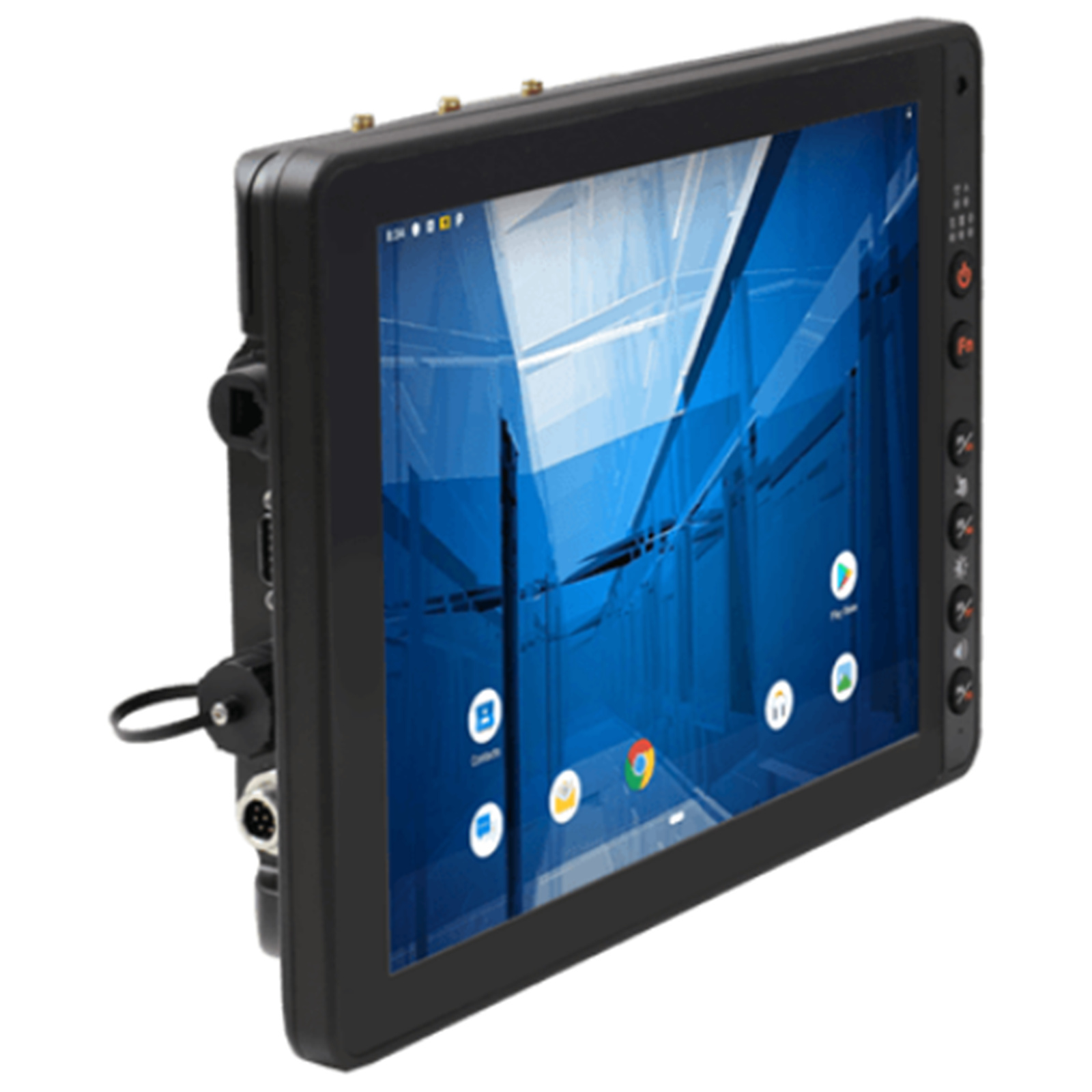

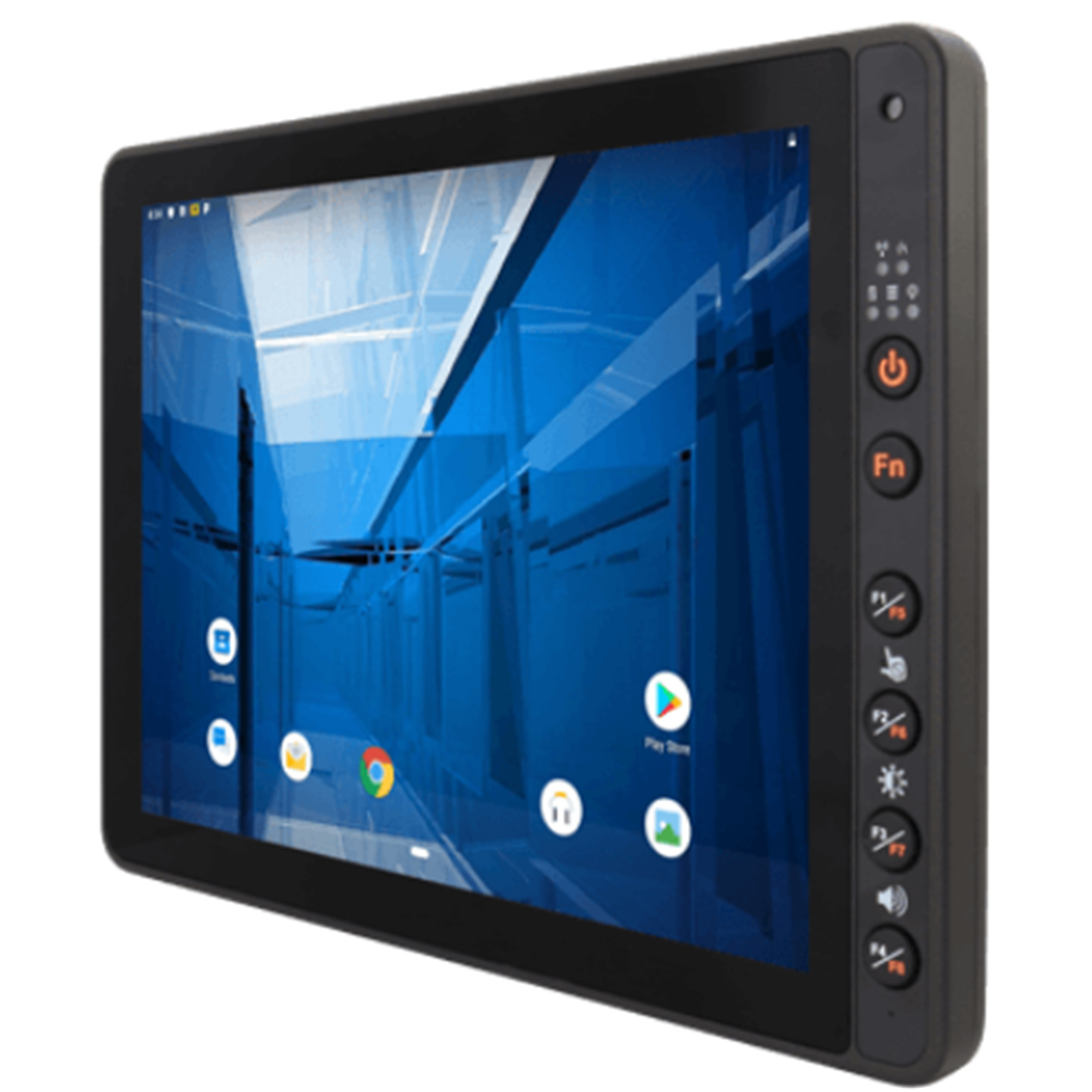

Winmate FM12Q-V 3G/32GB Android 9.0 12.1" Vehicle Computer 1024x768, PCAP touchscreen Qualcomm Snapdragon 660 2.2GHz processor, BT/WLAN, IP65 Wide range -30C to 50C operating temperature, Fan-Less & Robust Design, RAM Mount/VESA Mount

PB Tech price
PB Tech price
$ 2,755 .20
 +GST
$ 3,030 .72
 inc GST
$2,755.20  +GST
$3,030.72

Winmate FM12Q-V 3G/32GB Android 9.0 12.1" Vehicle Computer 1024x768, PCAP touchscreen Qualcomm Snapdragon 660 2.2GHz processor, BT/WLAN, IP65 Wide range -30C to 50C operating temperature, Fan-Less & Robust Design, RAM Mount/VESA Mount

  • Brand: Winmate
  • MPN: 98P012A0009Q standard
  • Part #: TABWMAFM12QV
  • UPC:
PB Tech price
$ 2,755 .20 $ 3,030 .72
 +GST  inc GST


Delivery: Order now and it ships tomorrow
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$2,755.20  +GST
$3,030.72

Features

12.1inch Android Vehicle Computer with Qualcomm Snapdragon™ 660

- Qualcomm Snapdragon™ 660 octa­core, 2.2 GHz CPU
- 12.1" 1024 x 768 Panel with PCAP Touch, Android vehicle computer
- IP65 waterproof and dustproof
- Wide power input 10-60V DC with ignition
- Wide range operating temperature
- Support VESA Mount

Vibration and shock-proof design ensure reliable performance

When it comes to industrial usage, Winmate FM12Q-V that is rugged enough to survive harsh environments is a must. Its solid enclosure proves the FM12Q-V's durability with MIL-STD-810H certification and IP65 rating.

PCAP Touch Screen

The FM12Q-V features a compact panel with a PCAP touch screen. Resistant to dirt, debris, and highly sensitive touch commands make you enjoy every touch and convenience of using the device.

High-Performance CPU

To support the next generation of IoT edge devices, FM12Q-V has developed a new line of processors enhanced for IoT-Qualcomm Snapdragon™ 660 Series processors. These processors build on new levels of CPU, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.

Reliable computing under extreme operating temperatures

Low-power components of industrial computers prevent overheating and are less likely to achieve high temperatures in the first place.

Specifications

Display

Size

12.1 inches

Type

Projected Capacitive Multi Touch

Resolution

1024x768

Panel Brightness

400 nits

Contrast Ratio

1000:1

View Angles

89,89,89,89

Touch Mode

Support Hand, Stylus, Glove Mode

System Specification

Processor

Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)

Memory

3GB

Storage

32GB

Operating System

Android 9.0

WLAN

Support

BT

Support

WWAN

4G/LTE (Optional)

GNSS

GPS/GLONASS (Optional)

Sensors

G-Sensor, Temp. Sensor

Camera

Front Camera

2MP Camera

Mechanical

Dimension

307 x 225 x 57 mm

Weight

2.5 kg

Mounting

RAM Mount/ VESA Mount

Cooling System

Fanless Design

IO Ports

USB Port

1 x USB 3.0 Type C (OTG)
1 x USB 2.0 Port

Serial Port

2 x RS232/422/485 (Default RS232)

LAN

1 x Gigabit LAN port
PSE (IEEE 802.3at 30W) (Optional)

Audio

1 x Audio(Mic in & Line Out) either one with DIDO (Optional)

SD Card Slot

1 x Micro SD Card Slot

SIM Card Slot

1 x Dual-Nano SIM Card Slot

Indicator

3 x LED Indicator
(WLAN, UPS battery, Heater)

DIDO

1 x DIDO (2XDI ; 2XDO) either one with Audio (Optional)

CANBUS

1 x CANBus (Optional)

Environment

Operating Humidity

5% to 95% RH, Non-Condensing

Operating Temperature

-30°C to 50°C

Storage Temperature

-30°C to 60°C

Shock

MIL-STD-810H Method 516.8 Procedure I

Vibration

MIL-STD-810H Method 514.8 Procedure I

IP rating

IP65

Impact

Support EN62262 IK07 Rating

ESD

Compliant with EN 61000-4-2,
Enhanced ESD to ±8kV Direct & ±15kV Air

Control

Button

1 x Power Button, 5 x Function Button
(Programmable Function Key Configured by Winset)

Power

Battery

400mAh UPS Battery for 20 minutes backup (Optional)

Power Rating

10V~60V with ignition control

Manufacturer Part No:
98P012A0009Q standard
Brand:
Product Type:
12.1" Vehicle Computer
UPC
-
Product Family:
FM12Q-V
Shipping Weight:
1.8 kg
PB Part No:
TABWMAFM12QV
Product Model:
3G/32GB Android 9.0
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
