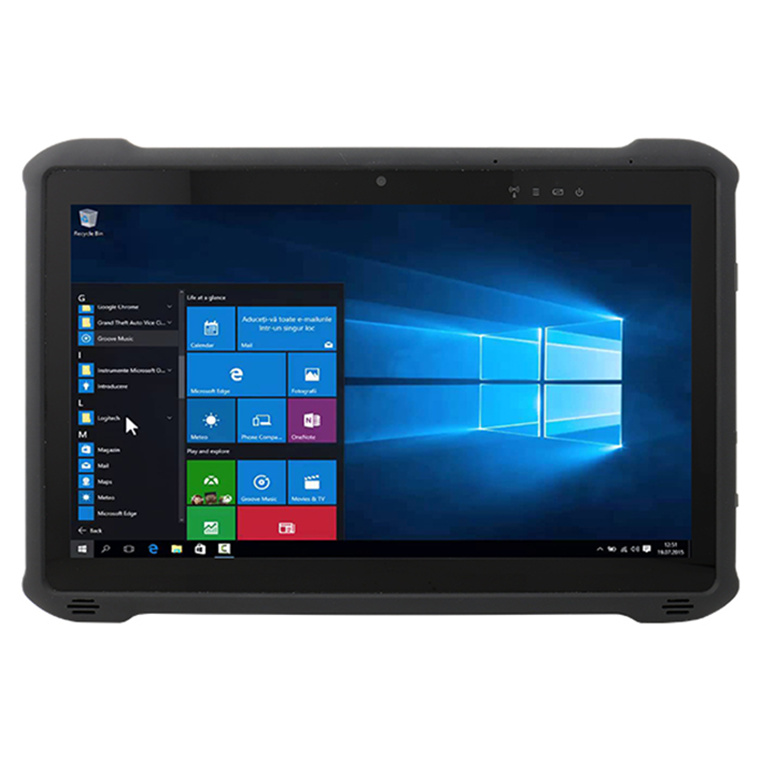

Winmate M116K 8G 256GB Win 10 IoT 11.6" Rugged Tablet 1920x1080 Intel Core i5 7300U 2.5GHz, with P-Cap touch, 2D Barcode Scanner, 10280 mAh Li-P Battery, with WiFi/BT/GPS GNSS: GPS, GLONSS, Front :2M Rear :8M camera

Normally $3,913.34
Normally $4,304.67
You save $251
You save $277
$ 3,661 .40
 +GST
$ 4,027 .54
 inc GST
$3,661.40  +GST
$4,027.54

Winmate M116K 8G 256GB Win 10 IoT 11.6" Rugged Tablet 1920x1080 Intel Core i5 7300U 2.5GHz, with P-Cap touch, 2D Barcode Scanner, 10280 mAh Li-P Battery, with WiFi/BT/GPS GNSS: GPS, GLONSS, Front :2M Rear :8M camera

  • Brand: Winmate
  • MPN: M116K-BH
  • Part #: TABWMAM116KBH
  • UPC:
FREE SHIPPING
Normally $3,913.34
Normally $4,304.67
You save $251
You save $277
PB Tech price
$ 3,661 .40 $ 4,027 .54
 +GST  inc GST


Delivery: Order now and it ships on 24 Jun
Estimated Delivery Times
NSW, VIC, ACT, QLD - Within 4-8 working days
SA, WA, TAS, NT - Within 8-12 working days

View all shipping info
$3,661.40  +GST
$4,027.54

Features

M116K

11.6" Intel® Core™ i5-7300U Rugged Tablet

- Intel® Core™ i5-7300U Kaby Lake 2.60GHz (Turbo up to 3.5GHz)
- 11.6" 1920 x 1080 LED panel with direct optical bonding
- IP65 water and dust proof with MIL-STD-810G rugged housing
- Optional Integrated 1D/2D Barcode Reader and HF RFID for data collection
- Removable battery with hot-swap function for all day productivity

Mobile Rugged Design

The M116K is designed for mobile rugged use, withstanding shock, vibration, and can be operated at a wide temperature of -20°C to 60°C, allowing the tablet to be used in harsh environments for industrial and military use. With an IP65 rating, the device is dust-tight and can withstand water jet against the device enclosure. So, it can also be easily wiped cleaned to reduce the spread of infection for medical use.



Multi-touch Projected Capacitive Touch

The minimum 10-point Multi-touch PCAP Touch technology allows users to switch windows, take snapshots, zoom in and rotate easily to take full advance of the Windows 10 IoT touch interface.



Sunlight Readable Wide-Angle Panel

 M116K offers an 11.6" 1920x1200 LED high resolution, high brightness display, perfect for viewing under different conditions.



CPU Designed for Tablets

The series is offered with the latest Intel's Kaby Lake and Apollo Lake processors to provide high performance and low power consumption, providing extended battery life. It supports with Windows® 10 IoT Enterprise operating system to fulfill the increasing requirement in industrial applications and provides an alternative solution for those between general consumer and extremely rugged applications.



Multiple Data Collection Methods, Real-time Data Connectivity

Real-time data access to the right information is critical to mobile users. M116K supports 4G/LTE, GPS, WiFi, BT to allow users to connect in the way that best suits their needs. Apart from the 2MP front camera and 8MP rare camera, the M116K is 1D/2D Barcode Reader, HF RFID Reader, and the add-on module for UHF RFID Reader and Smart Card Reader configurable.

Specifications

Display

Size

11.6 inches

Resolution

1920x1080

Type

Projected Capacitive Multi Touch

Panel Brightness

850 nits

Contrast Ratio

1000:1

View Angles

89,89,89,89

Bonding

Optical Bonding for Sunlight Viewability

Viewability

Anti-Glare touch treatment

Touch Mode

Hand/Rain, Glove, Stylus

System Specification

Processor

Intel® Core™ i5-7300U Kaby Lake 2.60GHz (Turbo up to 3.5GHz)

Memory

8GB DDR4 SDRAM 1

Storage

256GB SSD
Additional storage available with micro SDXC card slot

Ethernet controller

1 x RJ45-10/100/1000 GigaLAN port (Optional)

Security

Trusted Platform Module (TPM) 2.0
Kensington Lock

Operating System

Windows 10 IoT Enterprise (64 bit)

WLAN

802.11 a/b/g/n/ac

BT

BT Support

WWAN

-

GNSS

GPS, GLONASS

RFID

-

Sensors

Light sensor/ g-sensor / Gyro / E-compass

Camera

Front Camera

2MP front camera

Rear Camera

8MP rear camera with autofocus and LED light

Mechanical

Dimension

300.67 x 201.97 x 22.5 mm

Weight

1.5kg

Cooling System

Fan design

IO Ports

USB Port

1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)

LAN

1 x RJ45-10/100/1000 GigaLAN port

Video

-

Audio

1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation

SD Card Slot

1 x Micro SDXC slot

SIM Card Slot

-

Indicator

4x LED Indicator for Power, Battery, HDD, RF status

mini PCIe

1 x Mini PCIe for WWAN Module

Docking Connector

1 x 19-pin docking connector

Environment

Operating Humidity

10% to 90% RH, non-condensing

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 70°C

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft

IP rating

IP65 certified, dustproof and waterproof

Certification

Certification

CE, FCC

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Kensington Lock

Kensington Lock Support

Control

Button

1 x Power,3 x function keys

Power

Battery

7.4V typ. 10280 mAh Li-Polymer Battery (2S2P)

Battery Operating Time

Standard Battery: 8 hours

Power Rating

19V DC

Adapter

100-240V, 50-60Hz (19V DC)

Accessory

Accessory

Adapter and Power Cord
Capacitive Stylus
Standard Battery

Optional Accessory

Desk Dock (Optional)
Vehicle Dock (Optional)
Vehicle Cradle (Optional)
Vehicle Charger (Optional)
Battery Charger (Optional)
High Capacity Battery (Optional)
Hand Strap (Optional)
VESA Mount Kit (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)

Barcode Scanner

Barcode Scanner

2D barcode reader

Manufacturer Part No:
M116K-BH
Brand:
Product Type:
11.6" Rugged Tablet
UPC
-
Product Family:
M116K
Shipping Weight:
1 kg
PB Part No:
TABWMAM116KBH
Product Model:
8G 256GB Win 10 IoT
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
