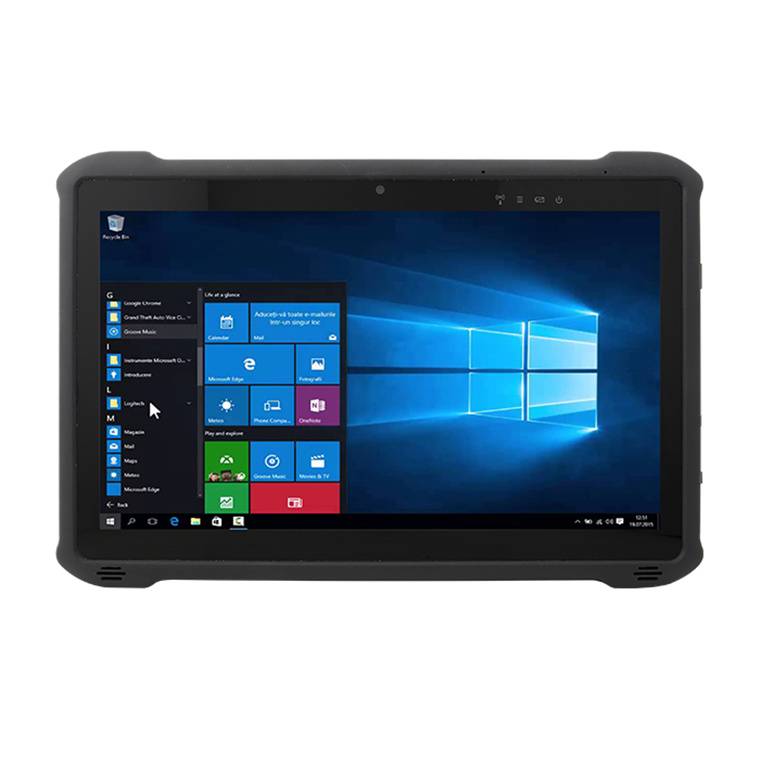

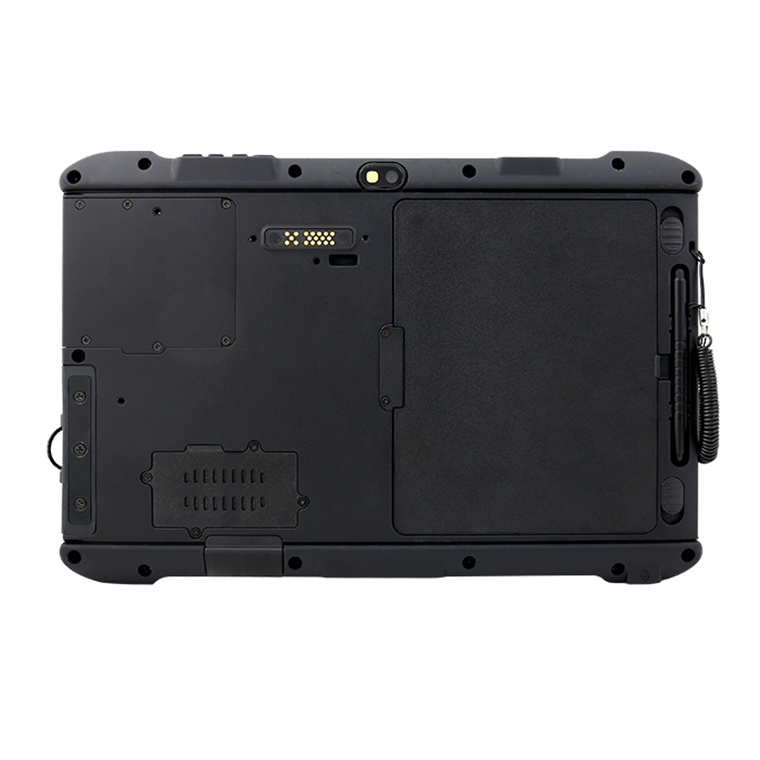

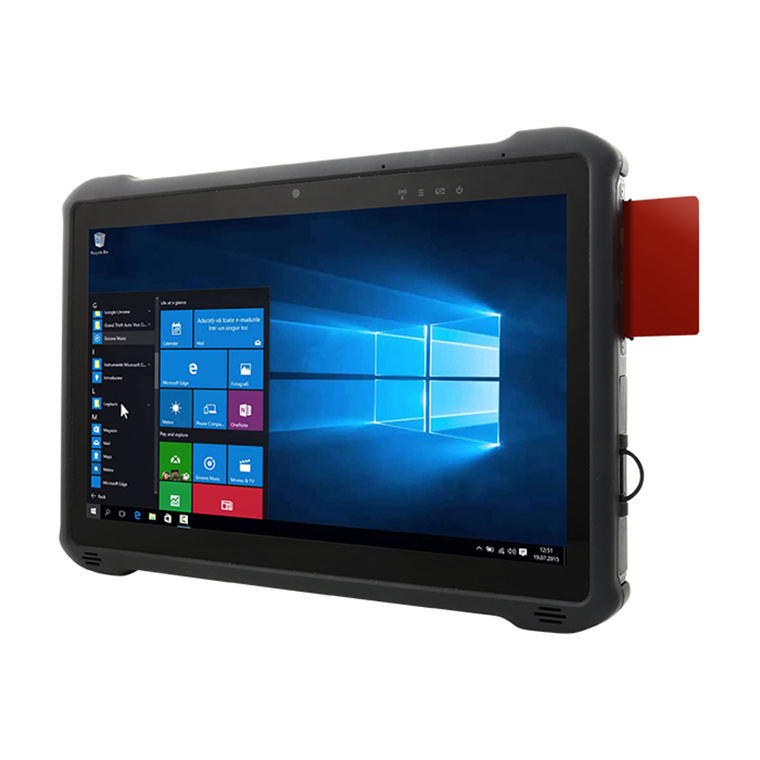

Winmate M116K Rugged Tablet 11.6 P-Cap touch 16G/512GB/LTE win10 IoT 1920x1080 Intel Core i5 7200U with WiFi/BT/GPS GNSS: GPS, GLONSS,Front :2M Rear :8M with7.7V typ. 5900 mAh Li-Polymer Battery

PB Tech price
PB Tech price
$ 4,456 .79
 +GST
$ 4,902 .47
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Winmate M116K Rugged Tablet 11.6 P-Cap touch 16G/512GB/LTE win10 IoT 1920x1080 Intel Core i5 7200U with WiFi/BT/GPS GNSS: GPS, GLONSS,Front :2M Rear :8M with7.7V typ. 5900 mAh Li-Polymer Battery

  • Brand: Winmate
  • MPN: M116KX
  • Part #: TABWMAM116KX
  • UPC:
PB Tech price
$ 4,456 .79 $ 4,902 .47
 +GST  inc GST


Delivery: Out of stock
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Features

11.6" Rugged Tablet M116K

- Intel® Core™ i5-7200U Kaby Lake 2.5GHz (Turbo up to 3.1GHz)
- 11.6" 1920 x 1080 LED panel with direct optical bonding
- IP65 water and dust proof with MIL-STD-810G rugged housing
- Optional Integrated 1D/2D Barcode Reader and HF RFID for data collection
- Removable battery with hot-swap function for all day productivity
- WiFi, BT, 4G LTE, GPS
- Optional GigaLAN Port on board

Specifications

Display Specifications

Size

11.6"

Brightness

850 nits

Resolution

1920 x 1080 Full HD

Contrast Ratio

1000:1

Touch

Projected capacitive multi-touch

Viewing Angle

89/89/89/89

Panel Viewability

Direct optical bonding for sunlight viewability

System Specification

Processor

Intel® Core™ i5-7200U Kaby Lake 2.5GHz (Turbo up to 3.1GHz)
Optional Intel® Core™ i5-7300U Kaby Lake 2.60GHz (Turbo up to 3.5GHz)

Memory

16GB DDR4 SDRAM 1 (up to 16GB)

Storage

512GB SSD (up to 512GB)
Additional storage available with micro SDXC card slot with microSDXC card slot

Wireless Communication

WLAN

802.11 a/b/g/n/ac WiFi

BT

BT 5.0

WWAN

4G LTE

GPS

GPS, GLONASS

I/O Connectors

Audio

Built-in dual digital mic with noise cancellation
2 x 1 watt front-facing speakers

I/O

1 x 19-pin docking connector
1 x micro HDMI
1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
1 x Power Jack
1 x Micro SDXC slot
1 x Audio combo connector (Mic in or Line Out)
1 x RJ45-10/100/1000 GigaLAN port (Optional)
1 x Expansion connector for USB 2.0/ Full RS232 (Optional)
1 x Micro SIM card slot
1 x Mini PCIe for WWAN Module

In front Control

Control Button

1 x Power
3 x function keys

LED indicator

Power, Battery, HDD, RF

Mechanical and Environment

Dimensions (W x L x H)

300.67 x 201.97 x 22.5 mm

Net Weight (kg)

1.4 kg

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

IP Proof

IP65

Operating Humidity

10% to 90% RH, non-condensing

Certifications

CE, FCC

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft

Power Management

Power Input

19V DC

Battery

Hot-swappable 7.7V typ. 5900 mAh Li-Polymer Battery (2S1P)
Optional 7.4V typ. 10280 mAh Li-Polymer Battery (2S2P)

Adapter

100-240V, 50-60Hz (19V DC)

Battery Operating Time

Std. Battery: 8 hours

Product Specification

OS

Windows 10 IoT Enterprise (64 bit)

RFID

Optional HF RFID reader 13.56 MHz

Barcode

Optional 1D/2D Barcode Reader

Camera

2MP front camera
8MP rear camera with autofocus and LED light

Security

Security

Trusted Platform Module (TPM) 2.0
Kensington Lock

Mobile Device Management

SOTI Mobicontrol compatible

Manufacturer Part No:
M116KX
Brand:
Product Type:
16G/512GB/LTE win10 IoT
UPC
-
Product Family:
M116K Rugged Tablet
Shipping Weight:
2.6 kg
PB Part No:
TABWMAM116KX
Product Model:
11.6 P-Cap touch
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
