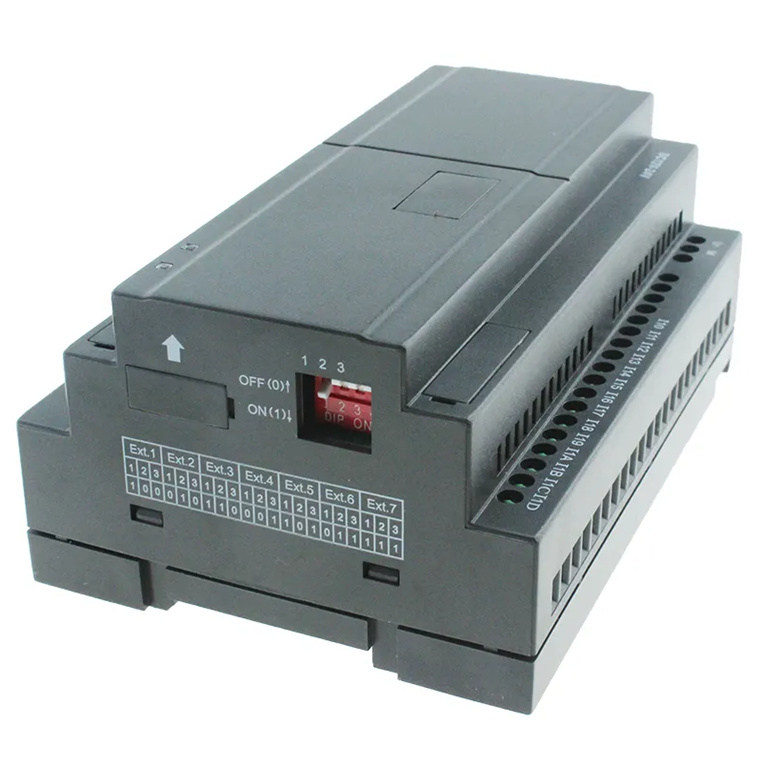

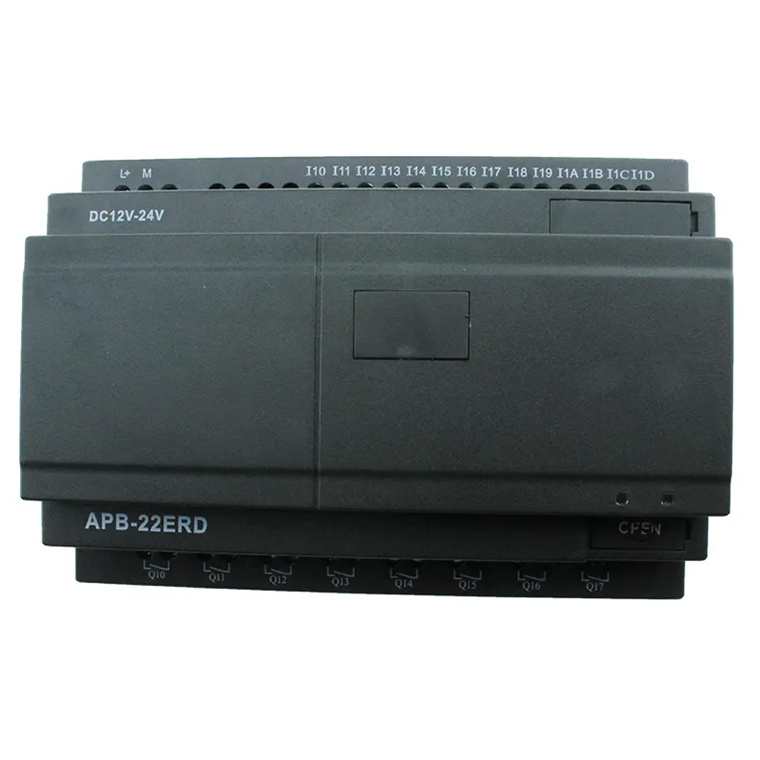

Array APB-22ERD PLC DC12V-24V extension module 14 points digital input 8 points relay output
- Brand: Array
- MPN: APB-22ERD
- Part #: TOLARR1005

Product URL: https://www.pbtech.com/au/product/TOLARR1005/Array-APB-22ERD-PLC-DC12V-24V-extension-module-14
Features
The APB-22ERD PLC extension module supports 14 digital inputs and 8 relay outputs with a DC12V-24V range, offering reliable surge immunity (2kv common mode, 1kv differential mode) and electrostatic discharge protection (±8kv air, ±6kv contact). It features high-speed operation (4 inputs at 10KHz, 2 outputs at 50KH z), analog signal support (12 voltage, 2 current inputs, and 2 outputs), real-time clock functionality, and password protection. The module operates in temperatures from -10°C to +55°C and includes versatile communication interfaces (TTL, RS485, RS232) with MODBUS RTU protocol.
Specifications
Model
APB-22ERD
Surge Immunity
2kv (common mode), 1kv (differential mode), Level 3 (IEC61000-4-5)
Electrostatic Discharge (outer casing)
±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)
Ambient Temperature
-10°C~+55°C
Storage Temperature
-40°C~+70°C
Ambient Humidity
5%~95%RH
Degree of Protection
IP20 (Non-waterproof)
Installation
Fixing with M3 screws or Standard DIN rail mounting
Programming Language
FBD
Memory Capacity
320 FBDs
Filtering Duration of Input Signal
It can be set to improve the stability of signal
Real-time Clock
160h,can place a Li-ion battery if it is necessary
Password Protection
Multiple passwords protection
High-speed Operation
At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 50KHz
Analog Operation
At most 12 voltage 0-10V and 2 current 0/4-20mA analog inputs, and 2 analog outputs 0/4-20mA
Power Failure Protection
Yes
Simulate Monitoring
Yes
Communication Interface
TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces
Baud Rate
9600bps
Communication Protocol
MODBUS RTU
