Features

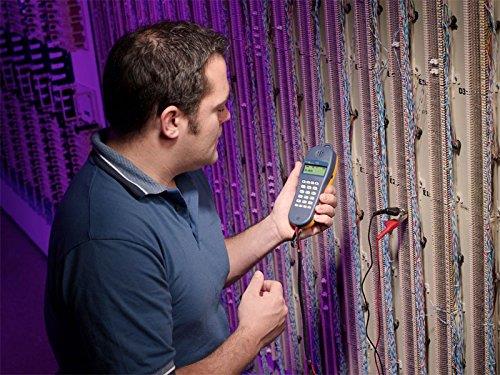

This new, feature-rich test set is a necessity for all central office technicians. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tones without downing DSL.
A built-in tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The Talk Battery function provides voltage to carry voice conversation on non-powered pairs.
All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sense menus easy to read and use.
- TS25D Test Set with ABN Cord
- Caller ID and call-waiting caller ID (on N. American phone systems)
- Data lockout and data lockout override
- DSL/POTS filtering technology lets you safely draw dial tone from a pair that is carrying voice and ADSL without downing the ADSL service
- Built-in analog tone generator for tracing and identifying wires with a probe
- DTMF digit-grabbing capability
- Talk battery to supply power to non-powered (dry) pairs to carry voice conversation
- Row/column tones for single-tone dialing
- High voltage Lockout/Low voltage Lockout
- Continual data detection in monitor mode
- Over-voltage and current protection
- Amplified speaker for hands-free monitoring
- Programmable phonebook stored in non-volatile memory
- Speed dial (10 memories, 23 digits each)
- Selectable flash and pause duration
- Battery level indicator
- Battery included
Specifications
Electrical
Return loss
>14 dB (ref 600 ohms)
Current range (off-hook)
10 to 100 mA
DC resistance
Off-hook
150 O nominal
On-hook
>1 M O
AC impedance
Off-hook
600 O nominal; 300-3400Hz
On-hook
>120 k O; 300-3400 Hz
Rotary dial output
Pulsing rate
10 pps ±1 pps
Break/make ratio
60/40
Interdigit interval
>300 ms
Resistance during break
>100 kO
DTMF output
Tone frequency error
±1.5 % maximum
Tone level
-1.5 dBm combined (typical)
High versus low tone difference
2 dB ± 2 dB
Memory capacity
10 speed dial memories
Plus one last number redial memory
Digit capacity
23 digits per memory
Pause duration
User programmable; default = 4 seconds
Hook flash duration
User programmable; default = 600 ms
Automatic speaker
User programmable;
Shut-off duration
default = 5 minutes
Battery
9 volt alkaline or lithium battery
