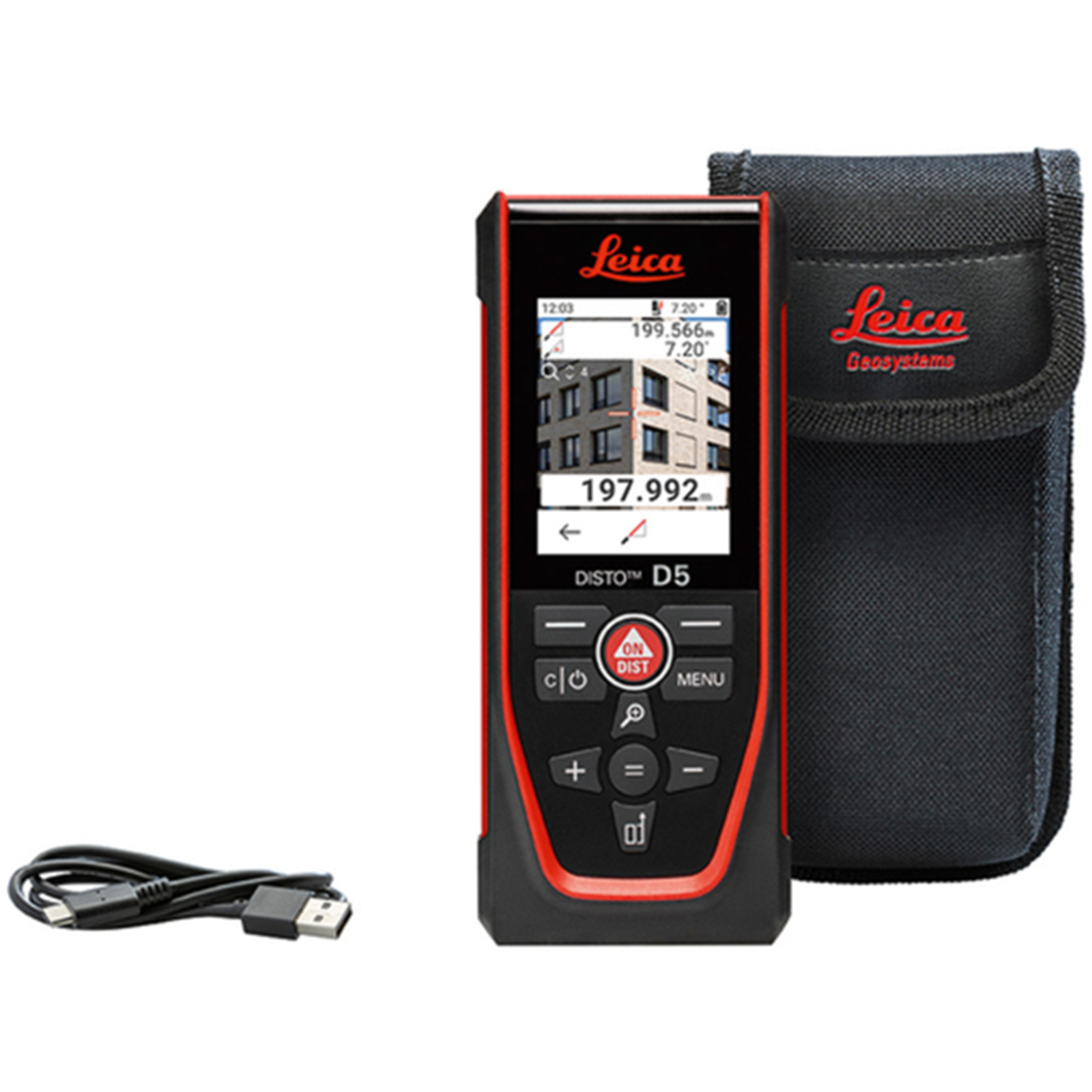

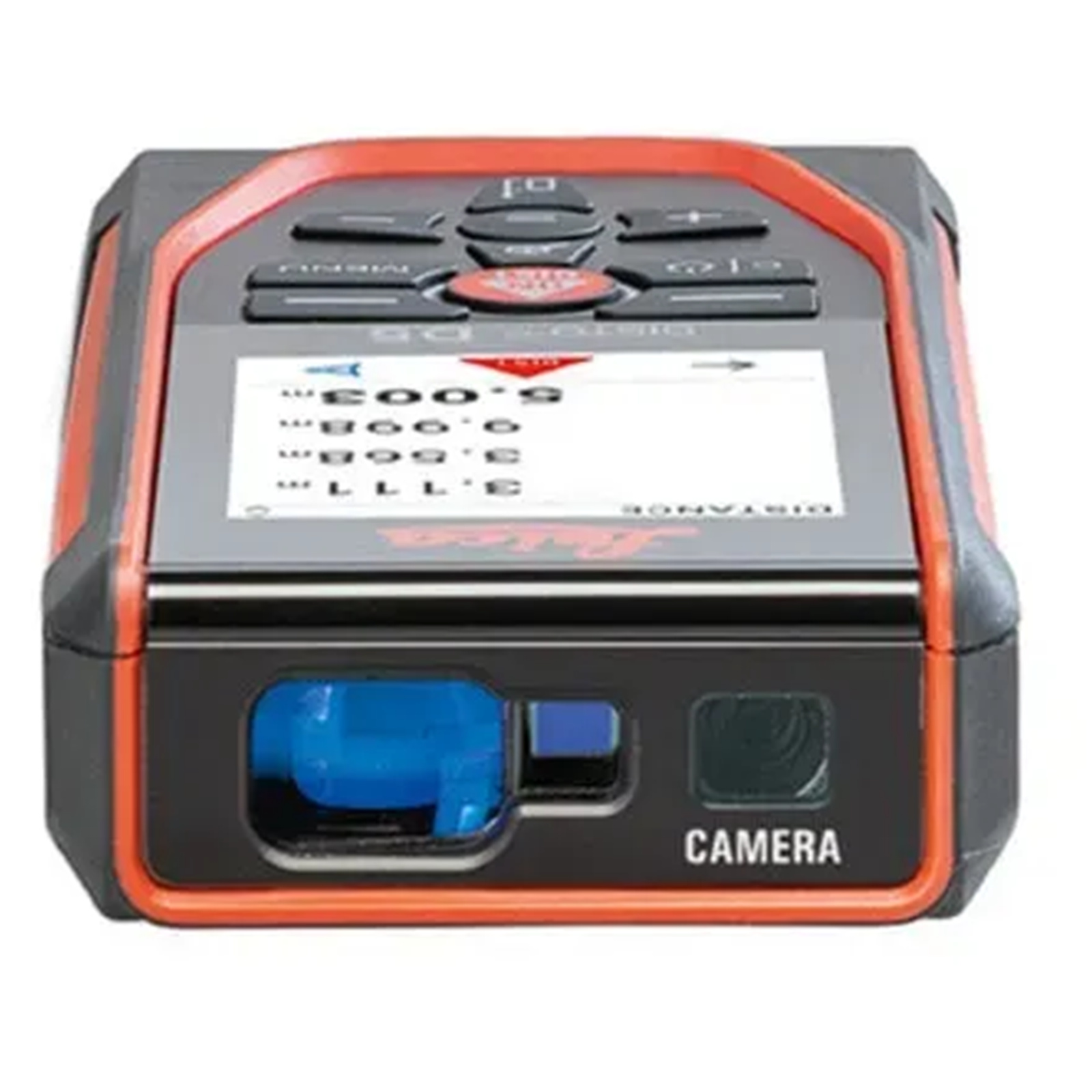

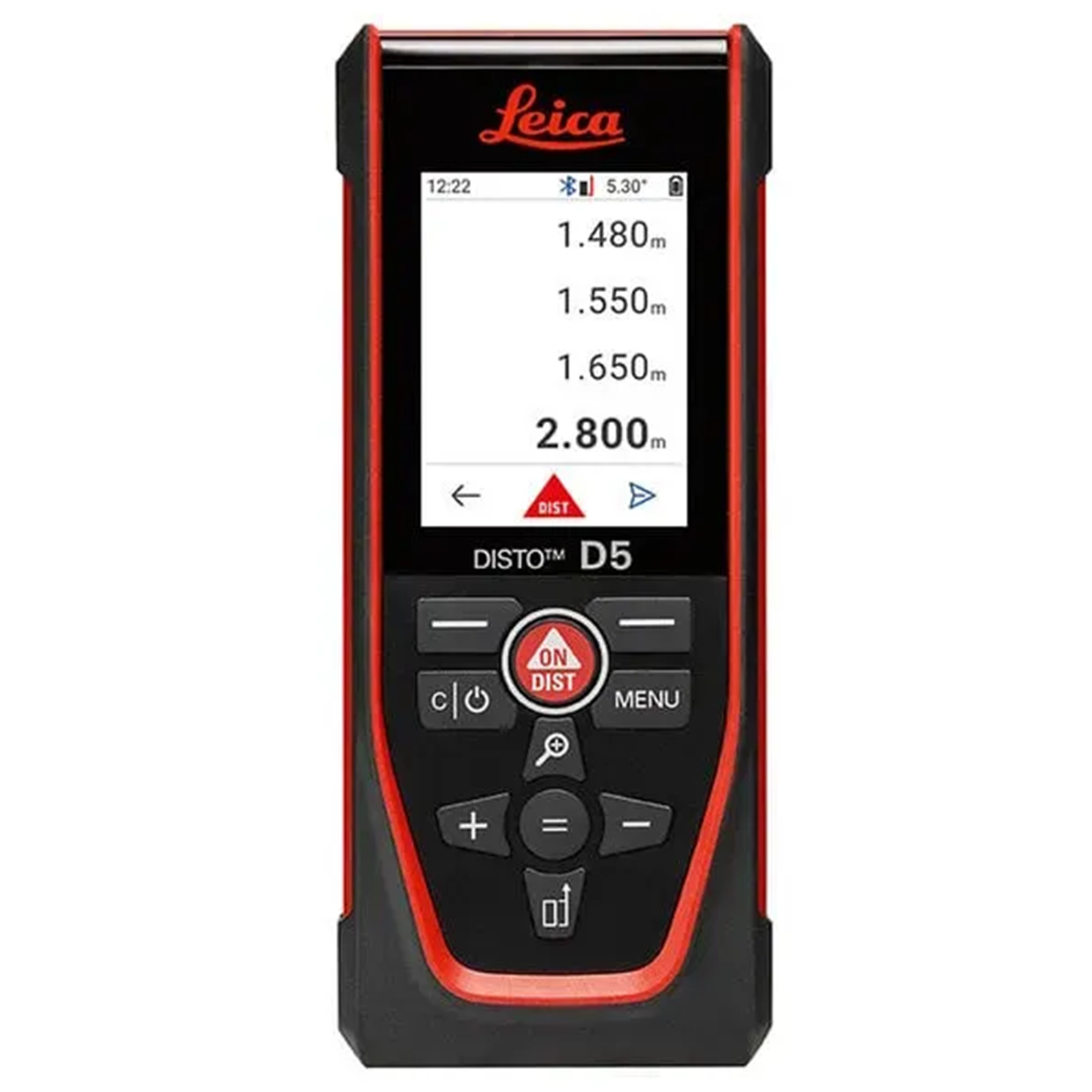

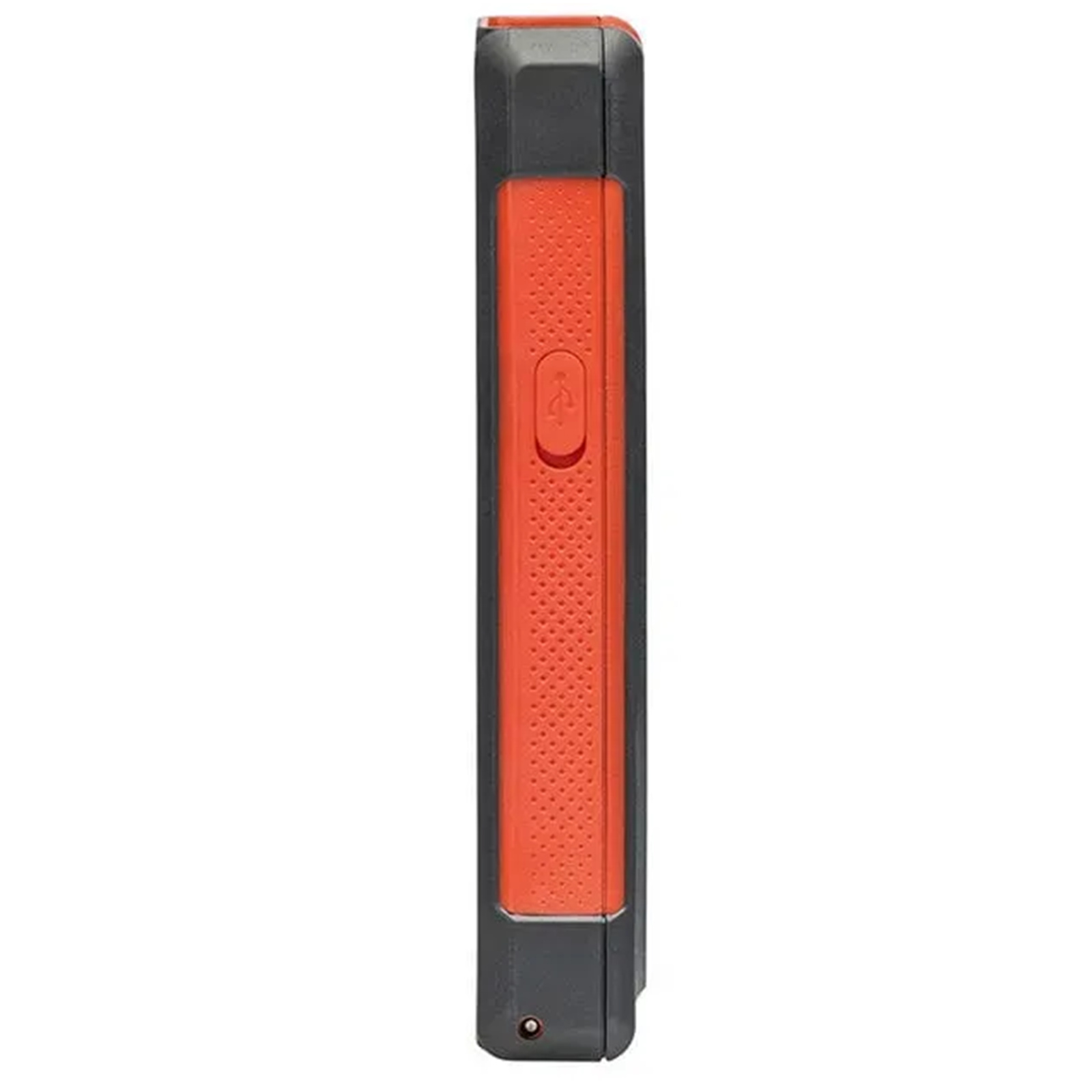

Leica Disto D5 Laser Distance Meter Range up to 200 m, 1.0 mm accuracy, 0.1 mm resolution, Measuring slopes

PB Tech price

$ 766 .47

+GST

$ 843 .12

inc GST

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Leica Disto D5 Laser Distance Meter Range up to 200 m, 1.0 mm accuracy, 0.1 mm resolution, Measuring slopes

Brand: Leica
MPN: LG950908
Part #: TOLLEC950908
UPC:

CLEARANCE

PB Tech price

$ 843 .12

inc GST

+GST inc GST

Hurry, only 1 unit left!

In stock

Delivery: Order now and it ships on 09 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Leica
MPN: LG950908
Part #: TOLLEC950908
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology. For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.

- Range up to 200 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measuring slopes
- Smart Horizontal Mode
- Fast start-up time

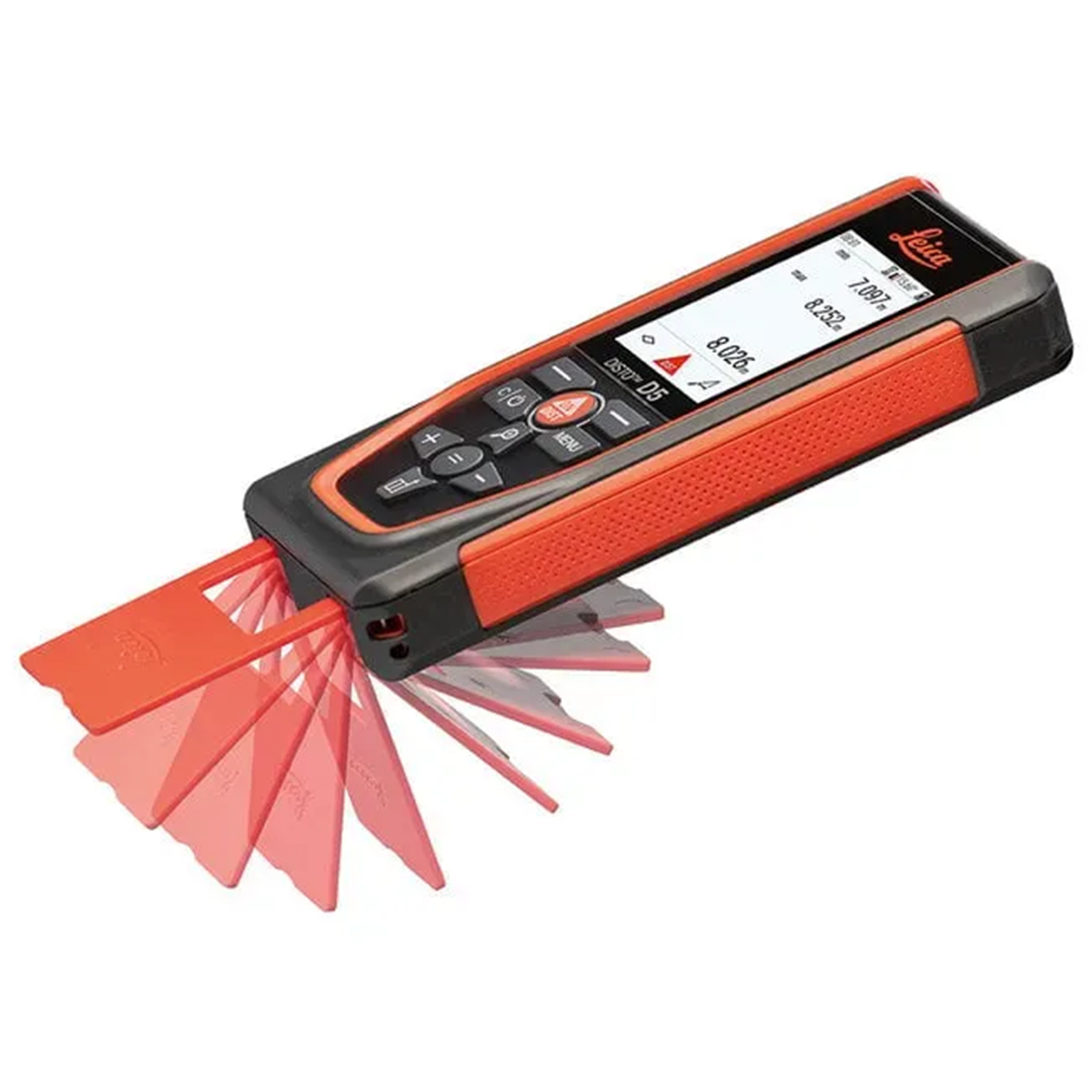

- Foldable end-piece with automatic detection
- Bright and clear 2.4" IPS display with scratch-proof lens

For more information: https://shop.leica-geosystems.com/measurement-tools/disto/leica-disto-d5/buy

Specifications

Measuring accuracy:

1.0mm (with favourable conditions)

Measuring accuracy:

2.0mm (with unfavourable conditions)

Range:

0.05~200m(with favourable conditions)

Range:

0.05~120m with unfavourable conditions)

Minimum measurement:

0.1mm

Units:

m, ft, in, yd

X-Range Power Technology:

Yes

Laser Class 2:

635 nm, <1 mW

Digital Pointfinder with 4-fold zoom:

Yes

Tilt measuring range:

360°

Tilt measuring tolerance:

± 0.2°

ø laser point | at distances:

6 / 30 / 60 mm | 10 / 50 / 100 m

Protection class:

IP54 (dust- and splash water protected)

Auto. laser switch off after:

90 s

Auto. power switch off after:

180 s

Bluetooth® Smart:

Bluetooth® v5.0

Range of Bluetooth®:

Up to 10 m

Temperature range storage/operation:

-25 to 70 °C / -10 to 50 °C

Measurements per charge (Li-Ion 2000 mAh) :

Up to 5,000 (reduced in Bluetooth Mode)

Batteries:

Li-Ion 2000mAH

Dimensions:

144 x 60 x 24 mm

Weight:

180g

Warranty:

2 years (extended to 3 years by registering it with Leica)

Manufacturer Part No:

LG950908

Brand:

Leica

Product Type:

UPC

Product Family:

Disto

Shipping Weight:

1 kg

PB Part No:

TOLLEC950908

Product Model:

Warranty: 36 months *
