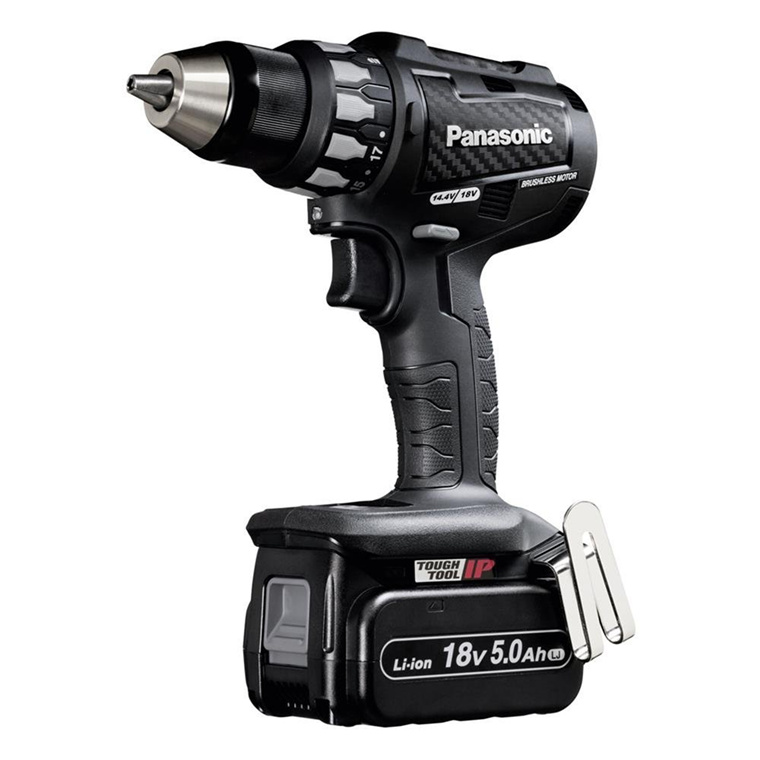

Panasonic EY74A2LJ2G57 Cordless Drill & Driver 18V Lithium Ion 5Ah - Dual Voltage

Normally $582.61
Normally $640.87
You save $32
You save $35
$ 550 .30
 +GST
$ 605 .33
 inc GST
$550.30  +GST
$605.33  inc GST

Panasonic EY74A2LJ2G57 Cordless Drill & Driver 18V Lithium Ion 5Ah - Dual Voltage

  • Brand: Panasonic
  • MPN: EY74A2LJ2G57
  • Part #: TOLPAN1002
  • UPC:
FREE SHIPPING
Normally $582.61
Normally $640.87
You save $32
You save $35
PB Tech price
$ 550 .30 $ 605 .33
 +GST  inc GST


Delivery: Order now and it ships on 10 Apr
Estimated Delivery Times
NSW, VIC, ACT, QLD - Within 4-8 working days
SA, WA, TAS, NT - Within 8-12 working days

View all shipping info
$550.30  +GST
$605.33  inc GST

Six easy payments of $100.89 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Features

18V Cordless Drill & Driver

High speed performance with a concept body with extreme durability. Featuring a new brushes motor, 5.0Ah Li-ion battery, ultra hard chuck jaw tips and hybrid switch. Increased efficiency and flexibility.

- High power 50.0N.m
- LED light, electric brake, variable speed control/reversible
- General construction, finishing carpentry, electric installation work or plumbing

Increased Efficiency and Flexibility

The new "speed control function" lets you to choose from three different low rotation speed settings (high, medium and slow) based on allowable maximum speeds for metal hole saws. It greatly reduces 'run out' when using metal hole saws and prevents surface scorching on stainless steel and other materials.

New Advanced Speed Control

New advanced speed control electronics start rotation speed gradually. This enables slow and smooth starts allowing for ultimate control when you start drilling or working with small screws in precise applications.

Specifications

Speed at No Load - Low

30-470 min-1 (rpm)

Speed at No Load - High

70-1580 min-1 (rpm)

Clutch Torque

0.5-4.4 Nm (0.23 Nm per stage, total 18 stage)

Charging Time (using EY0L82B charger) - Usable

65 minutes

Charging Time (using EY0L82B charger) - Full

80 minutes

Max. Drill Diameter

In Wood ?38 mm
In Metal ?13 mm

Max. Screws Driving

Wood screw ?8 mm
Self-drilling screw ?6 mm

Max. Torque

Stalling Torque

High/Hard Mode - 14.4V : 10Nm / 18V : 12Nm
Low/Soft Mode - 14.4V : 28Nm / 18V : 32Nm
Instant Torque
Low/Soft Mode - 14.4V : 40Nm / 18V : 50Nm

Speed at No Load

High/Hard Mode - 14.4V : 70-1350rpm / 18V : 70-1580rpm
Low/Soft Mode - 14.4V : 30-400rpm / 18V : 30-470rpm

Max.Drill Diameter

Low/Soft Mode

In Wood - 14.4V : dia.35mm / 18V : dia.38mm

Low/Soft Mode

In Metal - 14.4V : dia.13mm / 18V : dia.13mm

Max.Screws Driving

Low/Soft Mode

In Wood screw - 14.4V : dia.6.8mm / 18V : dia.8mm

Low/Soft Mode

In Self-drilling screw - 14.4V : dia.6mm / 18V : dia.6mm

Size (LxHxW) / Weight (including battery pack)

LJ2G

178mm x 250mm x 68mm / 2.05kg

PN2G

178mm x 234mm x 68mm / 1.80kg

LS2F

178mm x 242mm x 68mm / 1.90kg

Battery Pack and Charging time (using EY0L82B)

LJ2G

18V / 5.0Ah (EY9L54B)
Usable:65min. / Full:80min.

PN2G

18V / 3.0Ah (EY9L53B)
Usable:45min. / Full:60min.

LS2F

14.4V / 4.2Ah (EY9L45B)
Usable:50min. / Full:60min.

Capacity

LJ2G

Screwing Wood Screws in Yellow pine - High Mode (dia.4.1mm x 25mm) 1750pcs
Wood Screws in Yellow pine - Low Mode (dia.8mm x 80mm) 430pcs
Self-Driling Screws in SPC - High Mode (dia.4mm x 13mm, t=1.6mm) 1250pcs

PN2G

Screwing
- Wood Screws in Yellow pine - High Mode dia.4.1mm x 25mm 1050pcs
- Wood Screws in Yellow pine - Low Mode dia.8mm x 80mm 260pcs
- Self-Driling Screws in SPC - High Mode dia.4mm x 13mm, t=1.6mm 740pcs
Drilling
- Holes in Plaster Board + Plywood (Wooding core) - High Mode (dia.50mm, t=24.5mm; Plaster Board t=12.5mm, Plywood t=12.0mm) 35pcs
- Holes in SPC (Hole Saw) - High Mode (dia.21mm, t=1.6mm) 30pcs
- Holes in SPC (Hole Saw) - Low Mode (dia.33mm, t=1.6mm) 45pcs
- Holes in Yellow Pine - High Mode (dia.18mm x 120mm) 80pcs
- Holes in Yellow Pine - Low Mode (dia.30mm x 40mm) 170pcs

LS2F

Screwing
- Wood Screws in Yellow pine - High Mode (dia.4.1mm x 25mm) 1600pcs
- Wood Screws in Yellow pine - Low Mode (dia.8mm x 80mm) 300pcs
- Self-Driling Screws in SPC - High Mode (dia.4mm x 13mm, t=1.6mm) 830pcs
Drilling
- Holes in Plaster Board + Plywood (Wooding core) - High Mode (dia.50mm, t=24.5mm; Plaster Board t=12.5mm, Plywood t=12.0mm)
- Holes in SPC (Hole Saw) - High Mode (dia.21mm, t=1.6mm) 35pcs
- Holes in SPC (Hole Saw) - Low Mode (dia.33mm, t=1.6mm) 50pcs
- Holes in Yellow Pine - High Mode (dia.18mm x 120mm) 110pcs
- Holes in Yellow Pine - Low Mode (dia.30mm x 40mm) 180pcs

Manufacturer Part No:
EY74A2LJ2G57
Brand:
Product Type:
Cordless Drill & Driver
UPC
-
Product Family:
-
Shipping Weight:
6.8 kg
PB Part No:
TOLPAN1002
Product Model:
EY74A2LJ2G57
Warranty: 12 months *
