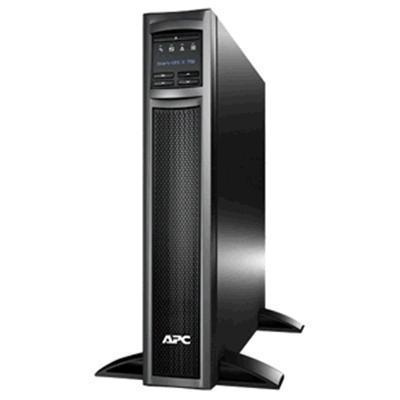

APC SMX750I Smart-UPS X 750VA R/Tower LCD 230V , 3 years repair or replace (excluding battery) and 2 years for battery
In stock at Supplier
APC SMX750I Smart-UPS X 750VA R/Tower LCD 230V , 3 years repair or replace (excluding battery) and 2 years for battery
- Brand: APC
- MPN: SMX750I
- Part #: UPSAPC1214539
- UPC: 731304268581
View all shipping info
- Brand: APC
- MPN: SMX750I
- Part #: UPSAPC1214539
- UPC: 731304268581
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





APC SMX750I Smart-UPS X 750VA R/Tower LCD 230V , 3 years repair or replace (excluding battery) and 2 years for battery
- Brand: APC
- MPN: SMX750I
- Part #: UPSAPC1214539
- UPC:731304268581

Product URL: https://www.pbtech.com/au/product/UPSAPC1214539/APC-SMX750I-Smart-UPS-X-750VA-RTower-LCD-230V--3-y
Features
Specifications
Output
Output Power Capacity
600 Watts / 750 VA
Max Configurable Power
600 Watts / 750 VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform Type
Sine wave

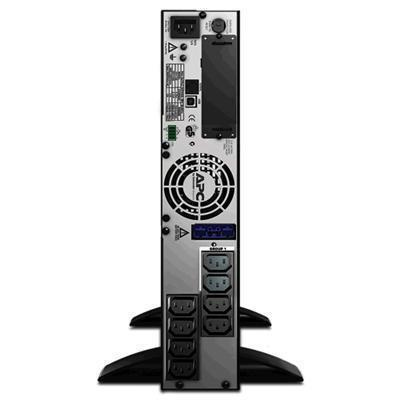

Output Connections
(8) IEC 320 C13 IEC 320 C13
(2) IEC Jumpers
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Cord Length
1.83 meters
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V
Other Input Voltages
220, 240
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Battery Slots Empty
1
Typical recharge time
3 hour(s)
Replacement Battery
APCRBC116
RBC Quantity
1
DC Overcurrent Protection
60A
Communications & Management
Interface Port(s)
SmartSlot, USB
Available SmartSlot™ Interface Quantity
1
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
645 Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
89.00 mm
Maximum Width
432.00 mm
Maximum Depth
490.00 mm
Rack Height
2U
Net Weight
22.05 KG
Shipping Weight
26.50 KG
Shipping Height
246.00 mm
Shipping Width
589.00 mm
Shipping Depth
620.00 mm
Color
Black
Units per Pallet
8.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
40.00 dBA
Online Thermal Dissipation
69.00 BTU/hr
