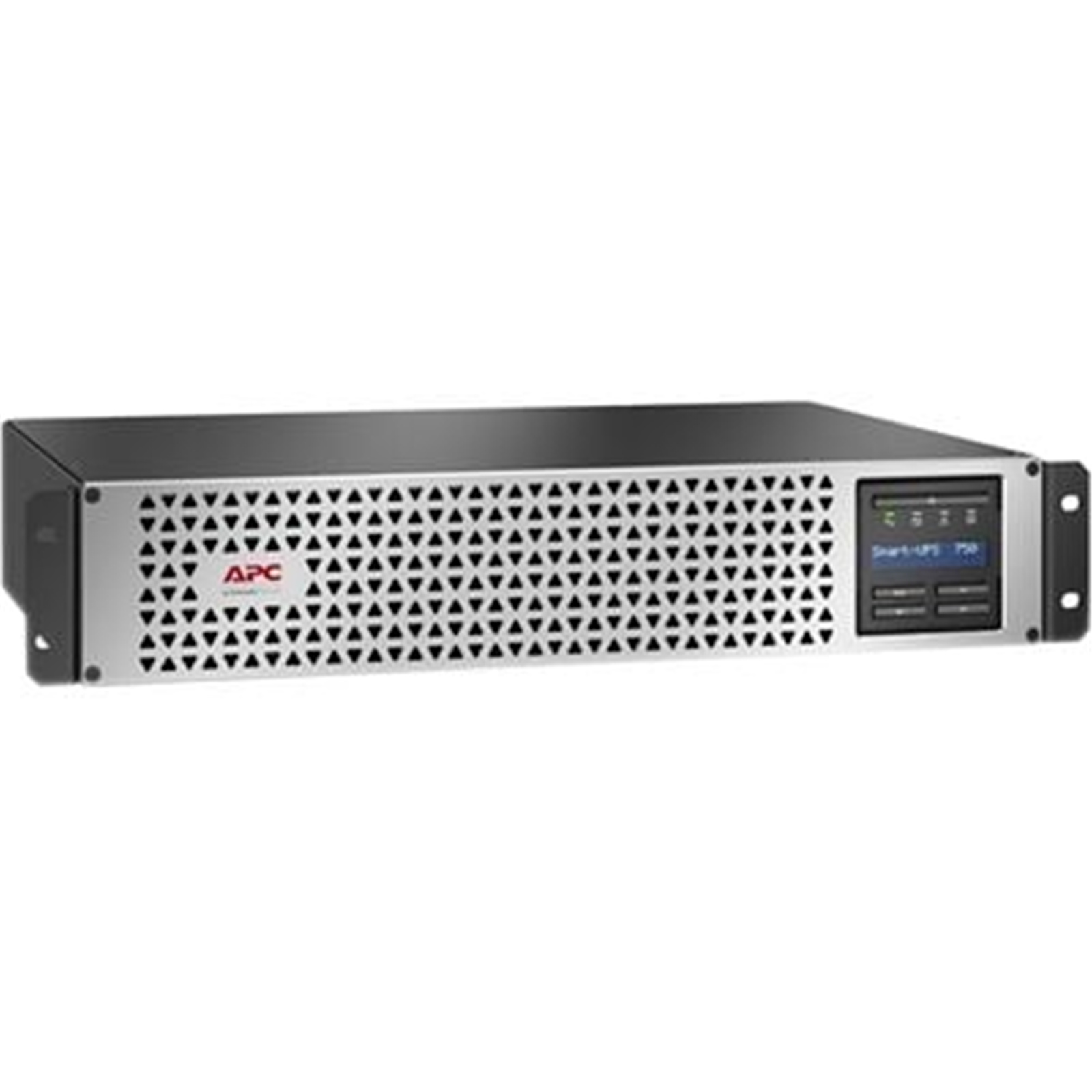

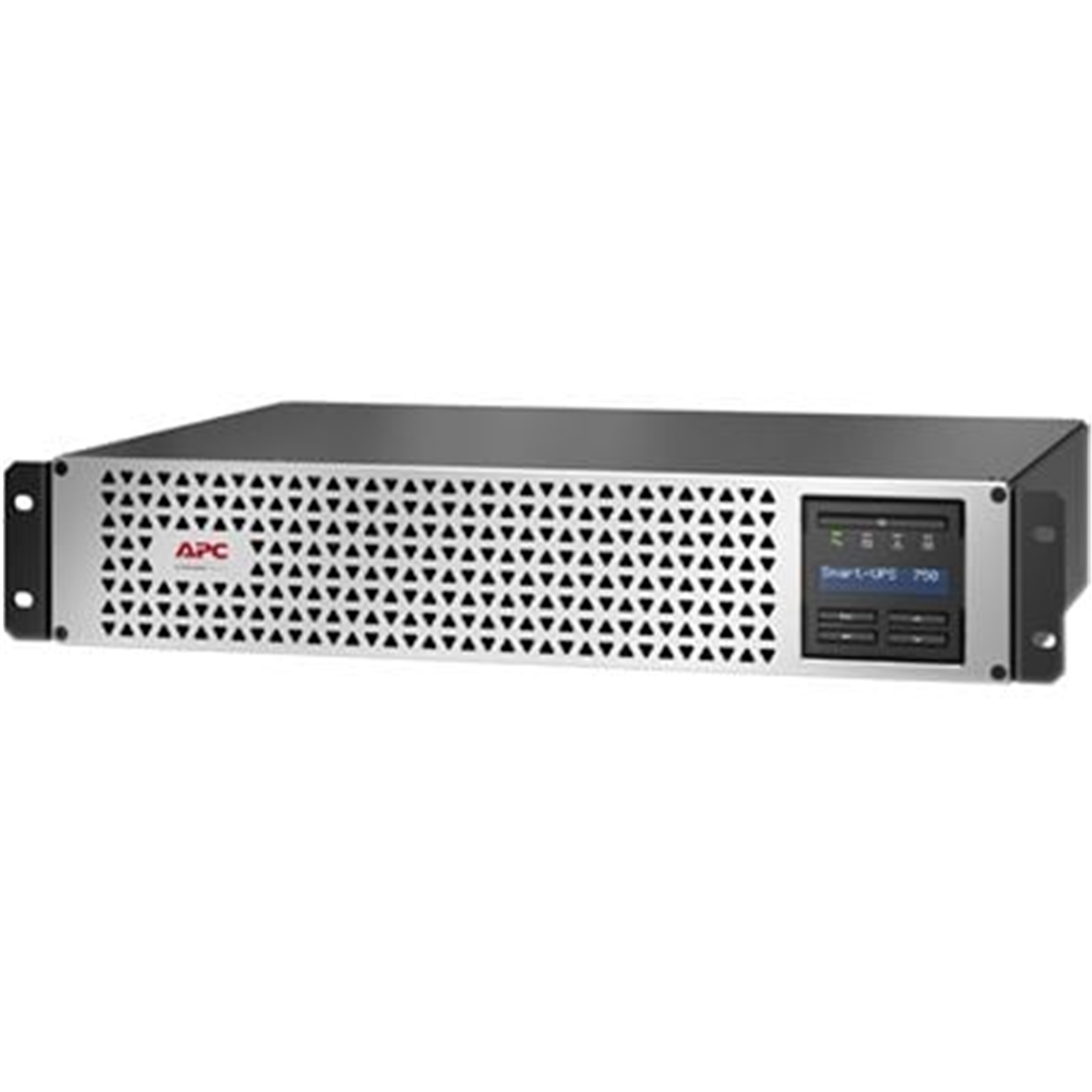

APC Smart UPS Lithium Ion Rackmount 2U 750VA / 600W, 230V , 6 x IEC C13 Outlets, LED , 5 Years Warranty
APC Smart UPS Lithium Ion Rackmount 2U 750VA / 600W, 230V , 6 x IEC C13 Outlets, LED , 5 Years Warranty
- Brand: APC
- MPN: SMTL750RMI2UC
- Part #: UPSAPC15001
- UPC: 731304407966
View all shipping info
- Brand: APC
- MPN: SMTL750RMI2UC
- Part #: UPSAPC15001
- UPC: 731304407966
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





APC Smart UPS Lithium Ion Rackmount 2U 750VA / 600W, 230V , 6 x IEC C13 Outlets, LED , 5 Years Warranty
- Brand: APC
- MPN: SMTL750RMI2UC
- Part #: UPSAPC15001
- UPC:731304407966

Product URL: https://www.pbtech.com/au/product/UPSAPC15001/APC-Smart-UPS-Lithium-Ion-Rackmount-2U-750VA--600W
Features
APC SMART-UPS LITHIUM ION SHORT DEPTH 750VA 230V WITH SMARTCONNECT
- 750VA/600W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Short depth UPS provides extra space for cable management
- Tower convertible with stabilizing feet (sold separately)
- Environmental performance of the product
SustainabilityGreen Premium™
Green Premium™ label is Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Specifications
Main
Main Input Voltage
230 V
Other Input Voltage
220 V
240 V
Main Output Voltage
230 V
Other Output Voltage
220 V
240 V
Rated Power In W
600 W
Rated Power In Va
750 VA
Product Or Component Type
Uninterruptible power supply (UPS)
Input Connection Type
IEC 60320 C14

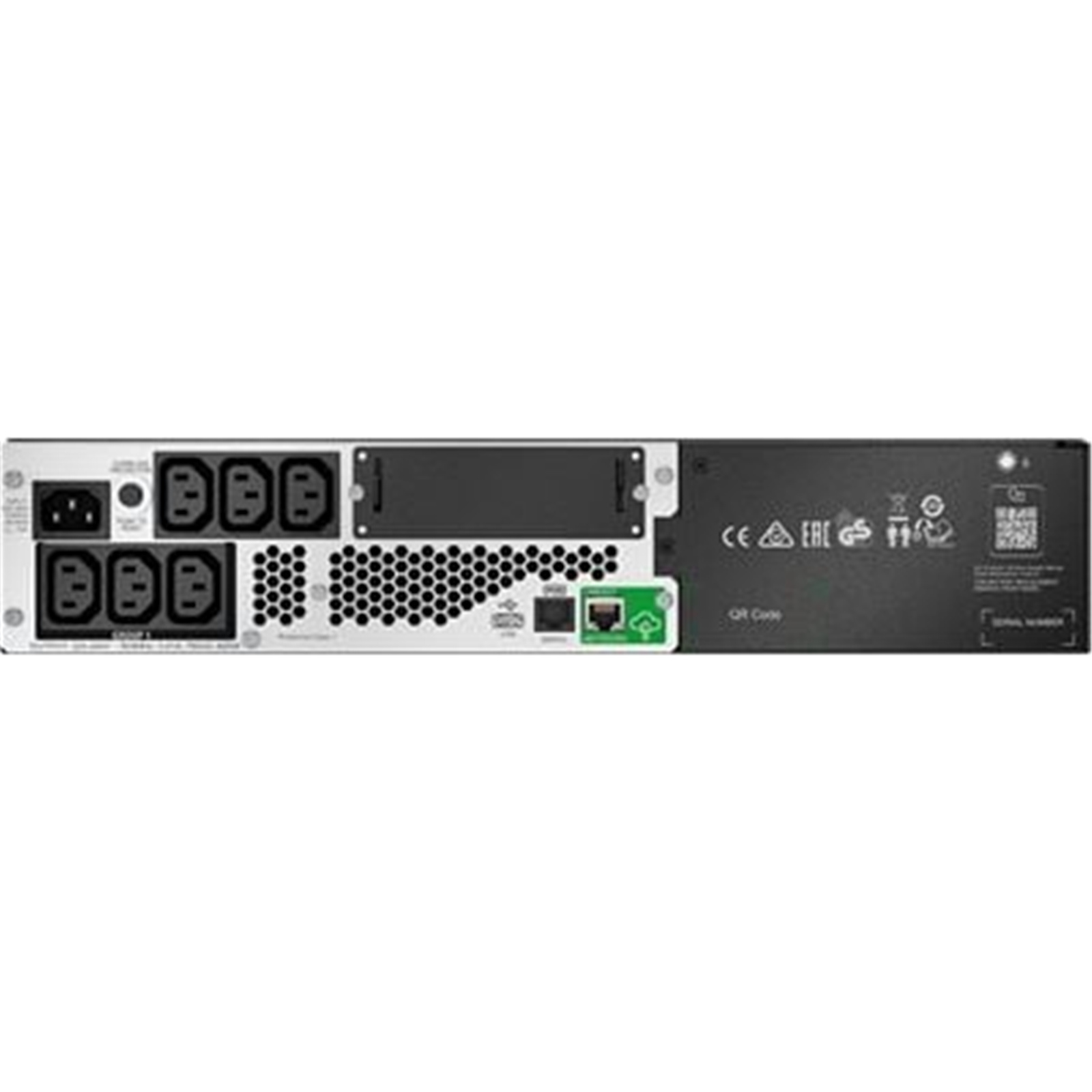

Output Connection Type
6 IEC 60320 C13
2 IEC Jumpers
Number Of Rack Unit
2U
Battery Type
Li-Ion (Lithium-Ion)
Batteries & Runtime
Extended Runtime
0
Battery Recharge Time
3 h
Battery Design Life
8…10 year(s)
Battery Charger Power
50 W rated
Physical
Colour
Black with silver front bezel
Height
8.6 cm
Width
43.8 cm
Depth
31.8 cm
Net Weight
15.4 kg
Mounting Preference
Lower
Mounting Mode
Rack-mounted
Usb Compatible
Yes
Input
Input Protection Type
Circuit breaker
Input Voltage Limits
151...302 V adjustable
160...286 V
Network Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output
Crest Factor
3 : 1
Harmonic Distortion
Less than 5 %
Maximum Configurable Power In Va
750 VA
Maximum Configurable Power In W
600 W
Transfer Time
6 ms typical : 10 ms maximum
Ups Type
Line interactive
Wave Type
Sine wave
Output Frequency
50/60 Hz +/- 3 Hz sync to mains
Conformance
Product Certifications
C-Tick
CE
EAC
Standards
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic Level
41 dBA
Heat Dissipation
135 Btu/h
Operating Altitude
0...10000 ft
Ambient Air Temperature For Operation
0…40 °C
Ambient Air Temperature For Storage
-15…45 °C
Storage Altitude
0.00…7620.00 m
Ip Degree Of Protection
IP20
Relative Humidity
0…95 % non-condensing
Storage Relative Humidity
0…95 % non-condensing
Communications & Management
Alarm
Audible and visible alarms
Control Panel
Multifunction LCD status and control console
Free Slots
1
Communication Port Support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm
Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge Energy Rate
645 J
Noise Suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Unit Type Of Package 1
PCE
Number Of Units In Package 1
1
Package 1 Height
22.9 cm
Package 1 Width
47.2 cm
Package 1 Length
58.4 cm
Package 1 Weight
18.6 kg
