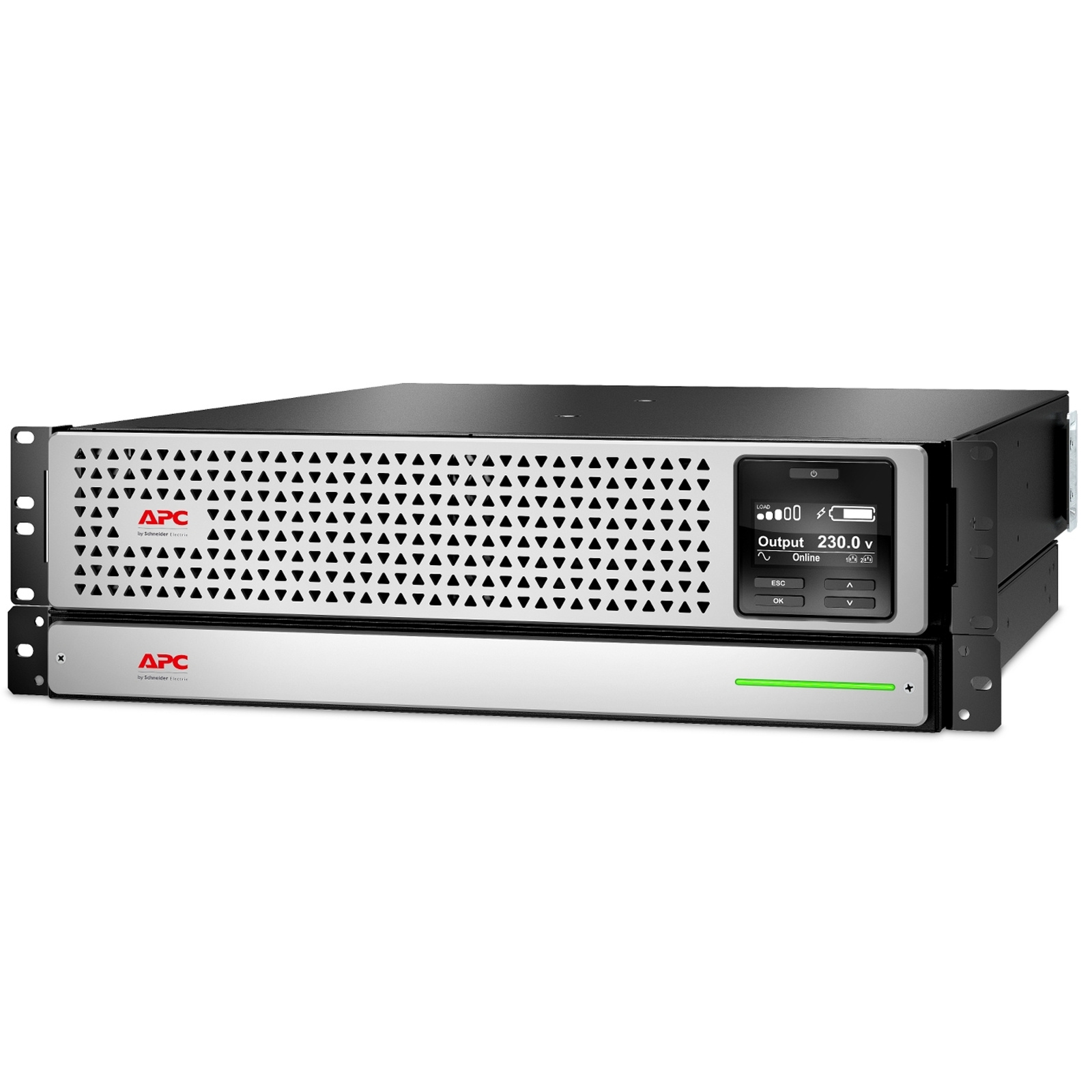

APC SMART-UPS SRT LI-ION 2200VA RM 230V
- Brand: APC
- MPN: SRTL2200RMXLI-NC
- Part #: UPSAPC2302201

Product URL: https://www.pbtech.com/au/product/UPSAPC2302201/APC-SMART-UPS-SRT-LI-ION-2200VA-RM-230V
Features
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- 2200VA/1980W double-conversion on-line pure sine wave 3U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- 1-Year Secure Network Management Card subscription included
Specifications
Main
Main Input Voltage
230 V
Product or component type
Uninterruptible power supply (UPS)
Other Input Voltage
220 V
240 V
Main Output Voltage
230 V
Other Output Voltage
220 V
240 V
Rated power in W
1980 W
Rated power in VA
2200 VA
Input Connection Type
IEC 60320 C20
Schuko CEE 7 / EU1-16P
output connection type
6 IEC 60320 C13
2 IEC 60320 C19
Number of rack unit
3U
Cable length
1.8 m
Number of cables
1
Provided equipment
CD with software
Communication cable
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
Range of product
Smart-UPS On-Line
Batteries & Runtime
Battery type
Li-Ion (Lithium-Ion)
Battery voltage
48 V
Extended runtime
1
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
4 h
Battery life
5…10 year(s)
Battery charger power
155 W rated
General
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Lithium-Ion
Redundant
No
UPS type
Double conversion online
Physical
Colour
Black with silver front bezel
Height
12.8 cm
Width
43.2 cm
Depth
63.9 cm
Net weight
29.2 kg
Mounting preference
No preference
Mounting mode
Rack-mounted with kit
Two post mountable
0
USB compatible
Yes
Mounting position
Horizontal
Vertical
Input
Input voltage limits
160...275 V 40% load
80...150 V
Network frequency
40...70 Hz auto-sensing
Output
Bypass type
Built-in bypass
Crest factor
3 : 1
Harmonic distortion
Less than 2 %
Maximum configurable power in VA
2200 VA
Maximum configurable power in W
1980 W
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
