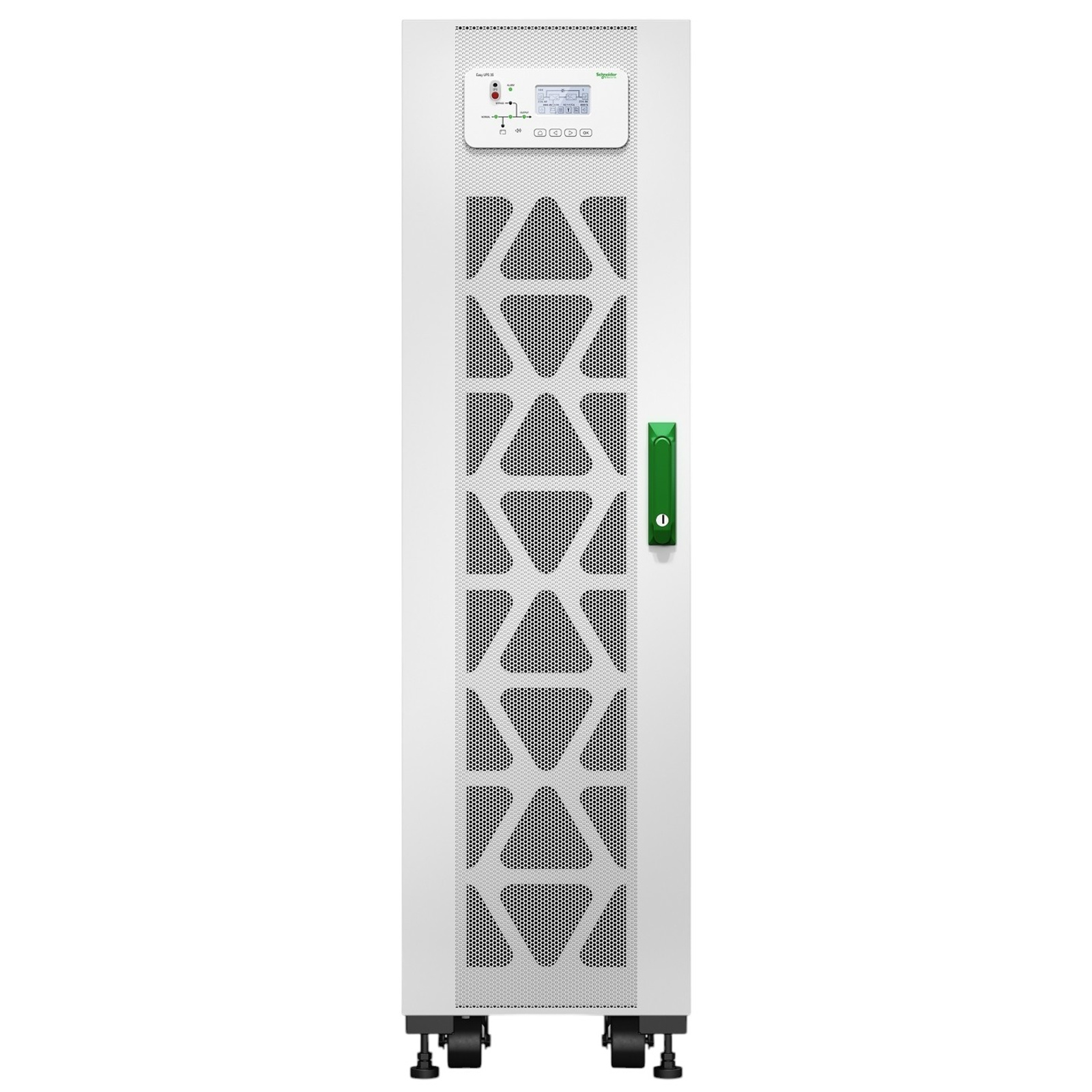

APC Easy UPS 3S 20 kVA 400V 3:1 UPS for Internal Batteries
Out of stock
APC Easy UPS 3S 20 kVA 400V 3:1 UPS for Internal Batteries
- Brand: APC
- MPN: E3SUPS20K3IB
- Part #: UPSAPC3020
- UPC:
View all shipping info
- Brand: APC
- MPN: E3SUPS20K3IB
- Part #: UPSAPC3020
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS Batteries





APC Easy UPS 3S 20 kVA 400V 3:1 UPS for Internal Batteries
- Brand: APC
- MPN: E3SUPS20K3IB
- Part #: UPSAPC3020

Product URL: https://www.pbtech.com/au/product/UPSAPC3020/APC-Easy-UPS-3S-20-kVA-400V-31-UPS-for-Internal-Ba
Features
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.
- Easy UPS 3S is easy to install and start up
- Parallel up to 4 UPSs for capacity or redundancy
- Extended runtime options available
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
Specifications
Main
Main Input Voltage
400 V 3 phases
Product or component type
Uninterruptible power supply (UPS)
Other Input Voltage
380 V
415 V
Output voltage
230 V
Other Output Voltage
220 V
240 V
Rated power in W
20 kW
rated power in VA
20 kVA
Provided equipment
Dust filter
Installation guide
Range of product
Easy UPS 3S
Batteries & Runtime
Battery type
VRLA
Battery voltage
240 V
Maximum short-circuit current
10 kA
Number of battery filled slots
0
Number of battery free slots
3
Max current discharge
54 A
Discharge battery voltage
+/- 198 V DC
Physical
Colour
White (RAL 9003)
Height
140 cm
Width
38 cm
Depth
90.7 cm
Net weight
150 kg
USB compatible
Yes
Input
Maximum input current
37 A
Input harmonic distortion
Less than 5 % for full load
Input Power Factor at Full Load
0.99
Input voltage limits
304...477 V
Input protection type
Circuit breaker and fuse
Network frequency
45...65 Hz
Output
Maximum configurable power in VA
20 kVA
Maximum configurable power in W
20 kW
Output frequency
50 Hz sync to mains
60 Hz sync to mains
Harmonic distortion
Less than 3 %
Output harmonic distortion
< 5.5% at 100% non-linear load
Output overload operation
10 minutes at 125% and 60 seconds at 150%
Output voltage tolerance
+/- 1.5 %
UPS type
Double conversion online
Crest factor
3 : 1
Environmental
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 % non-condensing
Operating altitude
0...3281 ft
Ambient air temperature for storage
-25…55 °C
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0…15240 m
Acoustic level
60 dBA
Heat dissipation
870 W
IP degree of protection
IP20
Conformance
Product certifications
CE
EAC
RCM
