CyberPower OR600ERM1U-AU Office 600VA Sine Wave UPS , 1U Rackmount
- Brand: CyberPower
- MPN: OR600ERM1U-AU
- Part #: UPSCPR40610

Product URL: https://www.pbtech.com/au/product/UPSCPR40610/CyberPower-OR600ERM1U-AU-Office-600VA-Sine-Wave-UP
Features
CYBERPOWER OR600ERM1U OFFICE RACKMOUNT SMART APP UPS SYSTEMS 600VA

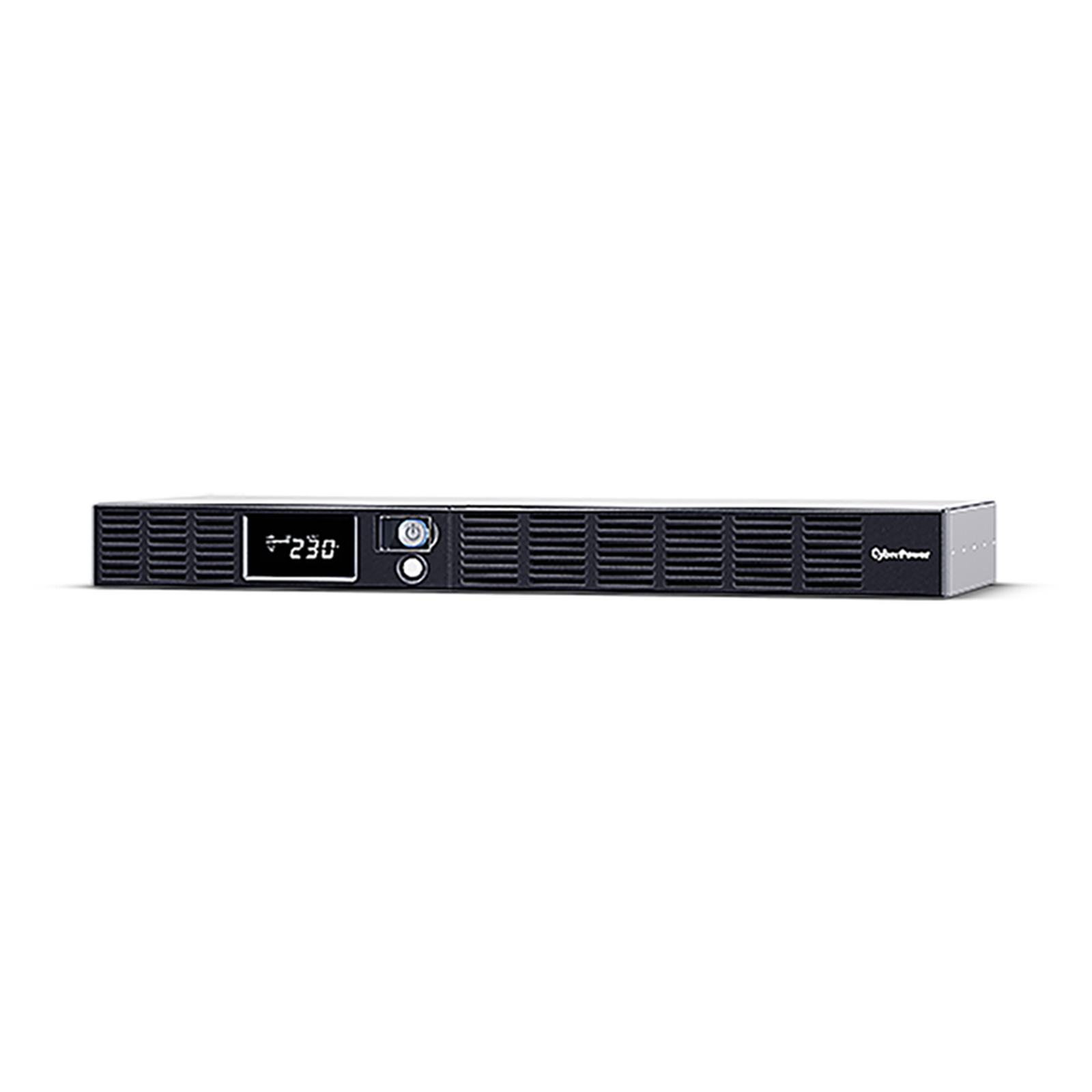

CyberPower OR600ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It's typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.

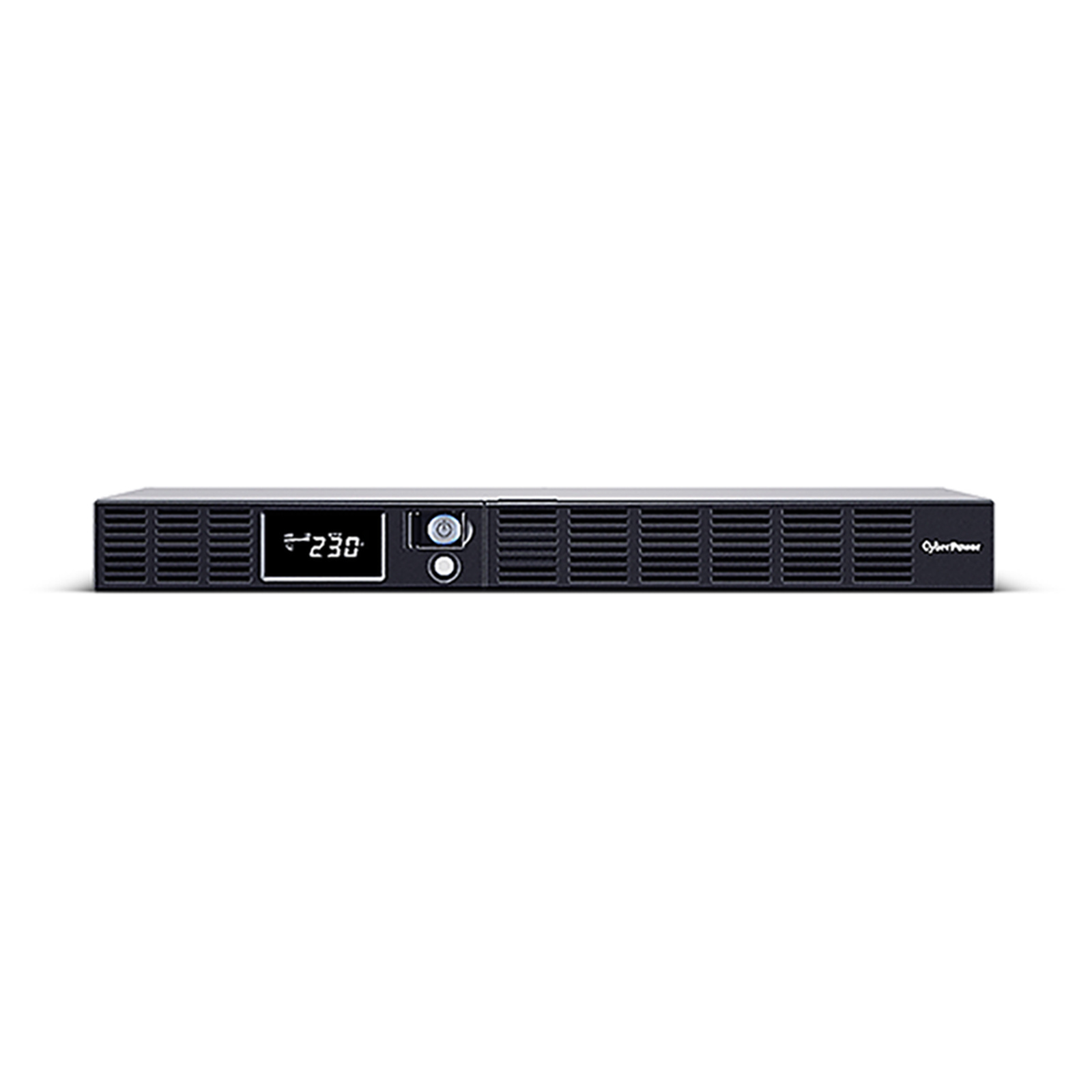

The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
- Line-interactive UPS Topology
- Simulated Sine Wave Output
- Overload Protection
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- USB Connectivity Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Hot-swappable Batteries
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel® Management Software
Specifications
General
Phase
Single Phase
Form Factor
Rackmount
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology
Input
Nominal Input Voltage ( Vac )
230
Input Voltage Range ( Vac )
165 ~ 271
Input Frequency ( Hz )
50 ± 3
60 ± 3
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
10
Input Connector Type
IEC C14socket
Detachable Power Cord Plug Type
IEC C14 x 1
Power Cord Length (ft.)
6
Power Cord Length (m.)
1.83
Output
Capacity (VA)
600
Capacity (Watts)
360
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) ( Vac )
230 ± 10%
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Power Factor
0.6
Automatic Voltage Regulation (AVR)
Single Boost
Overload Protection
Internal Current Limiting, Circuit Breaker
Outlet(s) - Total
6
Outlet Type
IEC C13 x 6
Outlet(s) - Battery & Surge Protected
4
Outlet(s) - Surge-Only Protected
2
Typical Transfer Time ( ms )
4
Battery
Runtime at Half Load ( min )
13
Runtime at Full Load ( min )
4
Typical Recharge Time ( Hours )
8
Start On Battery
Yes
User-replaceable
Yes
Hot-swappable
Yes
Battery Type
Sealed Lead-acid
Replacement Battery Pack
RBP0019
RBP Quantity ( pcs )
1
Surge Protection & Filtering
Surge Suppression ( Joules )
405
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out
Management & Communications
LCD Panel
Yes
LCD Information Display
Operation Type, Power Status, Battery Status, Load Status, Other Information
LCD Setting & Control
Mode Setting, Alarm Setting, Input & Output
LED Indicators
Power On
HID Compliant USB Port(s)
1
Serial Port
Dry Contact
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )
Power Cord x4, USB Cable x1
Power Management Software
PowerPanel® Business (Recommended)
SNMP/HTTP Remote Monitoring
Yes - with optional RMCARD205
Physical
Enclosure Construction
Metal
Color
Silver
Rackmount Ears
Yes
Physical Size
UPS Module
Dimensions (WxHxD) (in.)
17.0 x 1.7 x 9.3
Dimensions (WxHxD) (mm.)
433 x 44 x 235
Weight (lbs.)
17.2
Weight (kg.)
7.8
Installed Rack Height ( U )
1
Shipping Dimensions
Dimensions (WxHxD) (in.)
20.9 x 6.1 x 12.4
Dimensions (WxHxD) (mm.)
530 x 155 x 315
Weight (lbs.)
22.7
Weight (kg.)
10.3
Environmental
Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 95
Operating Elevation ( feet/meters )
0-10,000 feet (0-3,000 meters)
Storage Temperature (°F)
5 ~ 113
Storage Temperature (°C)
-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 95
Storage Elevation ( feet/meters )
0-50,000 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr )
20
