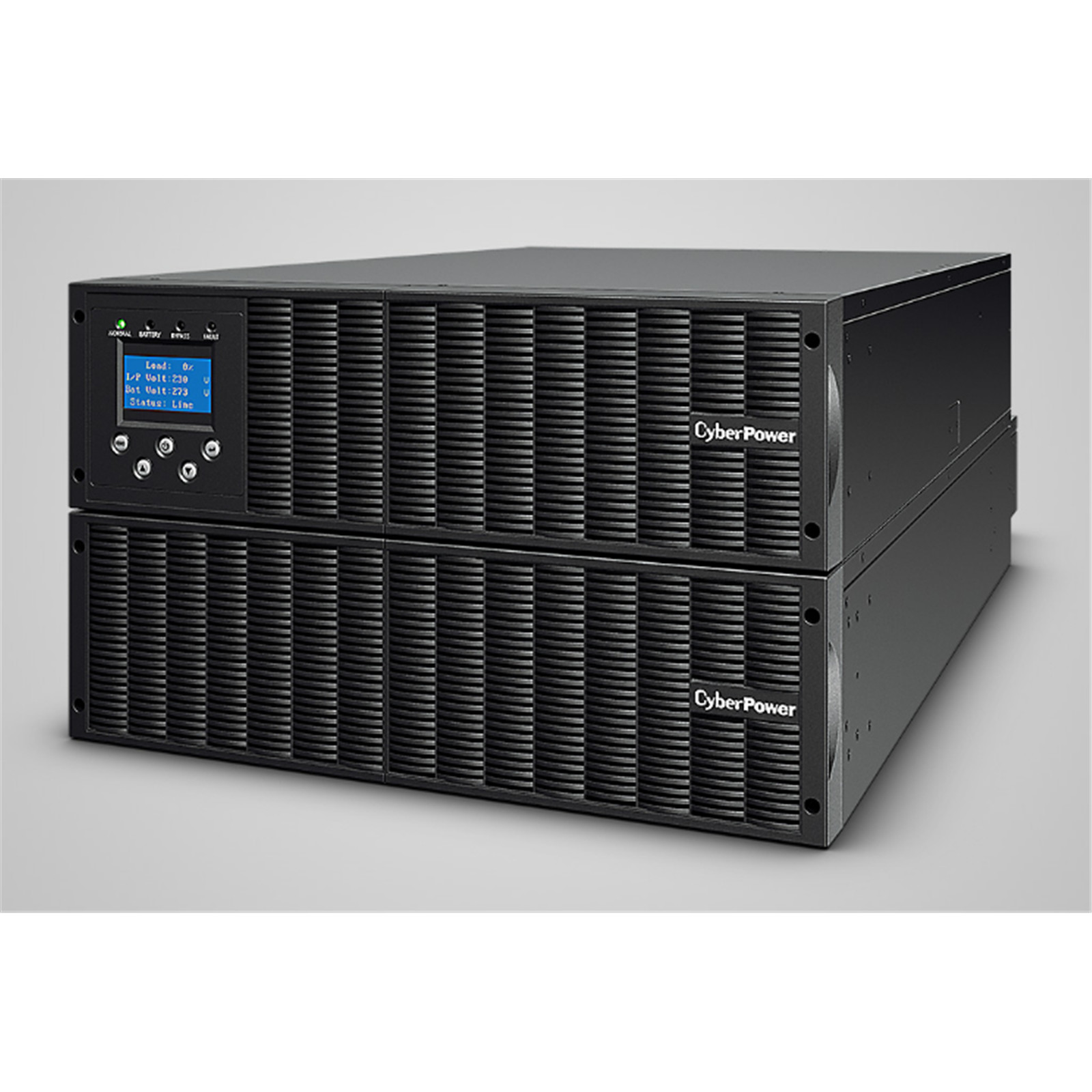

CyberPower OLS10000ERT6UM Online Series 10000VA/9000W True Online Rackmount,

PB Tech price

$ 5,002 .47

+GST

$ 5,502 .72

inc GST

Out of stock

CyberPower OLS10000ERT6UM Online Series 10000VA/9000W True Online Rackmount,

Brand: CyberPower
MPN: OLS10000ERT6UM
Part #: UPSCPR50900
UPC:

PB Tech price

$ 5,502 .72

inc GST

+GST inc GST

Out of stock

Delivery: Out of stock

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: CyberPower
MPN: OLS10000ERT6UM
Part #: UPSCPR50900
UPC:

Be the first to review this product

Capacity (VA)

10000VA

Capacity (Watts)

9000W

Form Factor

Rack/Tower

Outlets

Recharge Time

7 Hours

Run Time (Full Load)

4 Minutes

Run Time (Half Load)

11 Minutes

Transfer Time

No Break

View full specs

Returns & Warranty Bulk Quote Print Page

Features

CyberPower OLS10000ERT6UM is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.

Selected product is equipped with a Maintenance Bypass Switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.

- Online (Double Conversion) UPS Topology
- ECO Mode
- UPS Parallel Expansion
- Generator Compatible
- Overload Protection
- Maintenance Bypass Switch
- Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)

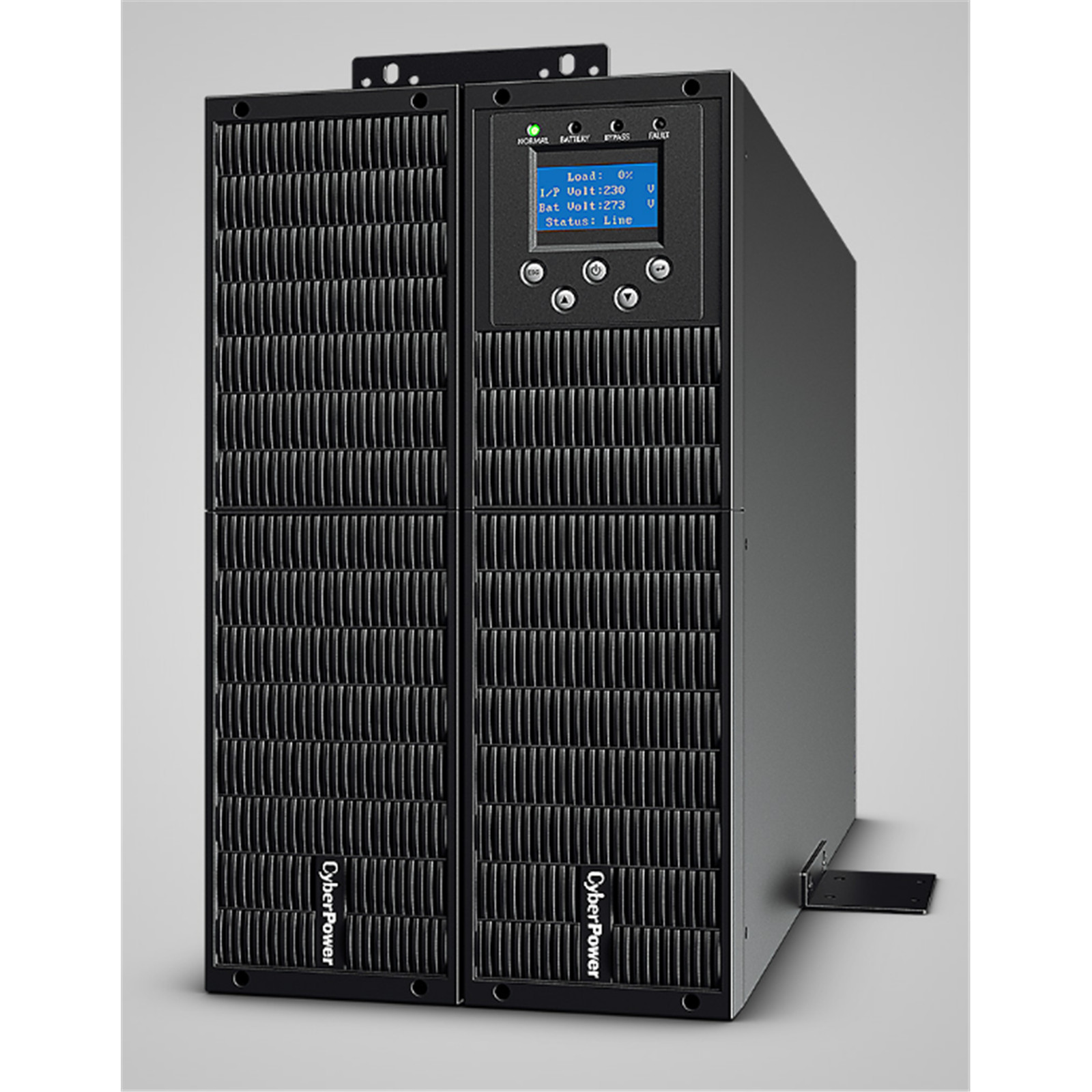

- Rack/Tower Convertible Configurations

Awards & certification

Cisco Compatible

This product has demonstrated the interoperability with Cisco technologies so that be recognized "Cisco Compatible".

GreenPower UPS™

GreenPower UPS™ Technology improves operating efficiency and minimizes energy consumption, so that users can enjoy significant energy cost savings over conventional UPS systems.

Specifications

General

Phase

Single Phase

UPS Topology

Online Double Conversion

Energy Saving Technology

Online ECO Mode Efficiency > 96%

Active PFC Compatibility

Yes

Parallel Expansion (Max. Units)

Input

Generator Compatibility

Yes

Nominal Input Voltage ( Vac )

230

Input Voltage Range ( Vac )

110 ~ 276

Adjustable Voltage Range ( Vac )

0~80% Load for 110 ~ 276 Vac
0~100% Load for 176 ~ 276 Vac

Input Frequency ( Hz )

50 ± 5
60 ± 6

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

45.5

Input Power Factor

0.99

Input Connector Type

Hardwire Terminal Block

Output

Capacity (VA)

10000

Capacity (Watts)

9000

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) ( Vac )

208 ± 1%
220 ± 1%
230 ± 1%
240 ± 1%

Output Voltage Setting

Configurable

On Battery Frequency ( Hz )

50 ± 0.1%
60 ± 0.1%

Output Frequency Setting

Configurable

Power Factor

0.9

ECO Mode Voltage Tolerance

± 10 %

Overload Protection

Internal Current Limiting , Circuit Breaker , Fuse

Overload Protection (Line Mode)

105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec

Overload Protection (Battery Mode)

105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec

Overload Protection (Bypass Mode)

125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec

Crest Factor

3 : 1

Harmonic Distortion (Linear Load)

THD<2%

Harmonic Distortion (Non-linear Load)

THD<5%

Internal Bypass

Automatic Bypass , Manual Bypass

Maintenance Bypass

Yes

Outlet(s) - Total

Outlet Type

Hardwire Terminal Block x 1

Typical Transfer Time ( ms )

Battery

Runtime at Half Load ( min )

Runtime at Full Load ( min )

Typical Recharge Time ( Hours )

Maximum Charging Current ( A )

Start On Battery

Yes

Smart Battery Management (SBM)

Yes

User-replaceable

Battery Type

Sealed Lead-acid

Single Battery Capacity ( AH )

12 V 9 AH

Extended Battery Module (EBM)

BPSE240V75ART3UOA

Max. EBM Quantity ( pcs )

Surge protection & filtering

Surge Suppression ( Joules )

445

EMI/RFI Filtration

Yes

Management & communications

LCD Panel

Yes

LCD Information Display

Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log

LCD Setting & Control

Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning , Communication , Event & Log , Security Setting

LED Indicators

Line Mode , Battery Mode , Bypass Mode , UPS Fault

HID Compliant USB Port(s)

Serial Port

RS232

Dry Contact (with Relay)

Optional

Emergency Power Off (EPO) Port

Yes

Audible Alarms

Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault

Management Cable ( pcs )

USB Cable x1

Power Management Software

PowerPanel® Business

SNMP/HTTP Remote Monitoring

Yes - with optional RMCARD205

Physical

Form Factor

Rack/Tower

Enclosure Construction

Metal

Color

Black

Rackmount Rail

Yes

Rackmount Ears

Yes

Physical size - Power module

Dimensions (WxHxD) (in.)

17.24 x 5.14 x 26.77

Dimensions (WxHxD) (mm.)

438 x 130.5 x 680

Weight (lbs.)

44.1

Weight (kg.)

Installed Rack Height ( U )

Physical size - Battery module

Dimensions (WxHxD) (in.)

17.24 x 5.14 x 26.77

Dimensions (WxHxD) (mm.)

438 x 130.5 x 680

Weight (lbs.)

145.5

Weight (kg.)

Installed Rack Height ( U )

Shipping dimensions

Dimensions (WxHxD) (in.)

22.6 x 28.7 x 35

Dimensions (WxHxD) (mm.)

575 x 730 x 890

Weight (lbs.)

260.7

Weight (kg.)

118.24

Enviromental

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 90

Operating Elevation ( feet/meters )

=1000, Load Derated 1% per 100m from 1000m and 2000m

Storage Temperature (°F)

5 ~ 113

Storage Temperature (°C)

-15 ~ 45

Storage Relative Humidity (Non-condensing) ( % )

0 ~ 95

Storage Elevation ( feet/meters )

0-50,000 feet (0-15,000 meters)

Online Thermal Dissipation ( BTU/hr )

2672

Audible Noise at 1.5M from Surface of Unit ( dBA )

Certifications

RoHS

Yes

Manufacturer Part No:

OLS10000ERT6UM

Brand:

CyberPower

Product Type:

UPC

Product Family:

Shipping Weight:

40 kg

PB Part No:

UPSCPR50900

Product Model:

OLS10000ERT6UM

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
