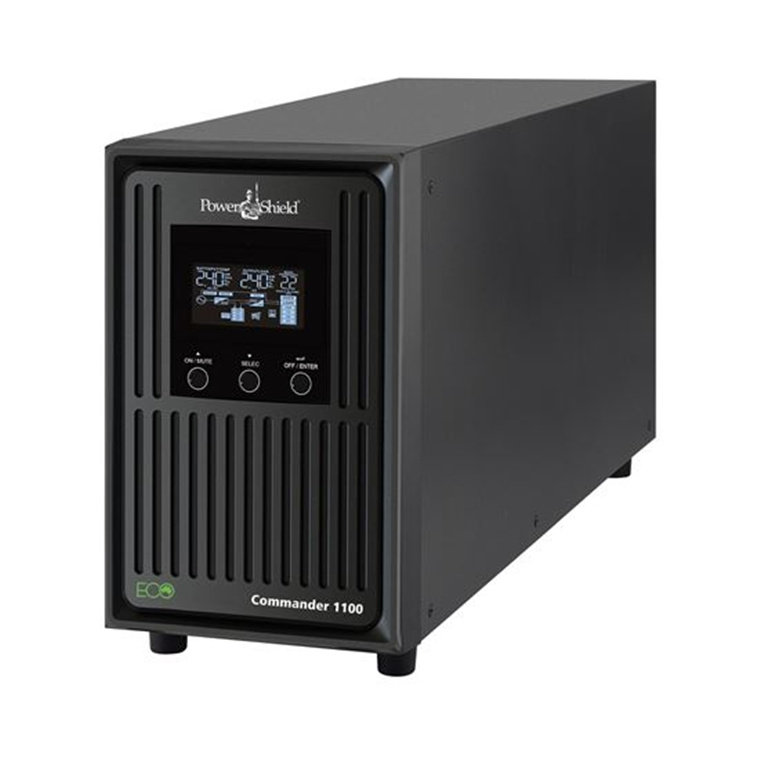

PowerShield PSCM1100 Commander Tower 1100VA
- Brand: PowerShield
- MPN: PSCM1100
- Part #: UPSPSD0027

Product URL: https://www.pbtech.com/au/product/UPSPSD0027/PowerShield-PSCM1100-Commander-Tower-1100VA
Features
-Pure Sine Wave Output
-Output Power Factor 0.9
-Free, programmable Power Management
-Ultra Modern, Informative LCD - Shows Battery Time Remaining
-ECO Mode
-Smart AVR
-Emergency Power Off Function
-Multiple Communication Available with faster SNMP Card
Specifications
Capacity
1000VA/990W
Topology
Line Interactive, Pure Sine Wave
INPUT
Nominal Voltage
240V AC
Acceptable Voltage Range
162V~290V AC
Frequency
50/60Hz ±5Hz (auto sensing)
OUTPUT
Voltage Regulation (AC Mode)
240V AC (Selectable 208/220/230V AC) ± 10% AVR
Voltage Regulation (Batt. Mode)
± 1.5% (before battery alarm)
Frequency Range (Batt. Mode)
50Hz or 60Hz ±1Hz
Current Crest Ratio
3.1
Total Harmonic Distortion
2% max @ 100% linear load, 5% max @ 100% non-linear load (before low battery alarm)
Transfer Time
6ms (Typical), 10ms max.
Waveform (Batt. Mode)
Pure Sine Wave
EFFICIENCY
AC Mode
98% (Advanced ECO design)
Battery Mode
89%
BATTERY
Standard Model
Battery Type & Number: 12V/9AH (x2)
Recharge Time: 4 hours recover to 90% capacity
PROTECTION
Full Protection
Overload, thermal, short circuit, discharge and overcharge protection
Surge Protection
1968J/39000A
ENVIRONMENT
Operation Temperature
0°C~40°C
Relative Humidity
0%~90% (RH non-condensing)
Noise Level
<45dB
COMMUNICATIONS & MANAGEMENT
Interface
USB and RS-232 as standard, an Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact
Software
PowerShield NetGuard® software - supports Windows-based operating system, Linux, Unix and Mac
LCD display
AC mode, Batt. Mode, Load Level, Input Voltage, Output Voltage, Overload, Fault, Battery Replacement, Low Batt., Batt. Time Remaining
Audible alarm
Battery Mode, Low Battery (Batt. Mode), Battery Replacement, Fault, Overload
PHYSICAL
Dimensions (D x W x H)
397 x 145 x 220mm
Weight
12.9/14.4kg
COMPLIANCE
Safety
EN62040-1 -1 2003, IEC 60950-1 -1
EMC
EN62040-2 2006
RoHS
Directive 2011/65/EU
