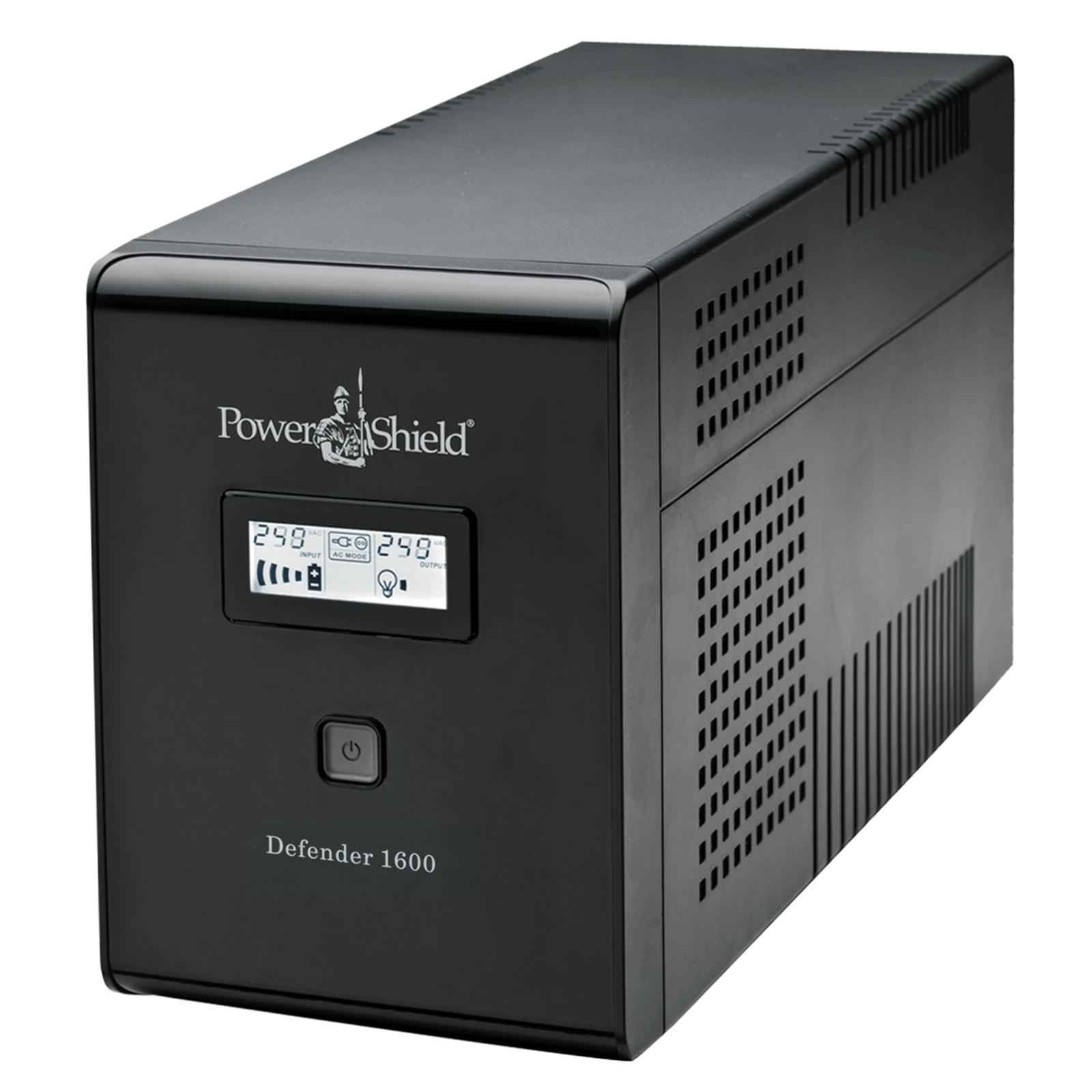

PowerShield PSD1600 Defender UPS 1600VA 960W Line Interactive UPS, 3x NZ
PowerShield PSD1600 Defender UPS 1600VA 960W Line Interactive UPS, 3x NZ
- Brand: PowerShield
- MPN: PSD1600
- Part #: UPSPSD0034
- UPC:
View all shipping info
- Brand: PowerShield
- MPN: PSD1600
- Part #: UPSPSD0034
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Very happy with my purchase PB Tech is a great place to shop"
"Had to use it today. My only gripe would be it seems slow to charge up after an outage."
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





PowerShield PSD1600 Defender UPS 1600VA 960W Line Interactive UPS, 3x NZ
- Brand: PowerShield
- MPN: PSD1600
- Part #: UPSPSD0034

Product URL: https://www.pbtech.com/au/product/UPSPSD0034/PowerShield-PSD1600-Defender-UPS-1600VA-960W
Features
please compare to UPSDNX1600 which is a similar product, branded as DYNAMIX.
POWERSHIELD Defender 1600VA (960W) Line Interactive UPS, 3x NZ Power Sockets with Surge+Battery Backup, 3x NZ Power Sockets with Surge 936J LCD Status Display.
The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user-replaceable batteries and six Australia/NZ sockets make the Defender the complete package at this level. The Defender USB communication port is compatible with Synology NAS products. NetGuard™ UPS management software included.
Features
- Surge Protection, Best in its Class
- LCD Status Display
- Australian/NZ outlets for UPS and Surge protection (x3)
- Australian/NZ outlets for Surge protection only (x3)
- Buck and boost AVR for voltage stabilisation
- User-replaceable batteries
- Silent Operation (No fans included)
- Auto-restart when AC returns
- Off-mode charging
- Cold start function
- USB communication with sophisticated NetGuard® software
- LCD Status Display
Specifications
Capacity
1600VA / 960W
Topology
Line Interative
Input
Voltage
240Vac (Nominal)
Voltage Range
177-290Vac
Frequency Range
50/60Hz ± 5Hz (auto sensing)
Output
Output Voltage
240Vac ± 10%
Frequency
AC mode tracks utility
Frequency Range (Batt. Mode)
50Hz or 60Hz ±1Hz
Transfer Time
6ms (Typical)
Waveform (Batt. Mode)
Simulated Sine Wave
Australian Outlets - UPS & Surge Protection
3
Australian Outlets - Surge Protection
3
Battery
Battery Type & Number
12V / 9AH (x2)
Typical Recharge Time
6 hours recover to 90% capacity
Backup Time (50% Load)
10 min.
Protection
Full Protection
Overload, discharge, thermal, short circuit and overcharge protection
Surge Protection
936Joules / 19500Amps
Communication & Management
Interface
USB interface
Software
NetGuard® supports - Windows®, Linux, Unix and Mac (Free Download)
HID
Supports Windows, Apple, Linux, NAS and various industrial controllers
LCD Alarm
AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload
Audible Alarm
Battery Mode, Low Battery (Batt. Mode), Fault, Overload
Physical
Dimension L x W x H (mm)
393 x 146 x 202
Net Weight (kgs)
11.9
Operating enviroment
Temperature
0-40°C
Humidity
0-90% RH (non-condensing)
Noise Level
Less than 5dBA @ 1 meter (no fan)
Compliance
Safety/EMC
(A-tick PSD650) EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006
RoHS
Directive 2011/65/EU
