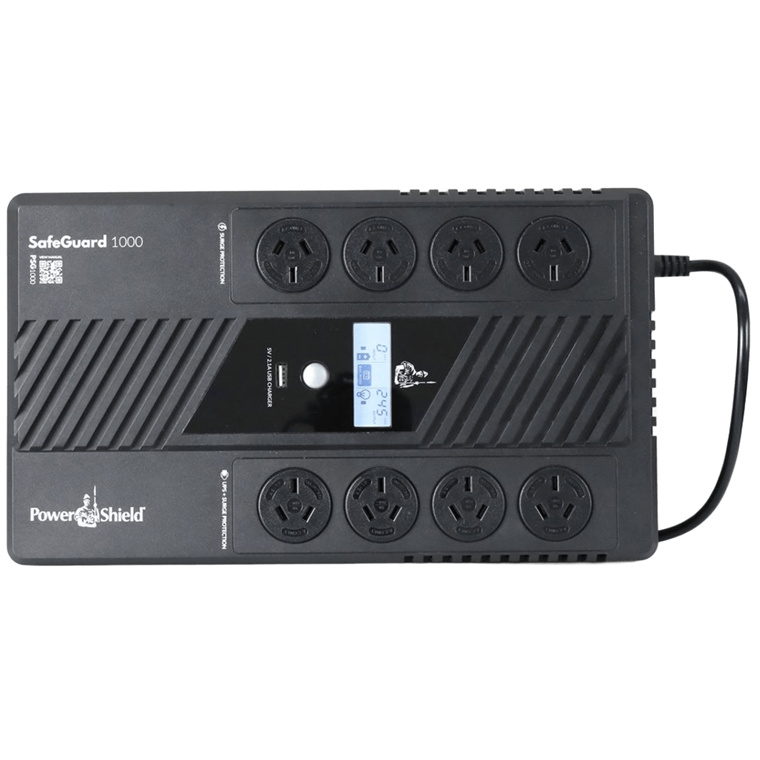

PowerShield PSG1000 SafeGuard 1000VA (600W) Line Interactive UPS
PowerShield PSG1000 SafeGuard 1000VA (600W) Line Interactive UPS
- Brand: PowerShield
- MPN: PSG1000
- Part #: UPSPSD01269
- UPC:
View all shipping info
- Brand: PowerShield
- MPN: PSG1000
- Part #: UPSPSD01269
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





PowerShield PSG1000 SafeGuard 1000VA (600W) Line Interactive UPS
- Brand: PowerShield
- MPN: PSG1000
- Part #: UPSPSD01269

Product URL: https://www.pbtech.com/au/product/UPSPSD01269/PowerShield-PSG1000-SafeGuard-1000VA-600W-Line-Int
Features
The PowerShield SafeGuard UPS Series remains one of the most popular UPS choices for workstations, telephone systems and security applications. The 1000VA model is line interactive, powerboard style UPSs that provide automatic voltage regulation, battery backup and surge protection in a convenient, wall mountable compact design.
HOT SWAPPABLE BATTERY
Easy hot-swappable, user replaceable battery that extends the service life of your UPS.
WALLMOUNTABLE / POWERBOARD STYLE
The SafeGuard Series are designed in a powerboard style that is ideal for physically restricted areas and can be conveniently wall mounted.
COLD START FUNCTION
SafeGuard UPSs can turn on equipment when there is no AC simply by connecting equipment and turning the UPS on. This is excellent when users need to power equipment for a short time.
EXCEPTIONAL SURGE PROTECTION
SafeGuard UPSs offer best in class surge protection.
EXTRA SURGE PROTECTED SOCKETS
The SafeGuard features Australian / New Zealand outlets which provide a high level of surge protection as well as a UPS output supply, to keep essential systems running during utility power outages. Additional Australian / New Zealand surge protected sockets are also provided for non-essential equipment.
USB CHARGING PORT
The SafeGuard 1000 features a 10W USB charging port for mobile devices.
OFF-MODE CHARGING
SafeGuard UPSs will continue to charge internal batteries whether the unit is on or off.
AUTOMATIC VOLTAGE REGULATION (AVR)
The AVR automatically regulates bucks/boosts unstable fluctuating utility voltages, bringing it within 10% of nominal voltage range and thereby protecting valuable equipment.
INBUILT BATTERY MANAGEMENT (HID)
- Plug and play on any computer or NAS drive
- Allows for orderly shutdown without software
USB COMMUNICATION WITH NETGUARD® SOFTWARE
The free, downloadable NetGuard software provides complete power monitoring. Parameters such as input/output voltage, battery capacity and load level are easily viewed. It also ensures a safe and orderly shutdown in
the event of a prolonged outage.
APPLICATIONS
- Small Office & home office equipment
- Stand-alone personal computers
- Work stations
- Telephone systems
- Point of sale equipment
Specifications
Model Number
PSG1000
Capacity
1000VA / 600W
Topology
Line Interactive
INPUT
Voltage
240VAC (Nominal)
Voltage range
177~290VAC
Frequency
50Hz or 60Hz (Auto-sensing)
OUTPUT
Output Voltage
240Vac ±10%
Frequency Range (Batt. Mode)
50Hz or 60Hz ±-1Hz
Transfer Time
6 msec (Typical)
Waveform (Batt. Mode)
Simulated Sine Wave
NZ Outlets
4 (UPS and Surge Protection)
NZ Outlets
4 (Full Time Surge Protection)
BATTERY
Capacity
12V*9Ah
Backup Time
25 min (1 PC load at 100W)
Typical Recharge Time
6-8 hours recover to 90% capacity
PROTECTION
Full Protection
Overcharge, discharge, short circuit and thermal protection
Surge Protection
475Joules /13000Amps - Best in its class
COMMUNICATIONS & MANAGEMENT
Interface
USB interface
Software
PowerShield® NetGuard® supports Windows, Linux, Unix & Mac
Visual Alarm
LED, AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload, Remaining Time
Audible Alarm
Battery Mode, Low Battery (Batt. Mode), Fault, Overload
PHYSICAL
Dimension D x W x H (mm)
345 x 200 x 100
Net Weight (kgs)
6.6
OPERATING ENVIRONMENT
Temperature
0-40°C
Humidity
0-90% RH (non-condensing)
Noise Level
<40dB (no fan)
COMPLIANCE
Safety/EMC
EN62040 - 1 - 2008, IEC60950 - 1: 2001, EN62040 - 2 2006
RoHS
Directive 2011/65/EU
