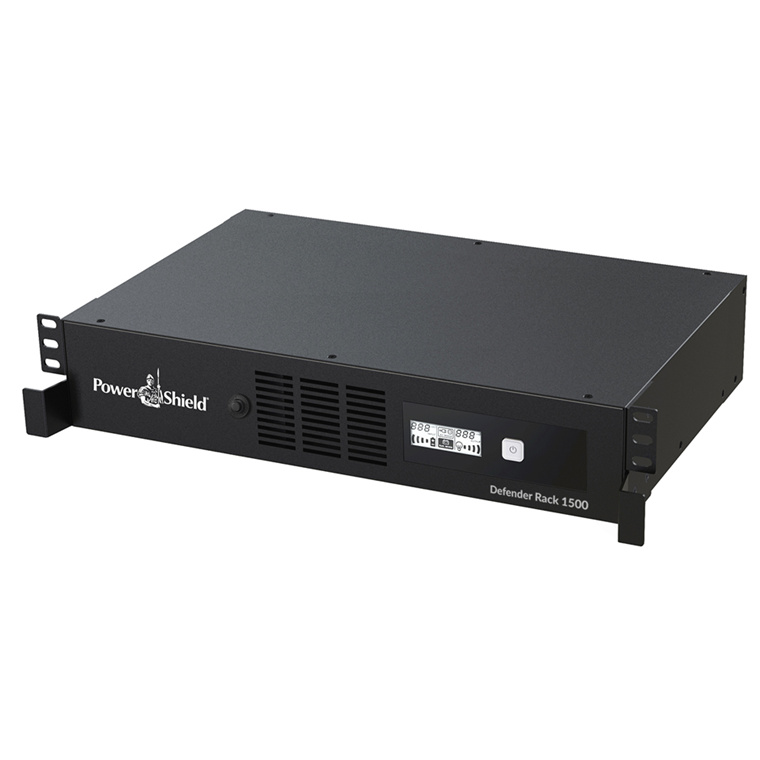

PowerShield PSDR1500 Defender 2RU Rackmount 1500VA (900W) Shallow Depth UPS Line Interactive with AVR
PowerShield PSDR1500 Defender 2RU Rackmount 1500VA (900W) Shallow Depth UPS Line Interactive with AVR
- Brand: PowerShield
- MPN: PSDR1500
- Part #: UPSPSD01665
- UPC:
View all shipping info
- Brand: PowerShield
- MPN: PSDR1500
- Part #: UPSPSD01665
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





PowerShield PSDR1500 Defender 2RU Rackmount 1500VA (900W) Shallow Depth UPS Line Interactive with AVR
- Brand: PowerShield
- MPN: PSDR1500
- Part #: UPSPSD01665

Product URL: https://www.pbtech.com/au/product/UPSPSD01665/PowerShield-PSDR1500-Defender-2RU-Rackmount-1500VA
Features
The Defender Rackmount expands the successful Defender Range by building the popular features into a Rack Mount UPS. At 300mm deep (1500VA), this is the perfect UPS for shallow wall mounted Comms cabinets.
This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
SURGE PROTECTION
Offering the best protection in its class, the Defender Rackmount protects against damaging surges.
INFORMATIVE LCD DISPLAY
Modern, stylish LCD display indicates voltage in/out, amount of load and remaining battery time.
AUTOMATIC VOLTAGE REGULATION
The AVR automatically regulates unstable fluctuating utility voltages, bringing them within 10% of nominal voltage range and thereby protecting valuable equipment.
COMPACT DESIGN
With a shallow depth of just 230mm for the 800VA model and 300mm for the 1500VA model, this rackmountable solution is perfect for fitting into any wall-mounted equipment box.
USER REPLACEABLE BATTERY
The Defender Rackmount Series features long-life, user-replaceable batteries that extend UPS lifespan and reduce e-waste, promoting a more sustainable solution.
SILENT OPERATION (on mains power)
Power Shield Engineers have designed the Defender range to run without fans on mains power. This makes it the perfect complement to Audio Visual.
HIGH EFFICIENCY
By removing the fans when on mains power, the efficiency of the UPS is improved for the vast majority of its working life.
AUTO RESTART WHEN AC RECOVERS
After an extended power outage the UPS will turn back on and resume equipment functionality once power has returned.
INTELLIGENT SNMP SLOT
Minimise response times with network connection for real-time event notifications. Monitor and control your UPS system without being onsite, as well as perform management tasks including scheduled shutdowns, startups, and reboots.
HID COMMUNICATION VIA USB
HID ensures a safe and orderly shutdown in the event of a prolonged power outage. HID can be used for simple management with Windows, Apple, Linux and NAS devices and a large variety of industrial controllers that support HID.
NETGUARD SOFTWARE COMMUNICATION VIA USB
The free, downloadable NetGuard software provides complete power monitoring. Parameters such as input/ output voltage, battery remaining time and load level are easily viewed. It also ensures a safe and orderly shutdown in the event of a prolonged outage.
OFF-MODE CHARGING
The plugged in UPS will continue to charge internal batteries whether the unit is on or off.
EXTRA SOCKETS

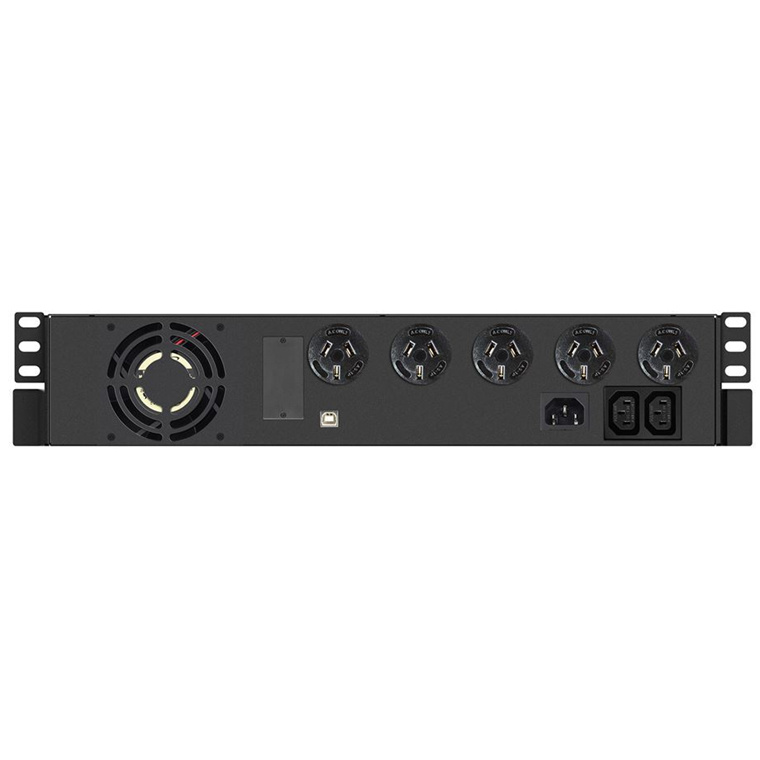

The 1500VA model includes five Australian sockets and two IEC outlets, all designed for easy access for larger plugs.
COLD START FUNCTION
The UPS can start on batteries only and support its load.
Specifications
Model Number
PSDR1500
Capacity
1500VA / 900W
Topology
Line Interactive
INPUT
Voltage
240VAC (Nominal)
Voltage Range 1
177-290 VAC
Frequency Range
50/60Hz ± 5Hz (auto sensing)
OUTPUT
Output Voltage
240 VAC ± 10%
Frequency Range (Batt. Mode)
50Hz or 60Hz ±1Hz
Transfer Time
6ms (Typical)
Waveform (Batt. Mode)
Simulated Sine Wave
Australian Outlets - UPS & Surge Protection
5
IEC Outlets
2x 10 Amp
BATTERY
Battery Type & Number
12V / 9Ah (x2)
Typical Recharge Time
6 hours recover to 90% capacity
Backup Time (50% Load)
8 min
PROTECTION
Full Protection
Overload, discharge and overcharge protection
Surge Protection
312Joules / 6500Amps
COMMUNICATIONS & MANAGEMENT
Interface
USB as standard, Intelligent slot for PSSNMP
Software
NetGuard® supports - Windows®, Linux, Unix and Mac (Free Download)
HID
Supports Windows, Apple, Linux, NAS and various industrial controllers
LCD Alarm
AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload
Audible Alarm
Battery Mode, Low Battery (Batt. Mode), Fault, Overload
PHYSICAL
Dimension L x W x H (mm)
300 x 438 x 86
Net Weight (kgs)
13.8
OPERATING ENVIRONMENT
Temperature
0-40°C
Humidity
0-90% RH (non-condensing)
Noise Level
<40dB (no fan)
COMPLIANCE
Safety/EMC
EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006
RoHS
Directive 2011/65/EU
