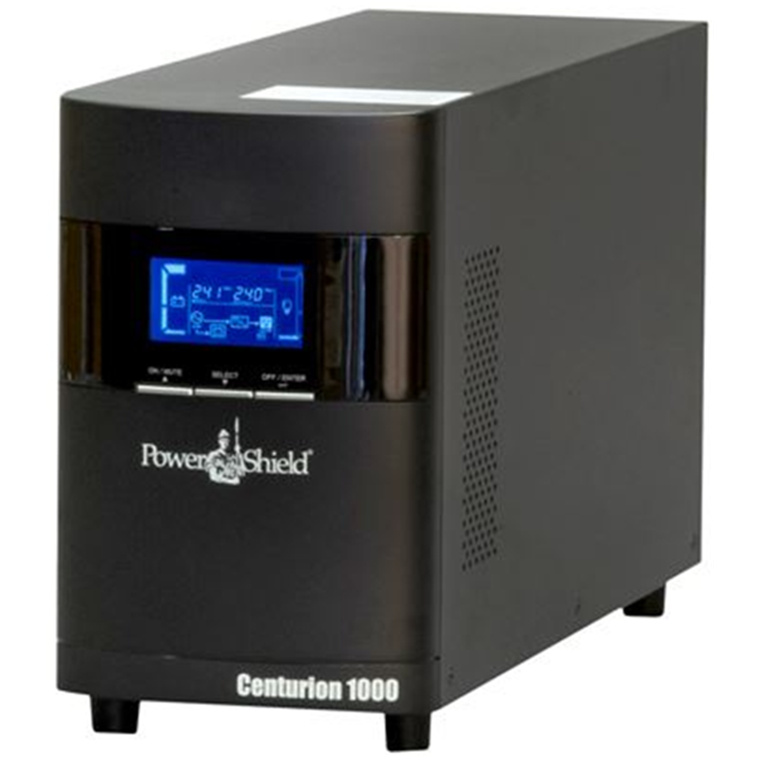

PowerShield PSCE1000 Centurion Tower 1000VA/ 800W - Double Conversion True Online UPS - 2xNZ Outlets+2xIEC Outlets - EBM Compatible for Extended Runtime, Programmable Power Outlets
PowerShield PSCE1000 Centurion Tower 1000VA/ 800W - Double Conversion True Online UPS - 2xNZ Outlets+2xIEC Outlets - EBM Compatible for Extended Runtime, Programmable Power Outlets
- Brand: PowerShield
- MPN: PSCE1000
- Part #: UPSPSD1000
- UPC:
View all shipping info
- Brand: PowerShield
- MPN: PSCE1000
- Part #: UPSPSD1000
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Excellent device works as expected"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - On-Line





PowerShield PSCE1000 Centurion Tower 1000VA/ 800W - Double Conversion True Online UPS - 2xNZ Outlets+2xIEC Outlets - EBM Compatible for Extended Runtime, Programmable Power Outlets
- Brand: PowerShield
- MPN: PSCE1000
- Part #: UPSPSD1000

Product URL: https://www.pbtech.com/au/product/UPSPSD1000/PowerShield-PSCE1000-Centurion-Tower-1000VA-800W?is-review=1
Features
PowerShield Centurion Tower 1000VA/ 800W. Double Conversion True Online UPS. 2xNZ Outlets+2xIEC Outlets. EBM Compatible for Extended Runtime , Programmable Power Outlets.
The Centurion is designed to protect the critical computer, communications, industrial, medical and other mission critical equipment. A true online double conversion UPS, the Centurion is designed to guarantee trouble-free operation of protected equipment in any harsh electrical environment. Versatile management and hardware options offer the flexibility to build up a power protection solution to fit any application. This range now comes with two sets of sockets on the back, one row of output sockets are programmable meaning that you can shed less important loads. This will leave additional valuable backup time to the equipment that is most critical. This UPSp includes a stylish, informative LCD display.
- True Online Double Conversion
- Wide input voltage range (110-300 VAC)
- Input power factor correction 0.98
- 50Hz/ 60Hz frequency converter mode
- Programmable power outlets
- Emergency power off function (EPO)
- Optional Eco-mode operation for energy saving
- Generator compatible
- Backup time for all models is easily extended by simply plugging additional battery banks
- Charger capacity expansion to 9A for long-run models
- USB, RS232, SNMP and AS400 multiple communications available
- External maintenance bypass available for all models
- N + X parallel redundancy available for 6K/ 10K models
- Monitoring and Shutdown Software included
Specifications
Voltage Range
Low Line Transfer
160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5% (based on load percentage 100% - 80% / 80% - 70% / 70% - 60% / 60% - 0%)
Low Line Comeback
175 VAC ± 5%
High Line Transfer
300 VAC ± 5%
High Line Comeback
47.5Hz ~ 52.5Hz or 57Hz ~ 63Hz
INPUT
Frequency Range
47.5Hz ~ 52.5Hz or 57Hz ~ 63Hz
Phase
Single phase with ground
Power Factor
0.98
OUTPUT
AC Voltage Regulation (Batt. Mode)
± 3%
Frequency Range (Synchronized Range
48Hz ~ 52Hz or 57Hz ~ 63Hz
Frequency Range (Batt. Mode)
50Hz ± 0.25Hz or 60Hz ± 0.3Hz
Load Crest Factor
3:1
Harmonice Distortion
3% THD (Linear Load) 6% THD (Non-linear Load)
Transfer
AC Mode to Batt. Mode
Zero
Inverter to Bypass
4ms (Typical)
Waveform (Batt. Mode)
Pure Sinewave
EFFICIENCY
ECO Mode
85%
Battery Mode
83%
BATTERY
Battery Type
12Vx9AH(x3)
Typical Recharge Time
4 Hours to Recover to 90% Capacity
Charging Time (Max.)
1.0A
Charging Voltage
41.0 VDC ± 1%
PROTECTION
Full Protection
Overload, discharge, thermal, short circuit and overcharge protection
COMMUNICATIONS & MANAGEMENT
Interface
USB or RS232 as standard, Intelligent slot for PSSNMP or PSA400 dry contact
Software
Power Shield NetGuard Software - supports Windows based operating Systems, Linux, Unix & Mac
LCD Display / Alarm
UPS Status, Load Level, Battery Level, Input/Output Voltage, Battery Time Remaining and Fault Indicators
Audible Alarm
Battery Mode, Low Battery, Overload, Fault
PHYSICAL
Dimenesion (D x W x H)
396 x 145 x 240mm
Weight
14kg
OPERATING ENVIRONMENT
Temperature
0°C - 40°C
Humidity
20-90% (RH Non-condensing)
Noise Level
Less than 45dBA @ 1 Meter
COMPLIANCE
Safety
EN62040-1-1 2003, IEC60950-1-1
EMS
EN62040-2 2006
RoHS
Directive 2001 / 65 / EU
