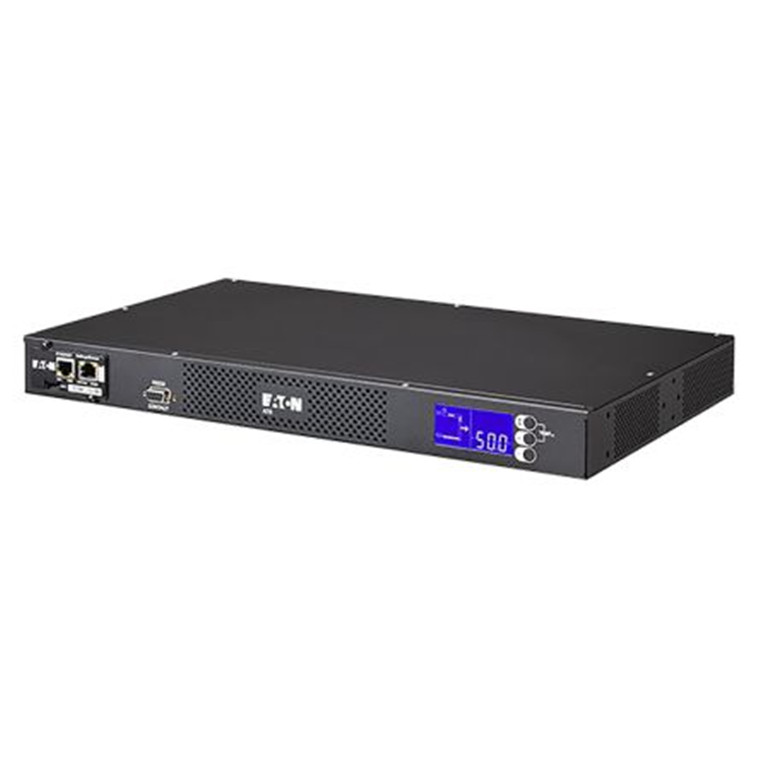

Eaton EATS16N ATS w/Network Card - (2)C20 16A Input, (8)C13, (1)C19 Outlets
Eaton EATS16N ATS w/Network Card - (2)C20 16A Input, (8)C13, (1)C19 Outlets
- Brand: Eaton
- MPN: EATS16N
- Part #: UPSPWR3020206
- UPC: 743172079411
View all shipping info
- Brand: Eaton
- MPN: EATS16N
- Part #: UPSPWR3020206
- UPC: 743172079411
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other UPS Accessories





Eaton EATS16N ATS w/Network Card - (2)C20 16A Input, (8)C13, (1)C19 Outlets
- Brand: Eaton
- MPN: EATS16N
- Part #: UPSPWR3020206
- UPC:743172079411

Product URL: https://www.pbtech.com/au/product/UPSPWR3020206/Eaton-EATS16N-ATS-wNetwork-Card---2C20-16A-Input-8
Features
The Eaton Automatic Transfer Switch (ATS) is a high availability switch designed for providing redundant power for sensitive equipment. Powered by two independent power sources and automatically makes a rapid switch from one source to the other when the power supply used to power its connected load fails.
This ATS is efficient and reliable
Provides power redundancy to IT equipment
Alternative to expensive redundant power supplies available from networking equipment vendors
Compact, 1U rack form factor
Seamlessly switches from one power source to the other
Network management on ATS 16 Netpack versions
LCD with metering and basic configuration capabilities
Input Plug: (2) C20
Outputs: (8) C13, (1) C19
The ATS 16 Netpack provides network connectivity. This allows users to access, configure and manage units from remote locations
Specifications
General
Nominal current
16 A
Input/Ouput
Nominal voltage/input frequency
208/220/230/240 V ; 50/60 Hz
Performance
Typical transfer time
8 ms
Safety
IEC/EN 62310-1, IEC/EN 60950-1
EMC
IEC/EN 62310-2
Marking
CE
Connection
Inputs
2 IEC C20 + 2 input cables
Outputs
8 IEC C13 + 1 IEC C19
Communication and user interface
User interface
LCD
Network communication
Yes
Dimensions and weight
Dimensions H x W x D
43 x 430 x 250 mm
Weight
3.5 kg
Customer Service & Support
2 years guarantee; Standard exchange of the product
