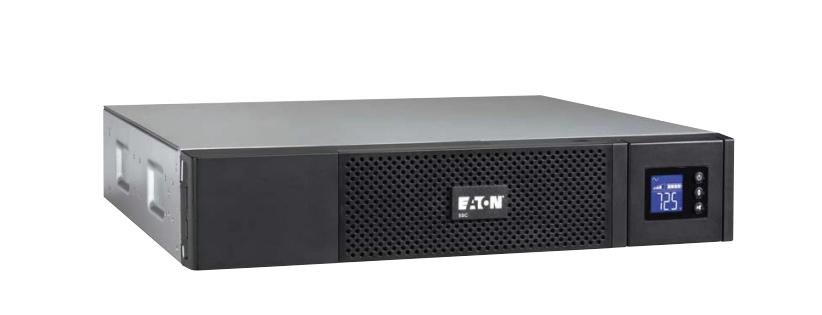

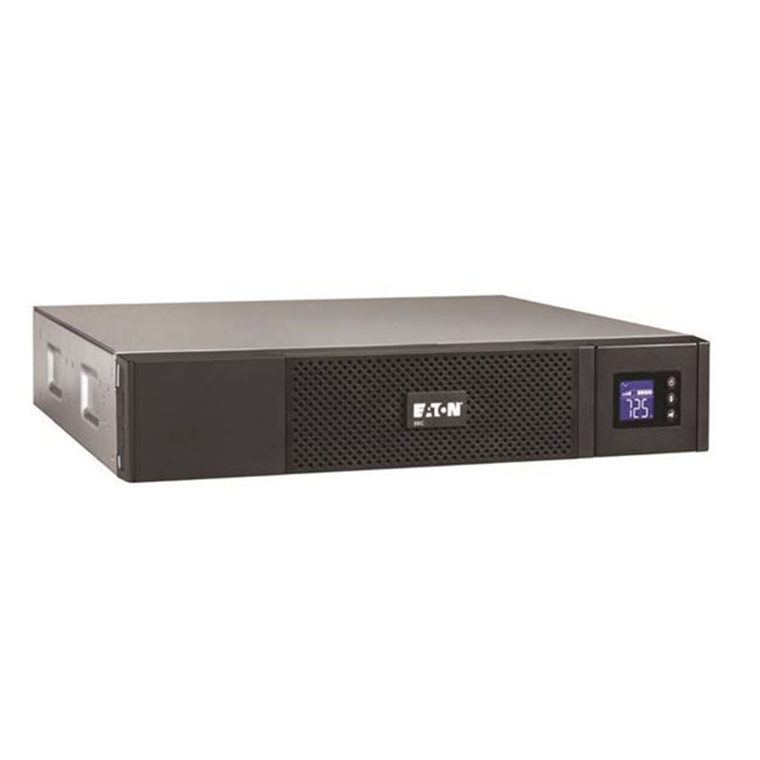

Eaton 5SC 1500VA / 1050W 2RU Short Depth Rack Ups - 8x IEC Sockets
Eaton 5SC 1500VA / 1050W 2RU Short Depth Rack Ups - 8x IEC Sockets
- Brand: Eaton
- MPN: 5SC1500IR-AU
- Part #: UPSPWR4729999
- UPC:
View all shipping info
- Brand: Eaton
- MPN: 5SC1500IR-AU
- Part #: UPSPWR4729999
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





Eaton 5SC 1500VA / 1050W 2RU Short Depth Rack Ups - 8x IEC Sockets
- Brand: Eaton
- MPN: 5SC1500IR-AU
- Part #: UPSPWR4729999

Product URL: https://www.pbtech.com/au/product/UPSPWR4729999/Eaton-5SC-1500VA--1050W-2RU-Short-Depth-Rack-Ups
Features
Eaton 5SC 1500VA / 1050W 2RU Short Depth Rack Ups - 8x IEC Sockets
Short depth format for easy integration in small cabinets
Ideal for protecting
- Rack or Tower servers
- NAS, Network equipments
- ATMs, Ticket machines, Kiosks

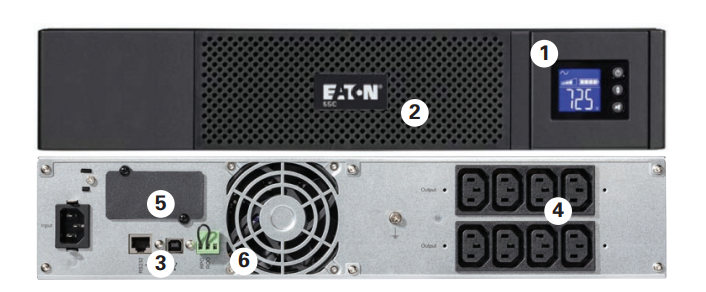

Layout
1 LCD interface
2 Panel for batteries replacement
3 USB port + Serial port
4 8 IEC 10A
5 Communication card slot
6 ROO/RPO terminal
Manageability
- The LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Essential configuration capabilities are also offered for output voltage, audible alarm and sensitivity.
- The 5SC offers USB and serial connectivity. The USB port is HID-compliant for automatic integration into Windows, Mac OS and Linux.
- A slot for an optional communication card (including SNMP/ Web card or relay contact card) is available on a rack and R/T models. Eaton's Intelligent Power® Software Suite ensures compatibility with all major OS including virtualization software.
Reliability
- Pure sinewave output: When operating in the battery, mode the 5SC provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Buck and Boost operation corrects a wide range of input voltage variations through continuous regulation, without the use of batteries.
- Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging system that extends battery life by up to 50%.
Flexibility
- Designed to fit into short depth wall enclosures down to 500mm, 2 post racks or to be wall-mounted.
- Rail kits and ANZ Input cord are included as standard.
- Easy battery replacement from the front panel to extend UPS life.
Specifications
Technical
Rating (VA/W)
1500VA/1050W
Format Rack
2U
Electrical characteristics
Technology
Line interactive High Frequency (Sinewave, Booster, Fader)
Input voltage range without using batteries
184 to 276 V
Output voltage and frequency
230V (-10/+6 %) (Adjustable to 220/230/240 V), 50/60 Hz ± 1Hz (Autosensing)
Connections
Input
1 IEC C14 (10A)
Outputs for Rack or R/T models
8 IEC C13 (10A)
Batteries
Typical backup times @50 and 70% load*
13/8
Battery management
ABM, automatic battery test, deep discharge protection
Communication
Communication ports
1 USB port + RS232 serial port (USB and RS232 cannot be used simultaneously)
ROO/RPO + card slot for Network-M2 card or Relay-MS card
Operating conditions, standards and approvals
Operating temperature
0 to 40°C
Noise level
<45dB
Safety
IEC/EN 62040-1, UL1778
EMC
IEC/EN 62040-2
Approvals
CE /CB report (TUV), cTUVus ,RCM
Dimensions H x W x D in mm/ Weight
Dimensions
86.2 x 440 x 405 mm
Weight
17.8kg
