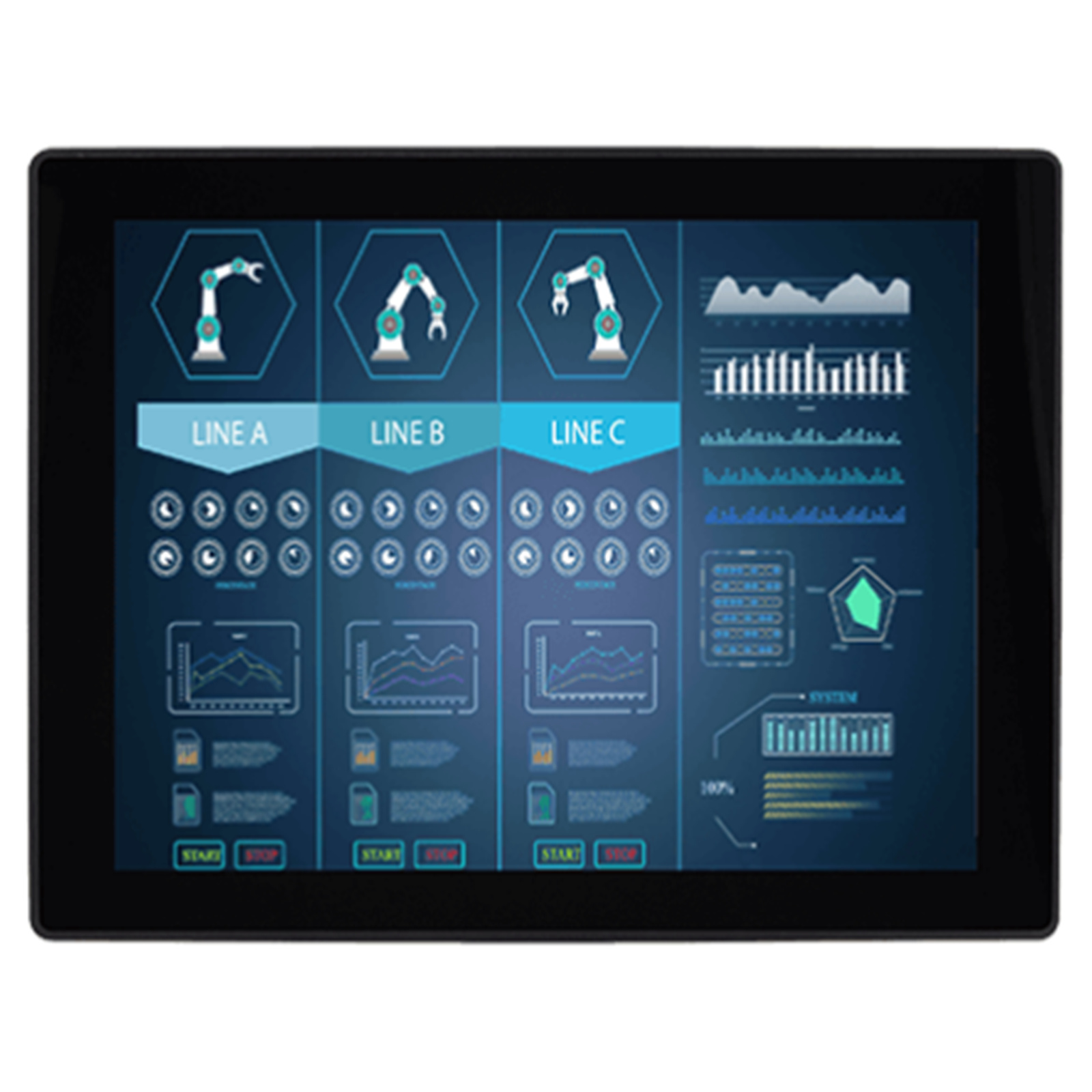

Winmate G-WIN R12L100-PCM2(HB) 12.1" Multi-Touch Chassis Industrial LCD Displays 1000 nits, PCAP touch, 1xSpeaker, 1xVGA, VESA mount
- Brand: Winmate
- MPN: R12L100-PCM2(HB)
- Part #: WKAWMAR12L1002

Product URL: https://www.pbtech.com/au/product/WKAWMAR12L1002/Winmate-G-WIN-R12L100-PCM2HB-121-Multi-Touch-Chass
Features
R12L100-PCM2(HB)
- 12.1", 1024 x 768, industrial lcd displays
- VGA and HDMI input
- Chassis
- VESA mount
Low Power Consumption
This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.
Easy Mounting
This industrial display comes with a universal VESA mounting option for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.
High Reliability for Various Industrial Applications
Winmate industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factory environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.
Outstanding Image Quality
Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing
Display Ports and Customization
Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.
Specifications
Display
Touch / Glass
Projected Capacitive Multi Touch Screen
Size
12.1 inches
Resolution
1024x768
Panel Brightness
1000 nits
Contrast Ratio
1000:1
View Angles
89,89,89,89
Display Color
16.2M Colors
Active Area
245.76x184.32 mm
Environment
Operating Humidity
10% to 90% (Non-Condensing)
Operating Temperature
0~50°C
Storage Temperature
-20°C~60°C
Shock
MIL-STD-810G Method 516.6
Vibration
MIL-STD-810G Method 514.6
IP rating
Front IP65
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB for Touch Screen
Video
1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)
Audio
Audio line in (3.5mm) (Optional)
2 x Speaker (Optional)
Mechanical
Dimension
296.2 x 267.2 x 45.5 mm
Weight
2.1 kg
Mounting
VESA Mount
Enclosure
Metal
Cooling System
Fanless Design
Accessory
Accessory
1 x VGA cable
1 x HDMI cable
100~240V AC to DC Adapter
Power Cord
Manual
VESA screws(Varies by product)
Optional Accessory
Remote Controller (Optional,Varies by product)
Power
Power Rating
24V DC in
Control
Button
5 Keys: - , + , Power , Esc , Enter
