PE100A - Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor
- Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor
- 16G on board eMMC and Micro-SD card for storage capacity
- Support Windows 10 IoT Core and Linux Ubuntu/Yocto/Android OS
- Wide Temperature Range: -20~60°C

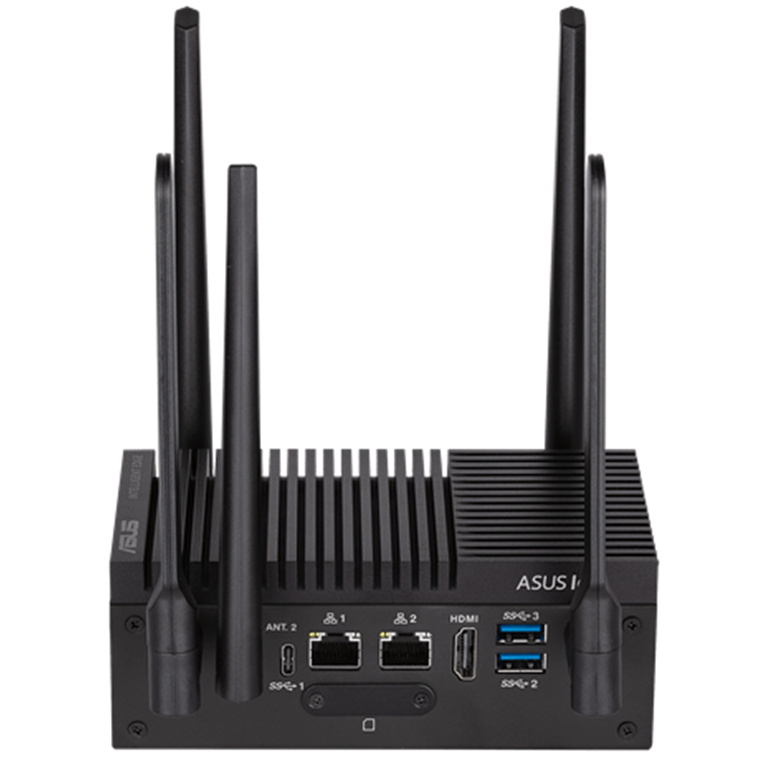

PE100A is an edge computer based on a Pico-ITX motherboard that's optimized for TCO, supported by a secondary I/O board for extra functionality. It's powered by an NXP® i.MX 8M system-on-a-chip (SoC) processor that's based on the Arm® Cortex-A53 architecture with up to 1.3 GHz and delivers efficient performance with low power consumption. PE100A also features 4 GB LPDDR4 onboard memory and 16GB onboard eMMC, and includes two Ethernet ports, three USB ports and one HDMI on the front side. Two COM ports, with RS232/RS485/CAN bus, and one digital DI/DO are also available as optional interfaces at the rear. Inside, PE100A's mainboard also supports an M.2 E-key connector and micro SD card connector, while the I/O board offers Mini PCIe®/mSATA and a Nano-SIM socket interface.
The new computer is also engineered with a wide range of power inputs (12~24V), operating temperatures (-20°~60°) to serve as an edge-to-cloud gateway device for data aggregation, processing and forwarding. The TCO-optimized SBC is ideal for embedded automation solutions and diverse smaller-scale IoT applications. ASUS Edge computer also secure for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.
Specifications
Processor System
CPU
NXP® i.MX 8M ARM Cortex-A53 core
MAX.SPEED
1.3 GHz
L2 Cache
1MB
Chipset
Integrated
Memory
Technology
LPDDR4
Max.
4GB on board memory
Display
HDMI
1, , Supports HDMI 2.0 up to 3840 x 2160 @ 60 Hz
Expansion Slot
Mini PCIe
1 (support mSATA)
M.2
1 x M.2 2230 E Key for BT/WiFi module (cooperate with Google Edge TPU Module)
SIM
1 x Full/Half Length Mini PCIe slot with an on-board Nano-SIM socket
Others
1 x Micro-SD Card connector
Ethernet
Speed
10/100/1000Mbps
Controller
1 x Realtek® RTL8211, 1 x Intel I211-AT
Connector
2 x RJ-45
Storage
eMMC
1 x 16GB onboard eMMC

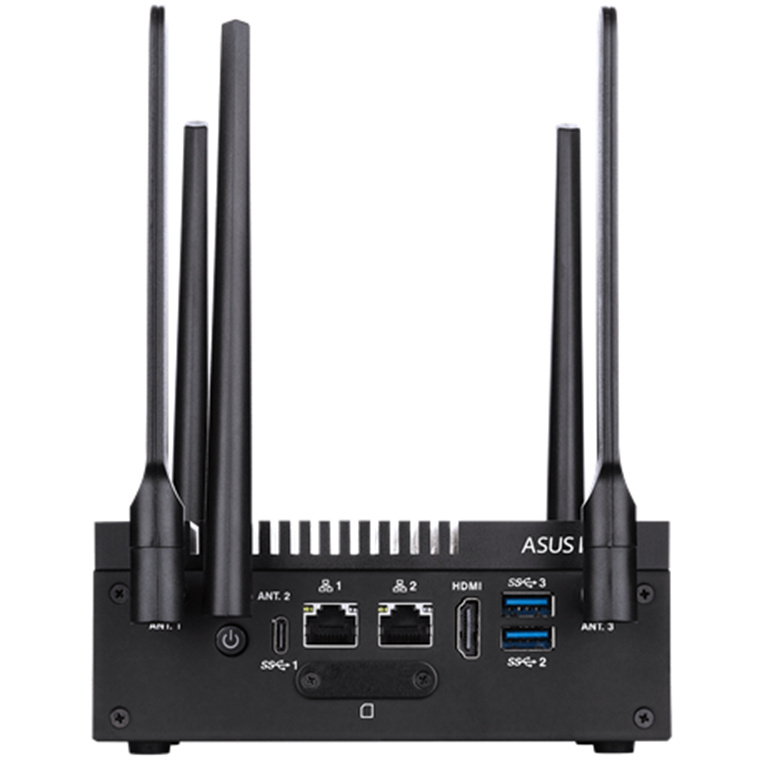

Front I/O
HDMI
1
USB3.2 Gen1
2 @ type A, 5V/2A
1 @ type C OTG, 5V/1.5A
Ethernet
2

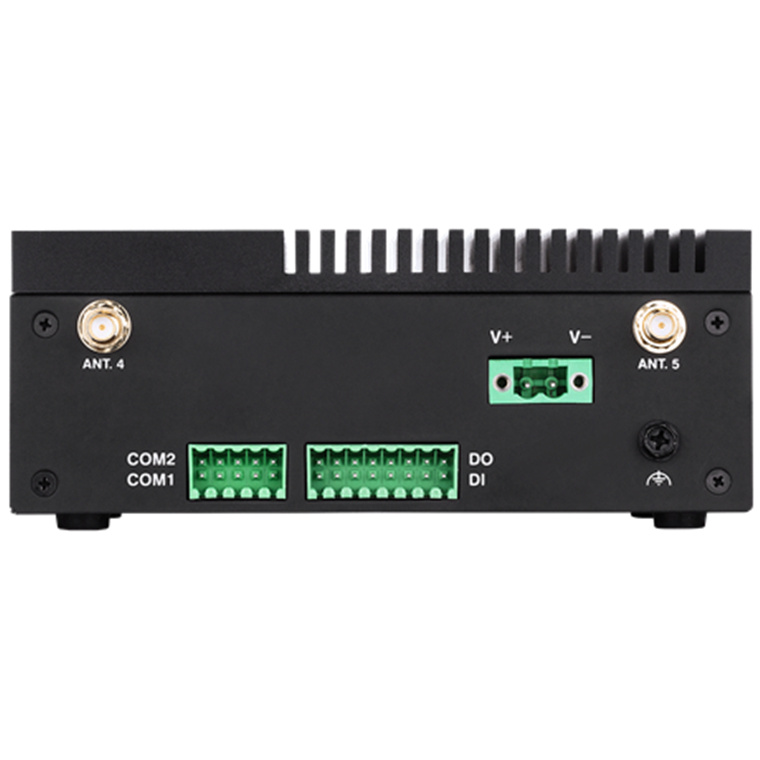

Rear I/O
Terminal Block
1 x COM terminal
(Support 2 x COM headers; 1 x RS-232/422/485, 1 x RS-232/CANBus)
1 x DIO terminal (4*DI, 4*DO)
Power Connector
DC Power input
Watchdog Timer
S/W
Setup by software
Security
TPM Module (Option)
TPM 2.0 power by Nuvoton NCPT 750
Crypto Module
Cloud security power by Microchip ATECC608A/NXP SE050 (Optional)
Manageability
Manageability
WOL
Power
Power Type
DC power input
Voltage
12-24V DC input
Operating System
Microsoft Windows
Windows 10 IoT Core
Linux
Linux Yocto/Ubuntu
Android
Android 11
Environment
Operating Temperature
-20~60°C
Non-Operating Temperature
-40~85°C
Relative Humidity
10 ~ 95%
Dimension
Mounting
Wall-Mount, DIN-Rail (Optional)
Weight
0.775 KG
Form Factor
145(w)x78(L)x55.5(H)mm
