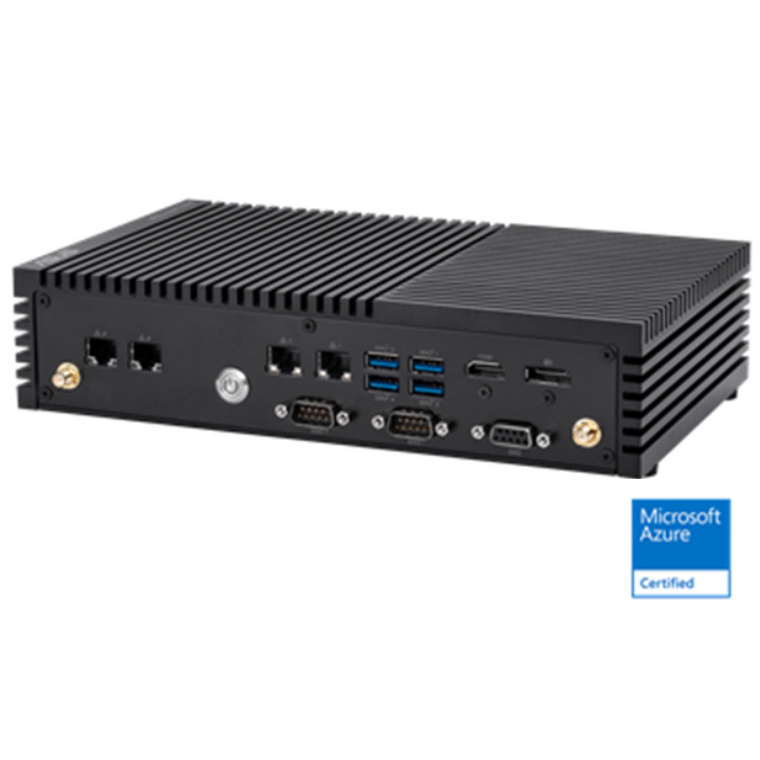

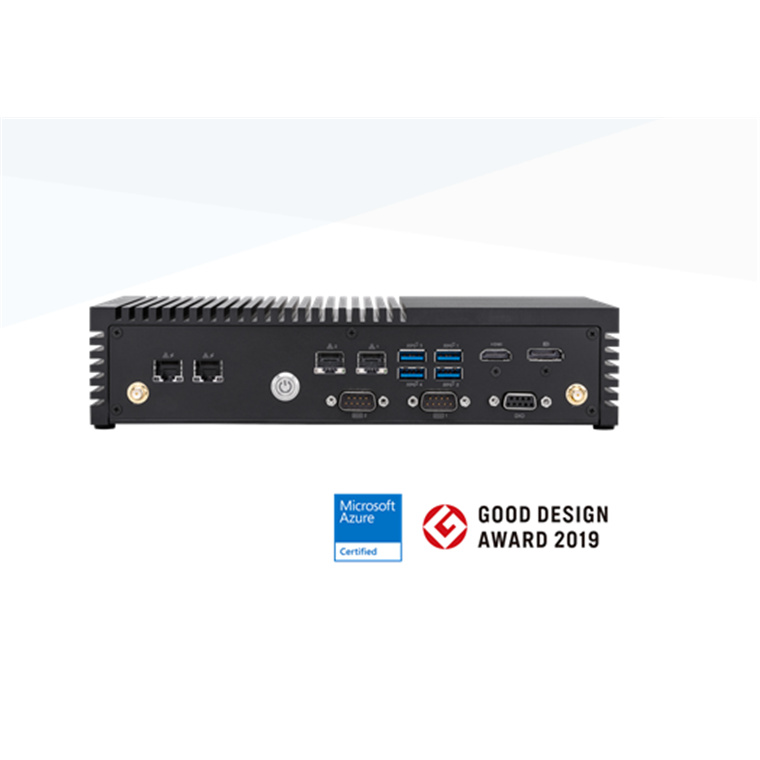

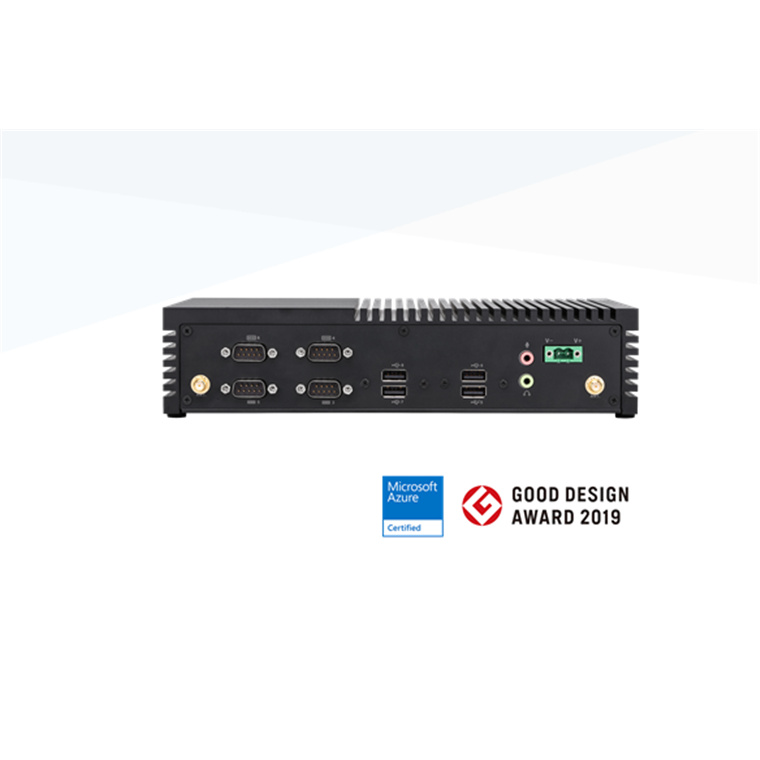

ASUS IoT Intelligent Computer PE200U I7, 8G 256GB, with mini PCIe slot, DP, HDMI, Dual-LAN, Multiple COM, Wide range of power inputs (12~24V) and operating temperatures (-20°~60°)
ASUS IoT Intelligent Computer PE200U I7, 8G 256GB, with mini PCIe slot, DP, HDMI, Dual-LAN, Multiple COM, Wide range of power inputs (12~24V) and operating temperatures (-20°~60°)
- Brand: ASUS IoT
- MPN: PE200U-I7
- Part #: WKSASUPE200UI7
- UPC:
View all shipping info
- Brand: ASUS IoT
- MPN: PE200U-I7
- Part #: WKSASUPE200UI7
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Computers





ASUS IoT Intelligent Computer PE200U I7, 8G 256GB, with mini PCIe slot, DP, HDMI, Dual-LAN, Multiple COM, Wide range of power inputs (12~24V) and operating temperatures (-20°~60°)
- Brand: ASUS IoT
- MPN: PE200U-I7
- Part #: WKSASUPE200UI7

Product URL: https://www.pbtech.com/au/product/WKSASUPE200UI7/ASUS-IoT-Intelligent-Computer-PE200U-I7-8G-256GB-w
Features
PE200U - Intel® Core™ i7 Processor Intelligent Edge Computer with mini PCIe slot,DDR4 2400MHz, DP, HDMI, Dual-LAN, Multiple COM, 12-24V DC
- Achieve high performance with full CPU utilization and fan-less thermal
- Wide range of power inputs (12~24V) and operating temperatures (-20°~60°)
- Diverse I/O interface and expansion options for multiple markets
- World-class after-sales service and long-term availability guarantee
- A high-quality, TCO-optimized solution for AIoT computing
- Supports I2C, SMBus and GPIO
ASUS PE200U is an Intelligent Edge Computer with a high-quality, TCO-optimized solution for AIoT computing. PE200U includes up to 6 COM ports(2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. PE200U is designed for high performance and silent operation in harsh environment. It's capable of achieving full CPU utilization while being cooled by a fanless thermal solution.
ASUS Edge Computer offers enhanced features to ensure optimal performance and the flexibility to adapt to the surrounding environment, configure easily with a wide range of power inputs (12~24V), operating temperatures (-20°~60°), diversified I/O interface and expansion for multiple vertical markets. ASUS Edge computer is built for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability - your investment for the duration of the product lifecycle is maximized.
Specifications
CPU
Intel® Core™ i7-8565U Processor (formerly Whiskey Lake-U)
Chipset
Integrated
Memory
8GB (Up to 16GB) DDR4
Expansion Slots
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device
1 x M.2 Socket 3 with M key, type 2242 (PCIe x2 mode & SATA mode)
1 x Full-Length Mini PCIe slot with an on-board Nano-SIM socket
Storage
1 x SATA 6Gb/s connecter
1 x mSATA slot (shared with Mini PCIe)
1 x Micro SD Card slot (on-board)
Display
Multi-VGA output support :DP/HDMI ports
USB
4 x USB3.1 Gen2 Type-A ports
4 x USB2.0 connectors (optional)
Serial Port
2 x RS-232/422/485
4 x RS-232 (optional)
Internet
Dual RJ45 connectors (1 x Intel® I219V, 1 x Intel® I211AT)
Audio
Realtek ALC887-VD2 High Definition Audio CODEC
Internal I/O
1 x Chassis fan header
1 x Clear CMOS jumper
1 x LPC Debug header
1 x SMBus header
1 x I2C header
GPIO
1 x 8bit GPIO
TPM
TPM 2.0 (optional discrete module)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, Last Modified Log, ErP
Watch dog timer
Yes
Power requirement
12-24V DC input
Operation Temperature
-20~60°C (w/ selected memory and storage)
Non-Operation Temperature
-40~85°C
Relative Humidity
0%~85%
Operating System Support
Windows® 10 (64-bit) / Windows® 10 IoT Enterprise / Linux
Form Factor
254 x 147 x 57 mm
