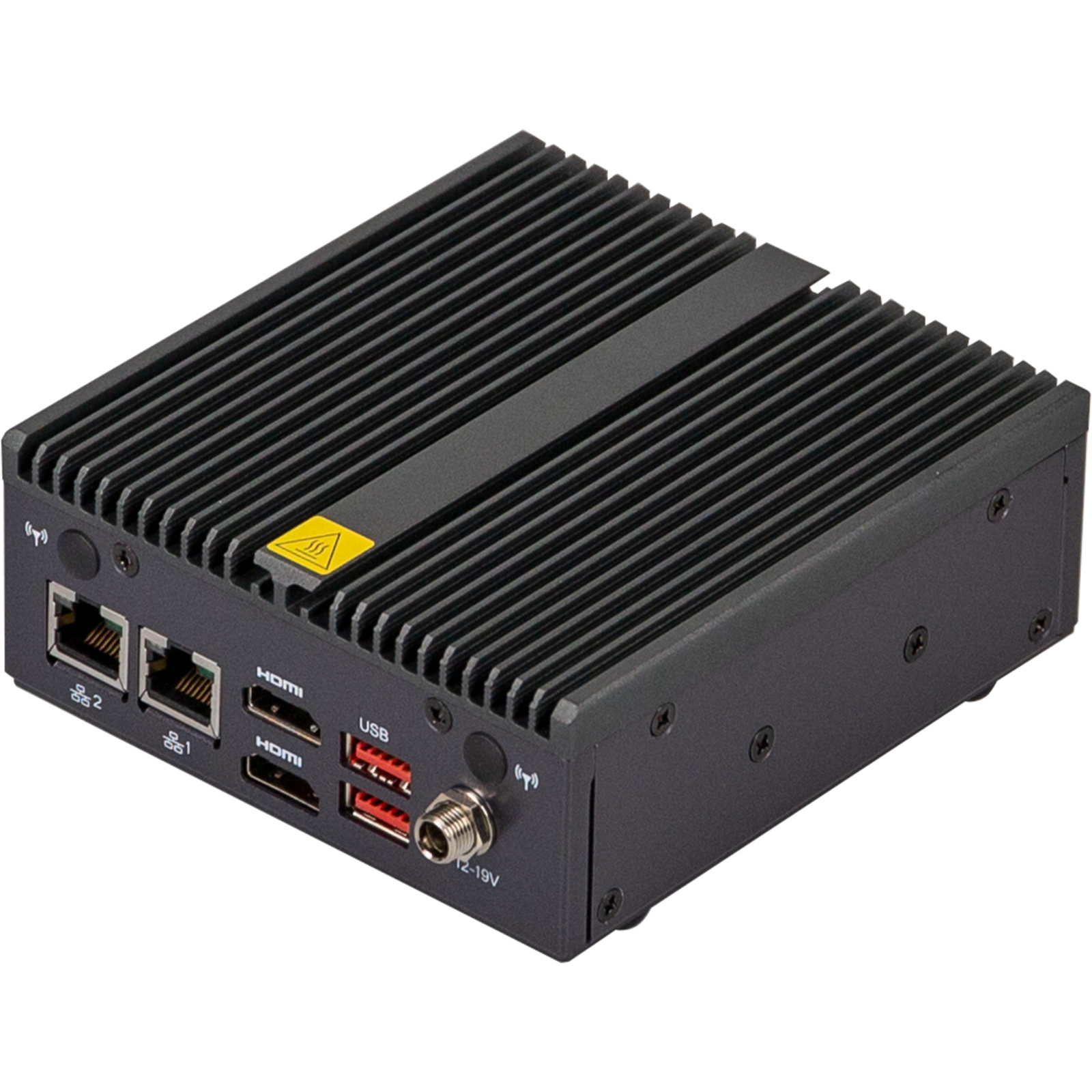

GigaIPC QBiX-EHLA6412-A1 Industrial system with Intel Celeron J6412 Processor / Lockable DC Connector/ 2 x HDMI / 2 x LAN ports/ 1 x Headphone Jack
GigaIPC QBiX-EHLA6412-A1 Industrial system with Intel Celeron J6412 Processor / Lockable DC Connector/ 2 x HDMI / 2 x LAN ports/ 1 x Headphone Jack
- Brand: GigaIPC
- MPN: 6BQB6412AMR-SI
- Part #: WKSGICQ20011
- UPC:
View all shipping info
- Brand: GigaIPC
- MPN: 6BQB6412AMR-SI
- Part #: WKSGICQ20011
- UPC:
COMBO DEALS: Frequently Bought Together





$55.90 +GST
$61.49


Transcend Embedded M.2 2280 SSD, 256GB, SATA3 B+M Key, 3D TLC BiCS5, PE: 3K, wide temp
$79.04 +GST
$86.94
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Computers





GigaIPC QBiX-EHLA6412-A1 Industrial system with Intel Celeron J6412 Processor / Lockable DC Connector/ 2 x HDMI / 2 x LAN ports/ 1 x Headphone Jack
- Brand: GigaIPC
- MPN: 6BQB6412AMR-SI
- Part #: WKSGICQ20011

Product URL: https://www.pbtech.com/au/product/WKSGICQ20011/GigaIPC-QBiX-EHLA6412-A1-Industrial-system-with-In
Features
- Intel® Celeron® J6412 Processor
- 1 x COM Port (RS-232)
- Single Channel DDR4, 1 x SO-DIMM
- 2 x HDMI for Dual display
- 2 x GbE LAN Ports
Specifications
Dimension
118W x 109.4D x 44.4H(mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W
Memory
1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB
Support Single Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors :
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz(2 independent display outputs)
Audio
Realtek® Audio Codec
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Front I/O
2 x USB 3.2 Gen 2x1
1 x COM Port (RS-232)
1 x Combo Audio Jack (Headphone & Headset)
1 x Power button with LED
Rear l/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x HDMI
2 x External Antenna Holes (Optional)
1 x Screw Type DC Jack
Power
+12V~19VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Single Box size: 258 x 191 x 130 (mm)
Single Box weight: Approx. 1.7kg
Including:
Power Cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)
VESA Bracket x 1 (P/N: 25HB1-TPL021-S8R)
VESA Screws x 1 (P/N: 25KSD-000001-S4R)
Order Information
6BQB6412AMR-SI (Box packing)
