GigaIPC QBiX-Pro-APLB4200H-B1 Industrial system with Intel Pentium N4200 Processor 1 x GPIO (8 bits)
- Brand: GigaIPC
- MPN: 6BQP4200BMR-SI
- Part #: WKSGICQ20040

Product URL: https://www.pbtech.com/au/product/WKSGICQ20040/GigaIPC-QBiX-Pro-APLB4200H-B1-Industrial-system-wi
Features
QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-APLB4200H-B1 is powered by Intel® Pentium® N4200 processor, to provide "low power but high performance" for energy-saving requests. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C and rich I/O interfaces, such as 3 x COM Ports, 1 x GPIO (8 bits) and more as well as expansion M.2 slots to fit in various applications. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
- System Size: 178W x 125D x 52.7H(mm)
- Intel® Pentium® N4200 Processor
- Dual Channel DDR3L, 2 x SO-DIMMs
- HDMI, D-sub for Dual display
- 2 x GbE LAN Ports
Specifications
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Pentium® N4200 Processor
14nm, 4 cores, 4 threads, up to 2.5 GHz
TDP 6W
Chipset
SoC
Memory
2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Dual Channel DDR3L 1866MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® HD Graphics 505:
1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (with compatible displays)
(2 independent display outputs)
Audio
Realtek® ALC897
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2242 M.2 M-Key (SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
1 x HDMI
1 x VGA
1 x Power switch
1 x Power & HDD LED
1 x Headphone Jack

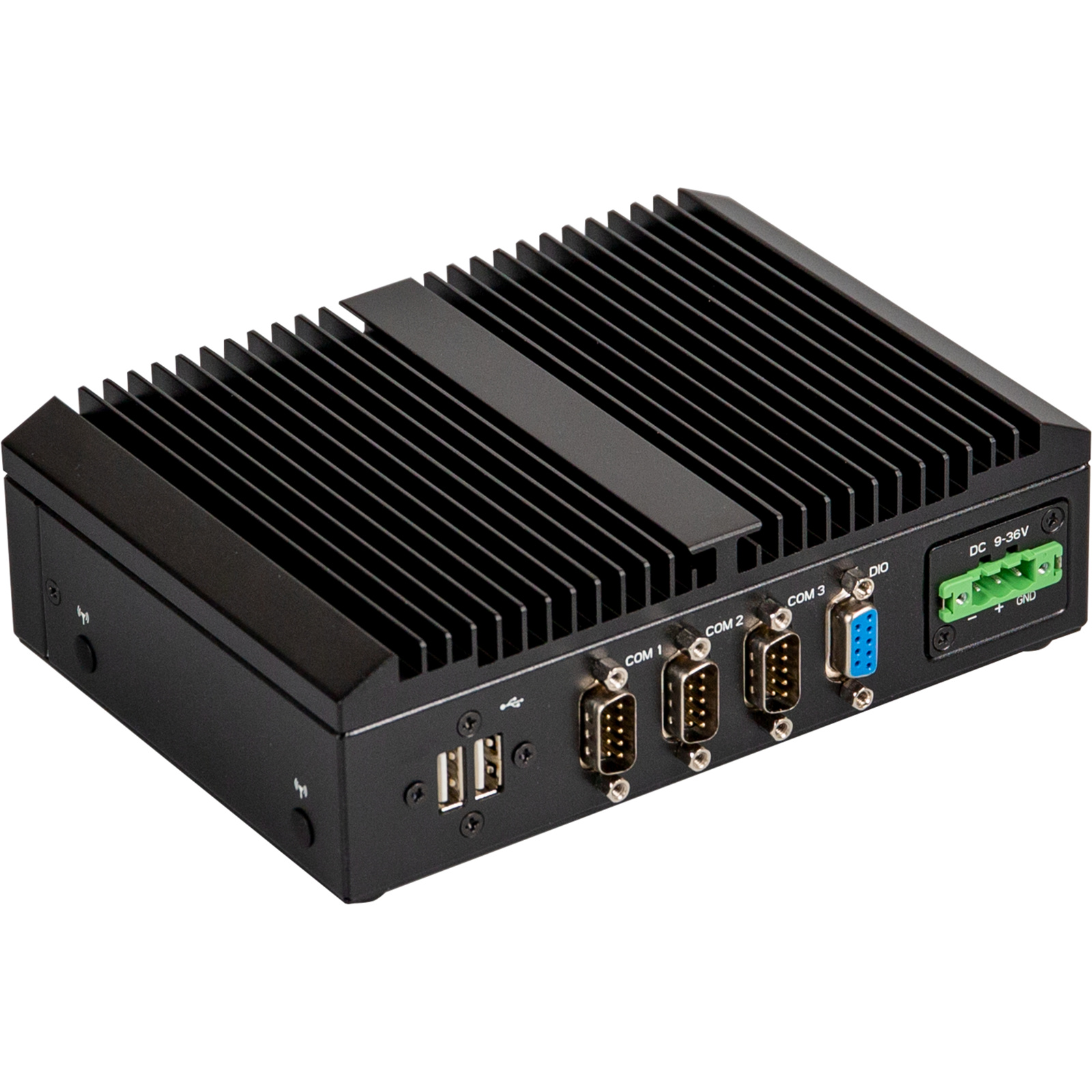

Rear l/O
2 x USB 2.0
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
1 x GPIO (8 bits)
1 x 3-pin Terminal Block
Side I/O
2 x External Antenna Holes (Optional)
Power
+9V~36VDC (Full Range)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Packing Content
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 1.5kg
Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
SATA Cable x 1 (P/N: 25CF4-170020-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
Mounting
Wall mount (Optional)
Order Information
6BQP4200BMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
