GigaIPC Industrial system QBiX-Plus-EHLA6412-A1 Intel Celeron J6412 Processor
GigaIPC Industrial system QBiX-Plus-EHLA6412-A1 Intel Celeron J6412 Processor
- Brand: GigaIPC
- MPN: QBiX-Plus-EHLA6412-A1
- Part #: WKSGICQBIX12001
- UPC:
View all shipping info
- Brand: GigaIPC
- MPN: QBiX-Plus-EHLA6412-A1
- Part #: WKSGICQBIX12001
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Computers





GigaIPC Industrial system QBiX-Plus-EHLA6412-A1 Intel Celeron J6412 Processor
- Brand: GigaIPC
- MPN: QBiX-Plus-EHLA6412-A1
- Part #: WKSGICQBIX12001

Product URL: https://www.pbtech.com/au/product/WKSGICQBIX12001/GigaIPC-Industrial-system-QBiX-Plus-EHLA6412-A1-In
Features
Key Features
- System Size : 165W x 105D x 27H (mm)
- Intel® Celeron® J6412 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 3 x HDMI for Multiple display
- 2 x GbE LAN Ports
- Support Micro SD Card
- Support COM (RS-232 mode, pass through RJ45 Port)
Application
- Healthcare
- KIOSK
- Menu Board
- Digital Signage
- IoT System
Specifications
Dimension
165W x 105D x 27H (mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports
Graphic
Support Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
3 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz(3 independent display outputs)
Audio
Realtek® audio codec
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3042 M.2 B-key with SIM Slot (USB 3.2 Gen 1)

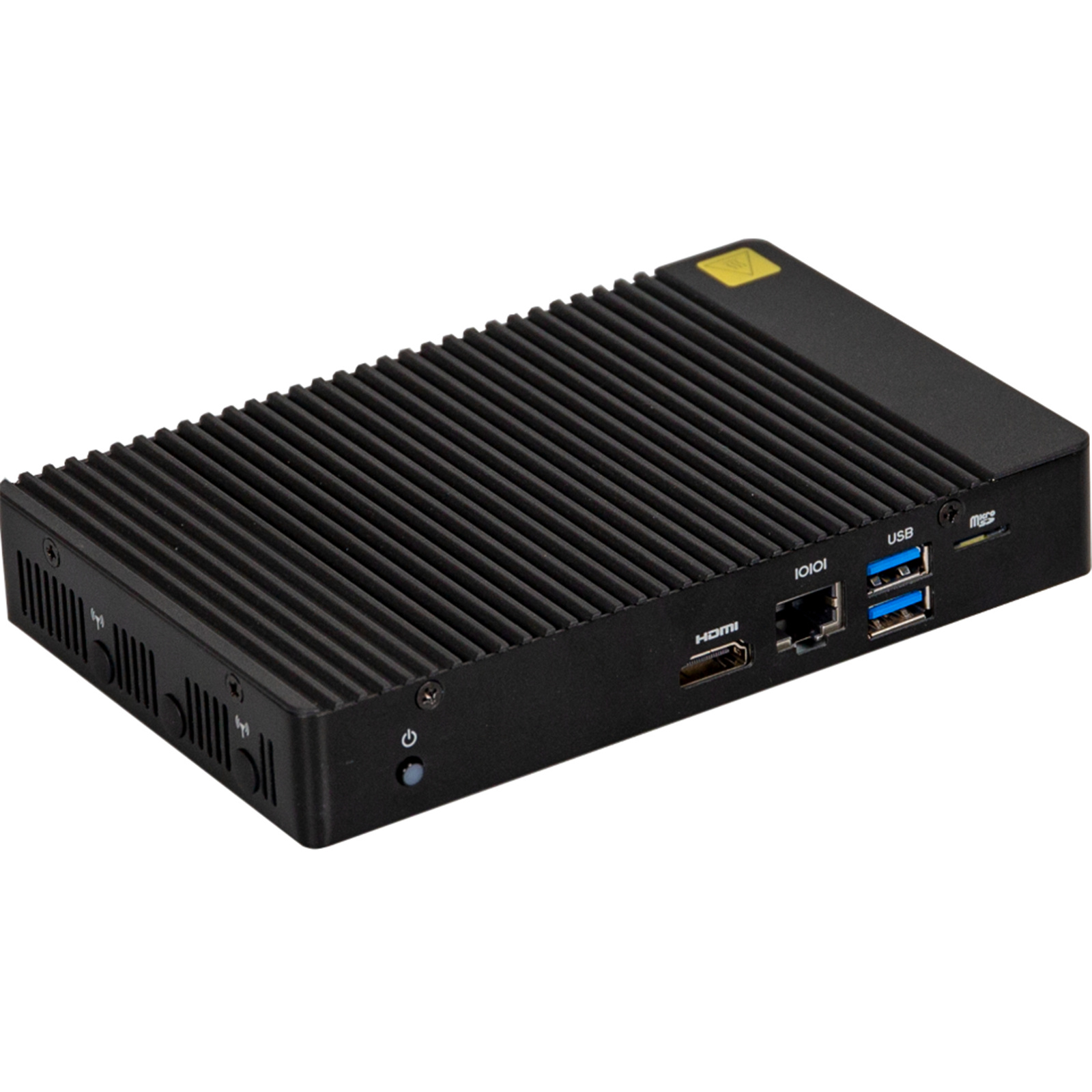

Front I/O
2 x USB 3.2 Gen 1
1 x COM Port (RS-232)(RJ45 Type)
1 x Micro SD card slot
1 x Power button
1 x HDMI

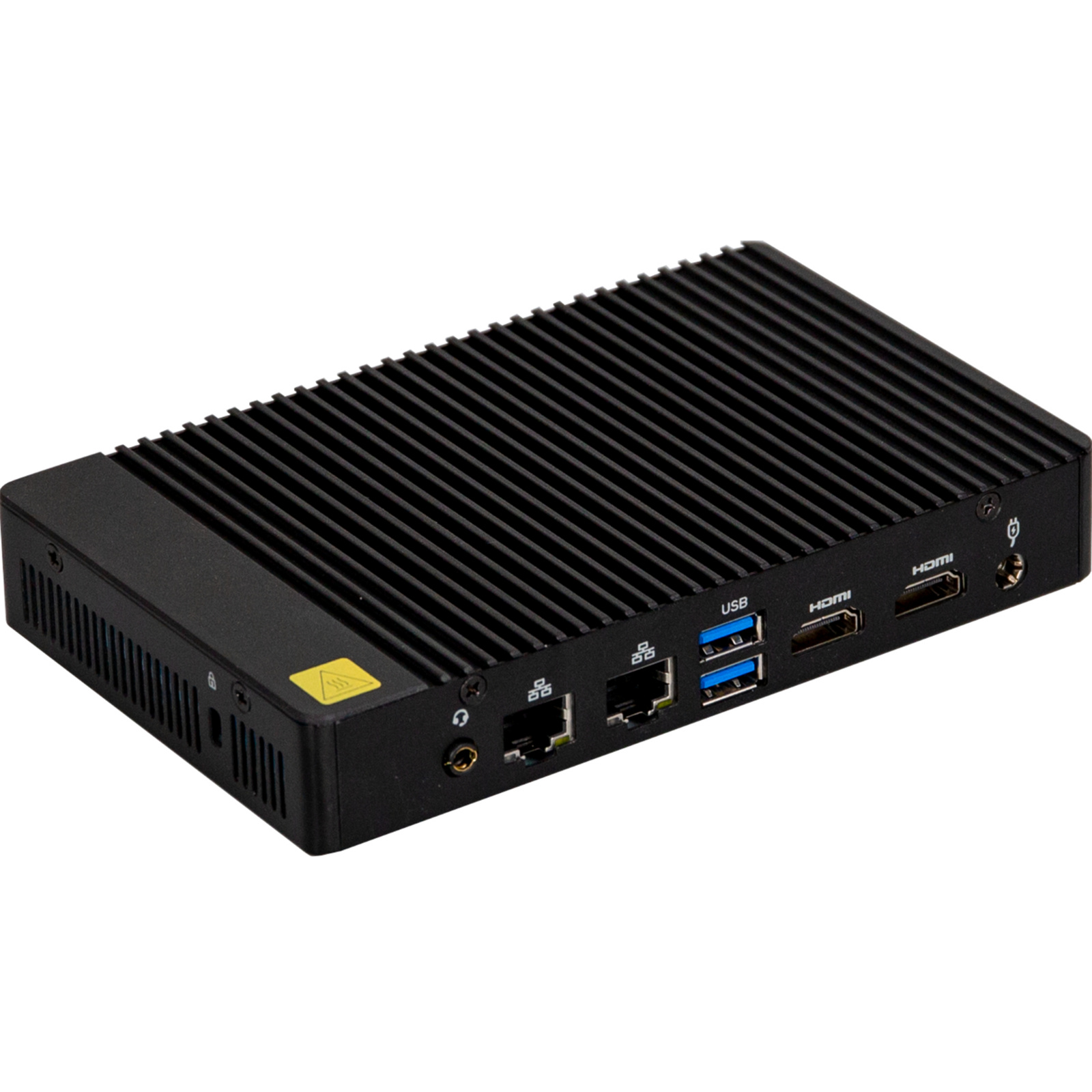

Rear I/O
1 x Headphone Jack
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x HDMI
1 x DC Jack
Side I/O
3 x External Antenna Holes (Optional)
Power
+12~19VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Vibration
During Operation Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Packaging Content
Carton size: 416 x 359 x 257 (mm)
Packing Capacity: 10pcs
Single Box size: 209 x 169 x 75 (mm)
Single Box weight: Approx. 1.5kg
Including:
Power Cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065U-A3S)
RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150400-S9R)
VESA Mount Bracket x 1 (P/N: 25HB1-TPL021-S8R)
VESA Mount screws x 1 (P/N: 25KSD-000002-C0R)
