iBASE Fanless wide temp solution AMS300M i7-7700T, 16G/512GB X2, with WIFI, DVI x1, DP x1, USB x6, RJ45 x3. 180W/24V Power adaptor

PB Tech price
PB Tech price
$ 2,062 .52
 +GST
$ 2,268 .77
 inc GST
$2,062.52  +GST
$2,268.77

iBASE Fanless wide temp solution AMS300M i7-7700T, 16G/512GB X2, with WIFI, DVI x1, DP x1, USB x6, RJ45 x3. 180W/24V Power adaptor

Industrial grade
  • Brand: iBASE
  • MPN: ams300mplus
  • Part #: WKSIBA300B
  • UPC:
PB Tech price
$ 2,062 .52 $ 2,268 .77
 +GST  inc GST
Hurry, only 5 units left!


Delivery: Order now and it ships tomorrow
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$2,062.52  +GST
$2,268.77

Features

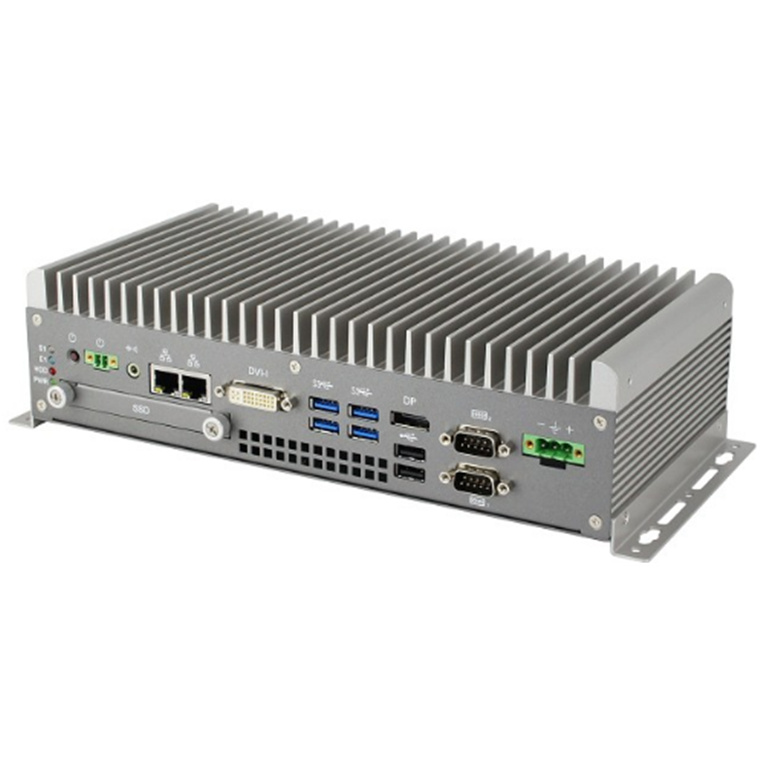

The AMS300 is a compact, yet expandable fanless system designed for industrial control and measurement processes in smart factory automation applications. It is powered by 7th/6th Gen Intel® Core™ i7/i5/i3 processors and comes integrated with 8GB memory as well as 64GB of industrial-grade SSD storage. An optional 2MB MRAM expansion module is available to store data even without power. The AMS300 is built with two module compartments for PCI-E/PCI cards and Fieldbus modules, giving flexibility to customers to configure the various I/O required. The unit also features high vibration and shock resistance crucial for deployment in harsh conditions and all interfaces situated on one side for easy assembly and expansion.

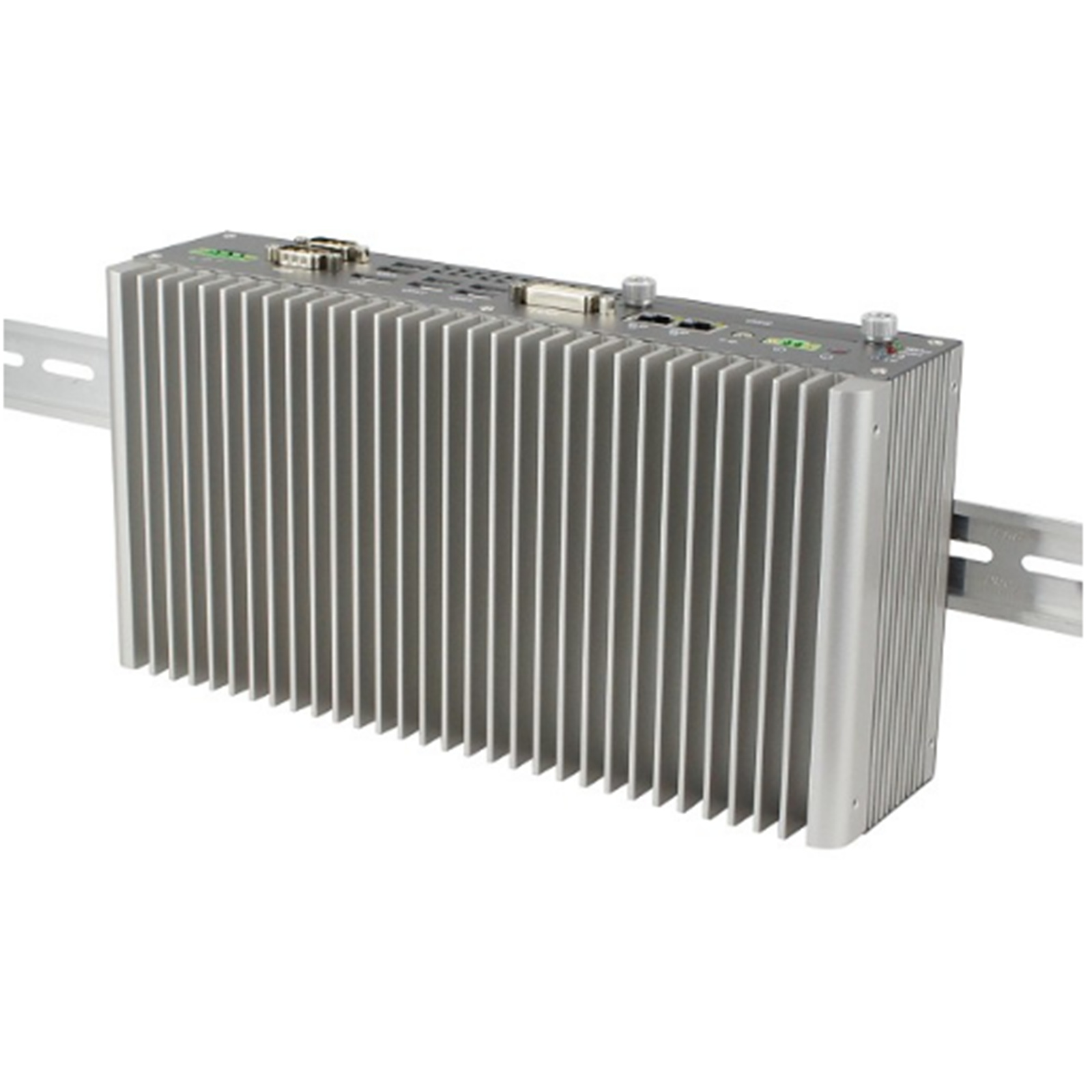

Built with a passive finned heat sink, the rugged AMS300 boasts of superb thermal performance while reliably operating at a temperature range of -10°C to 60°C. It adopts wall, side and DIN-rail mounting to securely fit in space-constrained and industrial environments. Advanced features include iAMT (11.6) for remote management and repair of systems and IBASE's owned iSMART technology that enables energy-efficient systems with various power-saving functions. AMS300 offers extensive I/O connectivity including a drive bay with RAID 0/1 support, a 24V DC terminal block, 4x USB 3.0 which can be used as machine vision camera interface, 2x USB 2.0, 2x COM, 2x Gigabit Ethernet and video outputs for DVI-I and DisplayPort interface.

Specifications

System Mainboard

MB300 with Intel® Q170 PCH

CPU Type

7th/6th Generation Intel® Core™ i7/i5/i3 Desktop processors (35W TDP)

System Speed

Up to 3.4GHz

Memory

2x DDR4-2133 SO-DIMM, Max. 32GB

Construction

Aluminum & steel

Chassis Color

Sliver

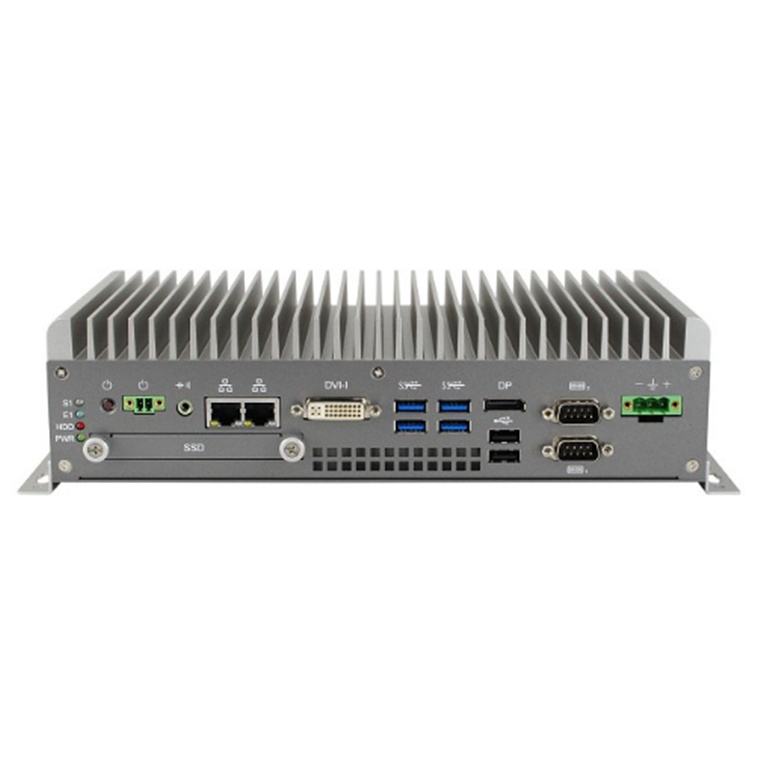

Front Panel External I/O

2x Antenna hole for WLAN module

Rear Panel External I/O

1x DVI-I + 1x DisplayPort connector
1x Audio jack for Line-out
4x USB 3.0 ports, 2x USB 2.0 ports
1x Red HDD LED, 1x Green PWR LED, 2x error LED by programming
1x power button
1x 2-pin terminal block for external power button
1x RS232/422/485 port for COM#1
1x RS232 port for COM#2
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block type for 24V

Expansion Slots

1x Mini PCI-E socket (full-sized)

Storage/ M.2

2x 2.5'' SSD (1x internal & 1x external-accessible) +
1x mSATA socket

Mounting

Desktop or wall mounting (wall mount kit included)
Side mounting
DIN rail mounting (optional)

Weight

2.7kg

Dimensions

275mm (W) x 140mm (D) x 70mm (H)
10.83" (W) x 5.51" (D) x 2.76" (H)

Operating Temperature

-10°C to 60°C (14°F~140°F) *with air flow
-10°C to 50°C (14°F to 122°F) without air flow

Storage Temperature

-20°C to 80°C (-4°F to 176°F)

Relative Humidity

5~90% @ 45°C, (non-condensing)

Vibration

Operating: 3 grms / 5~500Hz / random operation (storage is mSATA)

Certification

CE / LVD / FCC Class B

Manufacturer Part No:
ams300mplus
Brand:
Product Type:
i7-7700T, 16G/512GB X2,
UPC
-
Product Family:
Fanless wide temp solution
Shipping Weight:
5.527 kg
PB Part No:
WKSIBA300B
Product Model:
AMS300M
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
