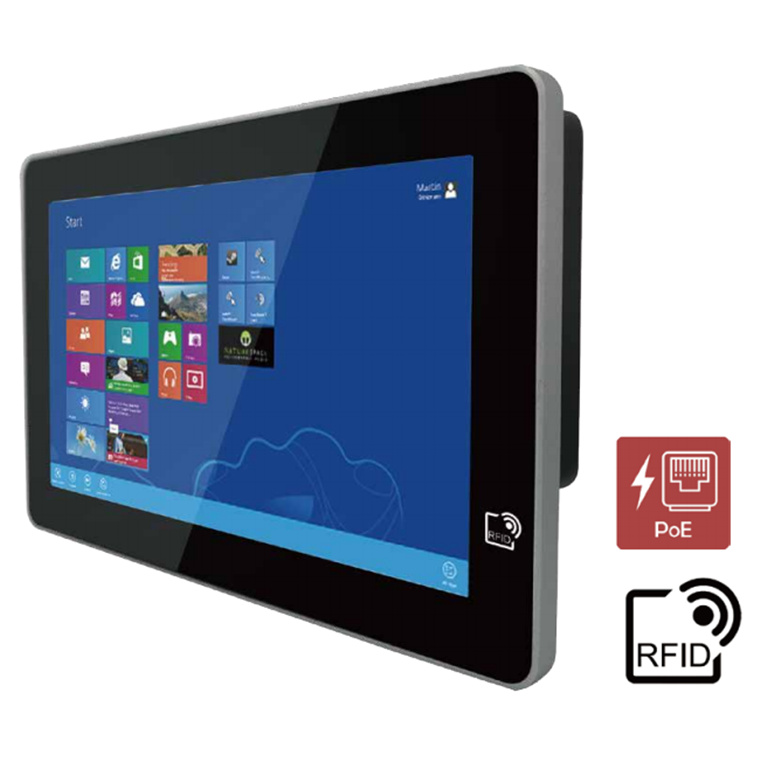

Winmate W10IB3S-PCH2-POE Panel PC with Win10 IoT 10.1" 1280x800 Resolution Screen , with Intel Celeron N2930 1.83GHz CPU, 2GB DDR3 64GB Storage, With POE Function
Out of stock
Winmate W10IB3S-PCH2-POE Panel PC with Win10 IoT 10.1" 1280x800 Resolution Screen , with Intel Celeron N2930 1.83GHz CPU, 2GB DDR3 64GB Storage, With POE Function
- Brand: Winmate
- MPN: W10IB3S-PCH2-POE
- Part #: WKSWMA101B
- UPC:
View all shipping info
- Brand: Winmate
- MPN: W10IB3S-PCH2-POE
- Part #: WKSWMA101B
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Computers





Winmate W10IB3S-PCH2-POE Panel PC with Win10 IoT 10.1" 1280x800 Resolution Screen , with Intel Celeron N2930 1.83GHz CPU, 2GB DDR3 64GB Storage, With POE Function
- Brand: Winmate
- MPN: W10IB3S-PCH2-POE
- Part #: WKSWMA101B

Product URL: https://www.pbtech.com/au/product/WKSWMA101B/Winmate-W10IB3S-PCH2-POE-Panel-PC-with-Win10-IoT-1
Features
- 10.1" 1280x 800 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- Low-power system with Intel® Celeron® N2930 processor
- PoE standard IEEE 802.3at (25W)
- Fanless cooling system and ultra-low power consumption
- Dual Gigabit Ethernet
- Front IP65 water and dust proof
- Optional HF RFID Reader
- Support PoE Function
- Room booking schedule, access control, room information display
Specifications
LCD Panel Specification
Size
10.1" (Widescreen)
Active Display Area
216.96(H) x 135.6(V)
Pixel Pitch
0.1695(H) x 0.1695(V)
Resolution
1280 x 800
Contrast Ratio
800:1(typ.)
Display Color
16.7M
Brightness
350(typ.)
Viewing Angle
-85~85(H) ; -85~85(V)
Touch Screen
Projected Capacitive Multi-Touch (P-CAP)
Optional anti-glare coating
System Specification
Processor
Intel® Celeron® Bay Trail-M N2930 1.83GHz
Chipset
Intel® ATOM SoC Integrated
Memory
2 GB, 1 x SODIMM DDR3L 1600 MHz ( Max 8GB)
Storage
1 x M.2 SSD (Default 64GB)
LAN
Intel® I210-AT GbE
I/O Connectors
Digital IO
1 x DIDO (Optional)
USB Port
1 x USB 3.0, 1 x USB 2.0
Ethernet
1 x RJ 45-10/100/1000 Mbps (LAN)
1 x RJ 45-10/100/1000 Mbps (LAN/ PoE)
COM Port
1 x RS232/422/485
Speaker
1 x 1 Watt Speaker
Mechanical and Environment
Operating Temperature
0°C to +50°C
Operating Humidity
30% to 90% (non-condensing)
Cooling System
Fanless design
Dimension (W x H x D)
263.28 x 172 x 35.7 (mm)
Mouting
VESA Mount(75x75mm), Panel Mount, Front Side Wall Mount
Product Spec
OS
Windows 10 IoT Enterprise
Peripheral
RFID(HF, 13.56MHz)
HF RFID reader 13.36 MHz (Optional)
Camera
2MP Front Camera (Optional)
Power
Power Input
12V DC Terminal Block (Phoenix Type)
Support PoE standards IEEE 802.3at for up to 25 Watt
Power Consumption
19W
Power over Ethernet
Power Device (PD): follows IEEE 802.3at (25 W)
Software
Utility
"HotTab"
