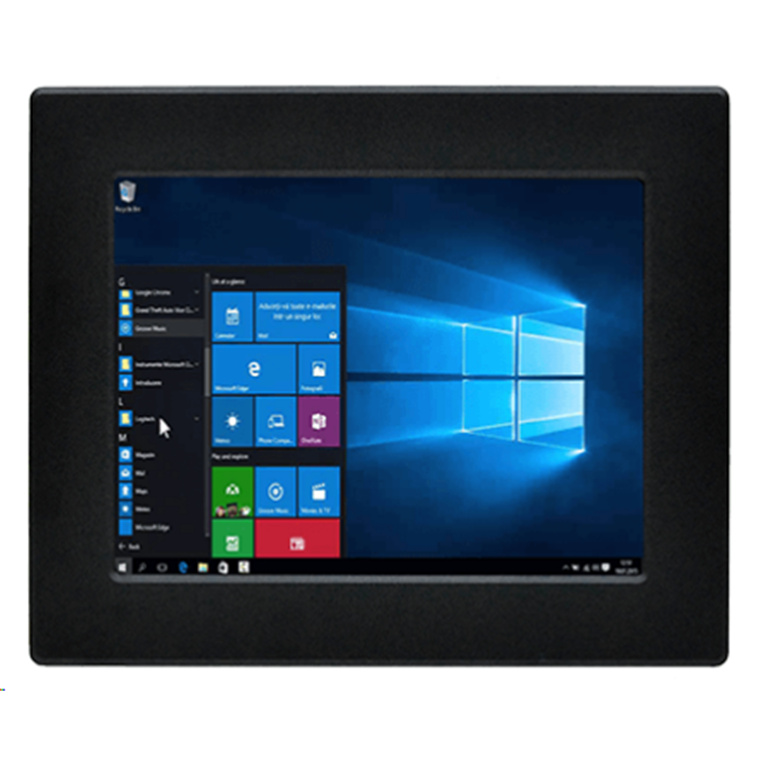

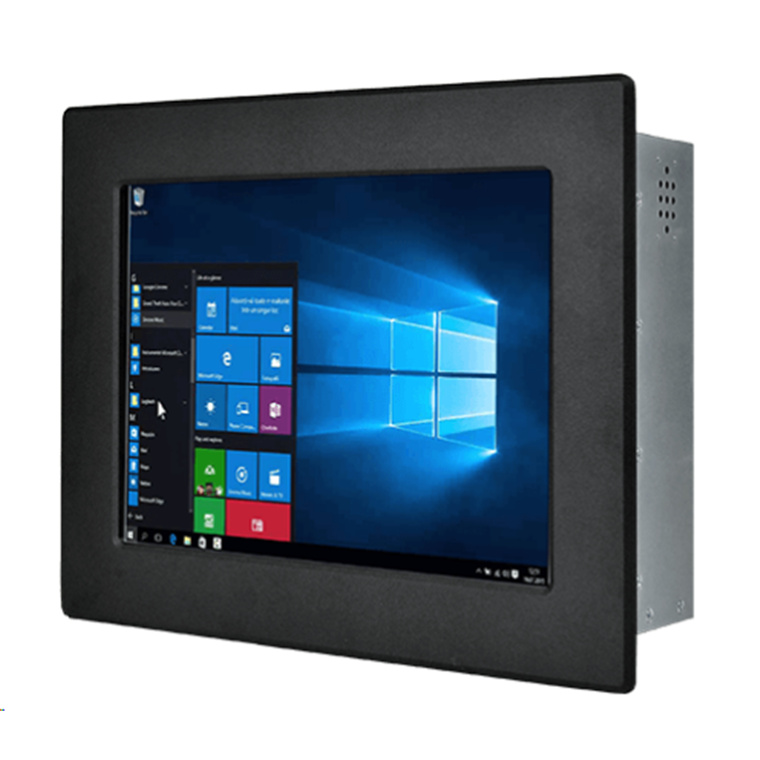

Winmate R10IB3S-IPT2 4GB, 128GB, Win IOT 10.4" Panel PC 1024 x768, P-CAP, Intel Celeron N2930, 2 x USB, 2 x RJ45, 1 x RS232, 1 x RS232/422/485, Front IP65, -40-85°C wide Temp, 1 x DC-in Power Jack(+12V), Fanless cooling system and ultra-lo
Out of stock
Winmate R10IB3S-IPT2 4GB, 128GB, Win IOT 10.4" Panel PC 1024 x768, P-CAP, Intel Celeron N2930, 2 x USB, 2 x RJ45, 1 x RS232, 1 x RS232/422/485, Front IP65, -40-85°C wide Temp, 1 x DC-in Power Jack(+12V), Fanless cooling system and ultra-lo
- Brand: Winmate
- MPN: R10IB3S-IPT2
- Part #: WKSWMA10204
- UPC:
View all shipping info
- Brand: Winmate
- MPN: R10IB3S-IPT2
- Part #: WKSWMA10204
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Winmate R10IB3S-IPT2 4GB, 128GB, Win IOT 10.4" Panel PC 1024 x768, P-CAP, Intel Celeron N2930, 2 x USB, 2 x RJ45, 1 x RS232, 1 x RS232/422/485, Front IP65, -40-85°C wide Temp, 1 x DC-in Power Jack(+12V), Fanless cooling system and ultra-lo
- Brand: Winmate
- MPN: R10IB3S-IPT2
- Part #: WKSWMA10204

Product URL: https://www.pbtech.com/au/product/WKSWMA10204/Winmate-R10IB3S-IPT2-4GB-128GB-Win-IOT-104-Panel-P
Features
R10IB3S-IPT2
10.4" Intel® Celeron® N2930 Front IP65 Panel PC
- 10.4" TFT XGA LCD
- Intel® Celeron® N2930 Quad Core 1.83 GHz Processor
- SO-DIMM DDR3L 1600, max. 8GB
- Integrated VGA, Dual-channel 24-bit LVDS, HDMI (Optional)
- Intel® I210-AT GbE
Waterproof Front IP65 Design
Winmate's Front IP65 Series Panel PC built for wet and dusty applications; it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosk, and others.
Intuitive Operations with the Touchscreen
For the convenience of the operators working in the industrial environment, the Front IP65 Panel PC Series offers flexible surface options such as cover glass (when touch is not required) and a resistive touch screen to meet different specifications.
HDMI, VGA Signal Interfaces
For easy integration to all embedded boards and systems, the Front IP65 Series Panel PC comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most of the industrial and commercial applications.
Easy Installation
The Front IP65 Series Panel PC has a unique rubber (O-ring) on the rear of the front bezel. This design allows sealing the front bezel and the customer's fixture to prevent water and dust from entering the enclosure. Moreover, the panel pc is easy to install inside a cabinet or a rack for various applications.
Suitable for Outdoor Kiosk Applications
When embedded in an enclosure, the Front IP65 Series Panel PC is suitable for use in wet and dusty industrial environments. When installed correctly, the panel pc rated IP65 from the front side withstands rigors of outdoors - water, humidity, cold, heat, sunlight, airborne particles - making it suitable for outdoor kiosks in parking, gas stations, swimming pools, and other locations.
Specifications
Display
Size
10.4 inches
Touch / Glass
Resistive Touch Screen
Protection Glass Without Touch Function (Optional)
Resolution
1024x768
Panel Brightness
350 nits
Contrast Ratio
1000:1
View Angles
88,88,88,88
Active Area
210.4x157.8 mm
System Specification
Processor
Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)
Memory
1 x SO-DIMM, DDR3L 1600 MHz, 4GB
Storage
1 x mSATA SSD 128GB.
Ethernet controller
2 x Intel® Ethernet Controller I210-AT
Security
TPM 2.0
Operating System
Windows 10 IoT Enterprise
WLAN
802.11 a/b/g/n/ac (Optional)
BT
BT Support (Optional)
Mechanical
Dimension
284 x 234 x 55 mm
Cut out
262x200mm
Mounting
Panel mount
VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Environment
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0~50°C
Storage Temperature
-20~60°C
IP rating
Front IP65
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB3.0 (Type-A)
1 x USB2.0 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232)
1 x RS232
LAN
2 x Giga LAN RJ45 Connector
Video
1 x HDMI 1.4 (Optional)
Audio
2 x Speaker
Expansion Port
1 x mPCIe slot(for half size Wifi module)
Indicator
1 x LED Indicator for power
1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
mini PCIe
1 x Mini PCIE(For WLAN)
Control
Button
1 x Power Button
1 x Reset Button
Accessory
Accessory
100~240V AC to DC Adapter
Power Cord
Driver CD & Manual
VESA screws
Mounting clips
Power
Power Rating
12V DC
Adapter
12V 50W
