Winmate Panel PC W10IE3S-SPH2-B 10.1" 1280x800, PCAP Intel N6211, 8G, 128GB IP65 Stainless
Out of stock
Winmate Panel PC W10IE3S-SPH2-B 10.1" 1280x800, PCAP Intel N6211, 8G, 128GB IP65 Stainless
- Brand: Winmate
- MPN: W10IE3S-SPH2-B
- Part #: WKSWMA10IE3S
- UPC:
View all shipping info
- Brand: Winmate
- MPN: W10IE3S-SPH2-B
- Part #: WKSWMA10IE3S
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Computers





Winmate Panel PC W10IE3S-SPH2-B 10.1" 1280x800, PCAP Intel N6211, 8G, 128GB IP65 Stainless
- Brand: Winmate
- MPN: W10IE3S-SPH2-B
- Part #: WKSWMA10IE3S

Product URL: https://www.pbtech.com/au/product/WKSWMA10IE3S/Winmate-Panel-PC-W10IE3S-SPH2-B-101-1280x800-PCAP
Features
W10IE3S-SPH2-B
- Intel® Celeron® Elkhart Lake N6211 processor
- Fanless cooling system
- SUS 316 / AISI 316 stainless steel for food and chemical industries
- A true flat, easy-to-clean front surface with edge-to-edge design
- Supports VESA mount
- Rotary switch adjust different touch mode for Hand / Rain / Glove application
- Emergency and Flat buttons for automation device control
- Optical bonding (optional)
Waterproof All-Around
The Panel PC complies with IP65 water and dust resistance for regular cleanup processes and strict hygiene standards in the Food, Beverage, and Pharmaceutical industries.

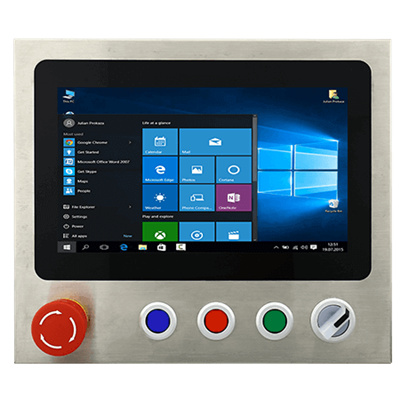

Stainless B Series with Push Buttons
Push-buttons bring precise control directly to the work area, eliminating wasted movement and increasing productivity. Also, the physical buttons are especially useful for critical situations like emergency shutdowns.
Emergency Stop
When an emergency occurs, we don't want to waste time navigating through HMI screens; hence a button offers a quick and simple way to shut down the process.
Ultimate Touch Experience
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers. The rotary switch gives a simple, intuitive way to switch hand, rain, and glove modes.
Specifications
Display
Size
10.1 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x800
Panel Brightness
350.0 nits
Contrast Ratio
800:1
View Angles
85,85,85,85
Active Area
216.96x135.6 mm
System Specification
Processor
Intel® Celeron® N6211 (up to 2.6GHz)
Intel® Celeron® N6210 ( up to 3.0GHz)(Optional)
Memory
1 x SO-DIMM, DDR4 3200 MHz, 4GB
8GB (Optional)
16GB (Optional)
Storage
1 x M.2 2242 B-key SSD 128GB
M.2 2242 B-key SSD up to 512GB (Optional)
1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise SAC (64 bit) (Optional)
Windows 11 Pro 64 bit (Optional)
Windows 10 IoT Enterprise (64 bit) (Optional)
Linux Ubuntu 22.04 (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Mechanical
Dimension
293 x 250 x 69 mm
Mounting
VESA Mount
Enclosure
Stainless Housing
Cooling System
Fanless design
Environment
Operating Humidity
10% to 90% RH, Non-Condensing
Operating Temperature
0°C to 45°C
Storage Temperature
-20°C to 60°C
IP rating
IP65
Certification
Certification
CE, FCC

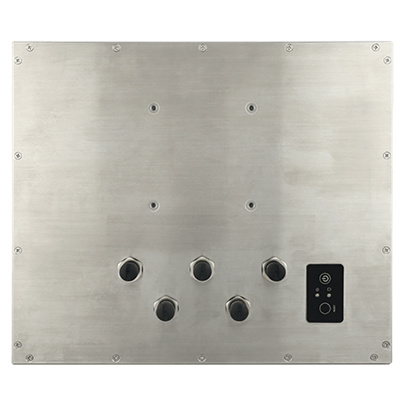

IO Ports
USB Port
1 x M12 waterproof connector for 1 x USB2.0 & Giga LAN
Serial Port
1 x M12 waterproof connector for RS232
Expansion Port
CN1 and CN2 for front button control
Indicator
1 x LED Indicator for power
1 x LED Indicator for storage
Power Input
1 x M12 waterproof connector for 12V DC
Control
Button
Rear side:
1 x Power Button
1 x Reset Button
Front side:
1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector
1 x Rotary Switch for touch mode
Accessory
Accessory
100~240V AC to DC Adapter with waterproof connector
Power Cord
External USB & LAN cable with waterproof connector
External COM cable with waterproof connector
External cables for CN1 & CN2 with waterproof connector
Waterproof caps
RJ45 female-female converter
VESA screws
Optional Accessory
1 x Open wire cable for M12 connector
Power
Power Rating
M12 Type: 12V DC
9~36V DC (Optional)
