Zalman I4 ATX Mid Tower Case - Black - Supports Graphics Cards up to 320mm, CPU Cooler up to 170mm
Out of stock
Zalman I4 ATX Mid Tower Case - Black - Supports Graphics Cards up to 320mm, CPU Cooler up to 170mm
- Brand: Zalman
- MPN: I4 BLACK
- Part #: ZAL7022
- UPC: 823884204438
View all shipping info
- Brand: Zalman
- MPN: I4 BLACK
- Part #: ZAL7022
- UPC: 823884204438
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Cases / Chassis





Zalman I4 ATX Mid Tower Case - Black - Supports Graphics Cards up to 320mm, CPU Cooler up to 170mm
- Brand: Zalman
- MPN: I4 BLACK
- Part #: ZAL7022
- UPC:823884204438

Product URL: https://www.pbtech.com/au/product/ZAL7022/Zalman-I4-ATX-Mid-Tower-Case---Black---Supports-Gr
Features
Zalman I4 ATX Mid Tower Case BLACK
Full Mesh Side panel Design for Optimized Ventilation
Full Mesh Design for Optimized Ventilation (Front / Top / Side)
optimal airflow with Clean, Simple and modern Full Mesh Design
Full-Size Magnetic Dust Filter to Protect PC Components
Protect your components and provides unobstructed airflow through Front/Top/Side Full-size Dust Filter
Magnetic Dust Filter (Top)
Protects your components and provides unobstructed airflow
Magnetic Dust Filter (Bottom)
Protects your power supply from piling up dust through dust filteration
Easy accessible design on top I/O ports
- Power
- HDD / Power LED
- Reset Button
- USB 2.0
- Microphone Jack
- Headphone Jack
- USB 3.0
- LED Button
*LED button can be used by connecting LED fan and hub

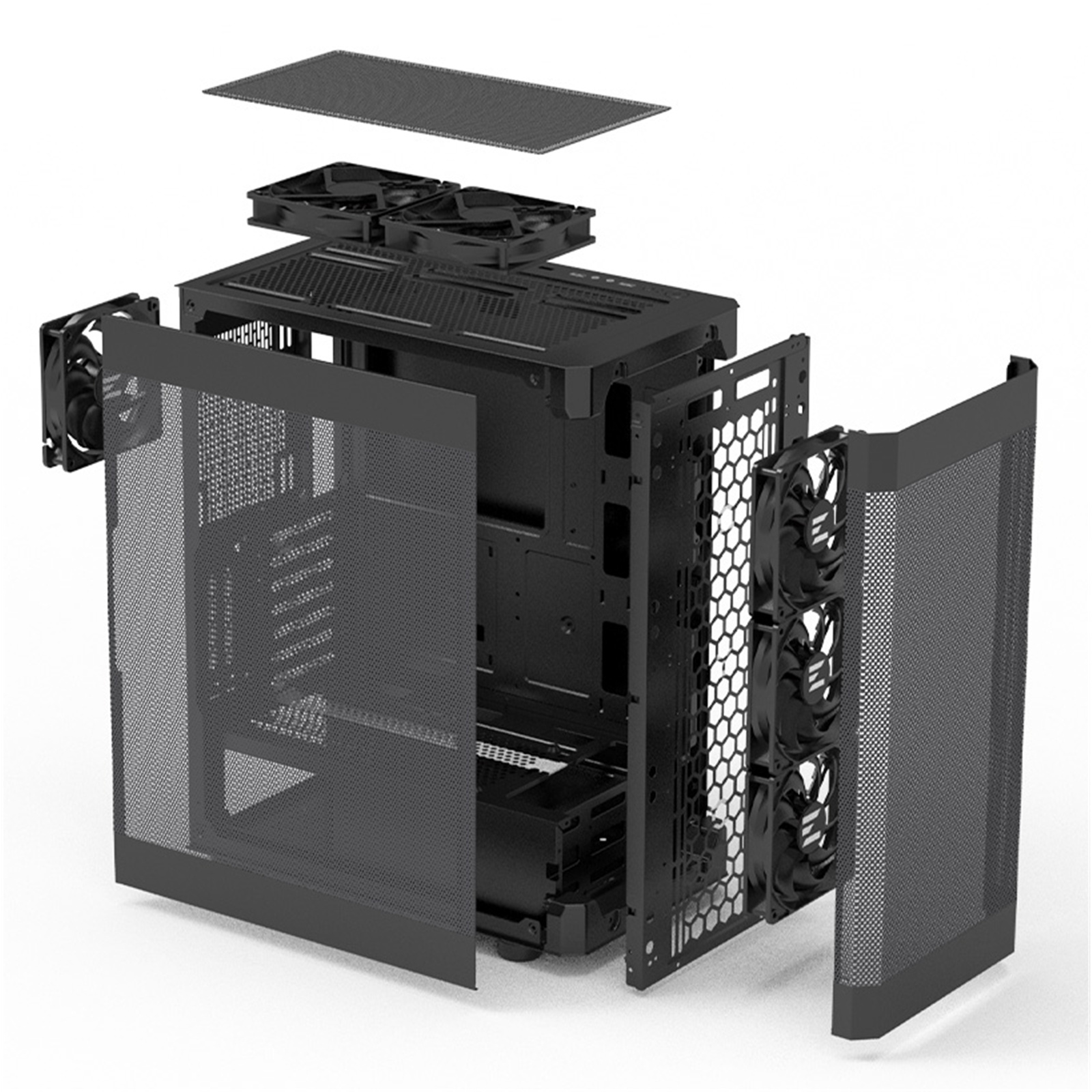

Full Mesh Sliding Type SIde Panel
The modern and clean full mesh side panel design provides excellent cooling efficiency with optimal air intake
GPU Support Bracket Included with Height Adjustment
Slides Up and Down to position GPU Precisely
Vertical Graphics Card Holder (*Riser cable not included)
*Note: Riser cables with 90° connectors are not compatible
* For riser cables with 90° connectors, remove the vertical graphic card holder and use standoffs included in accessories kit

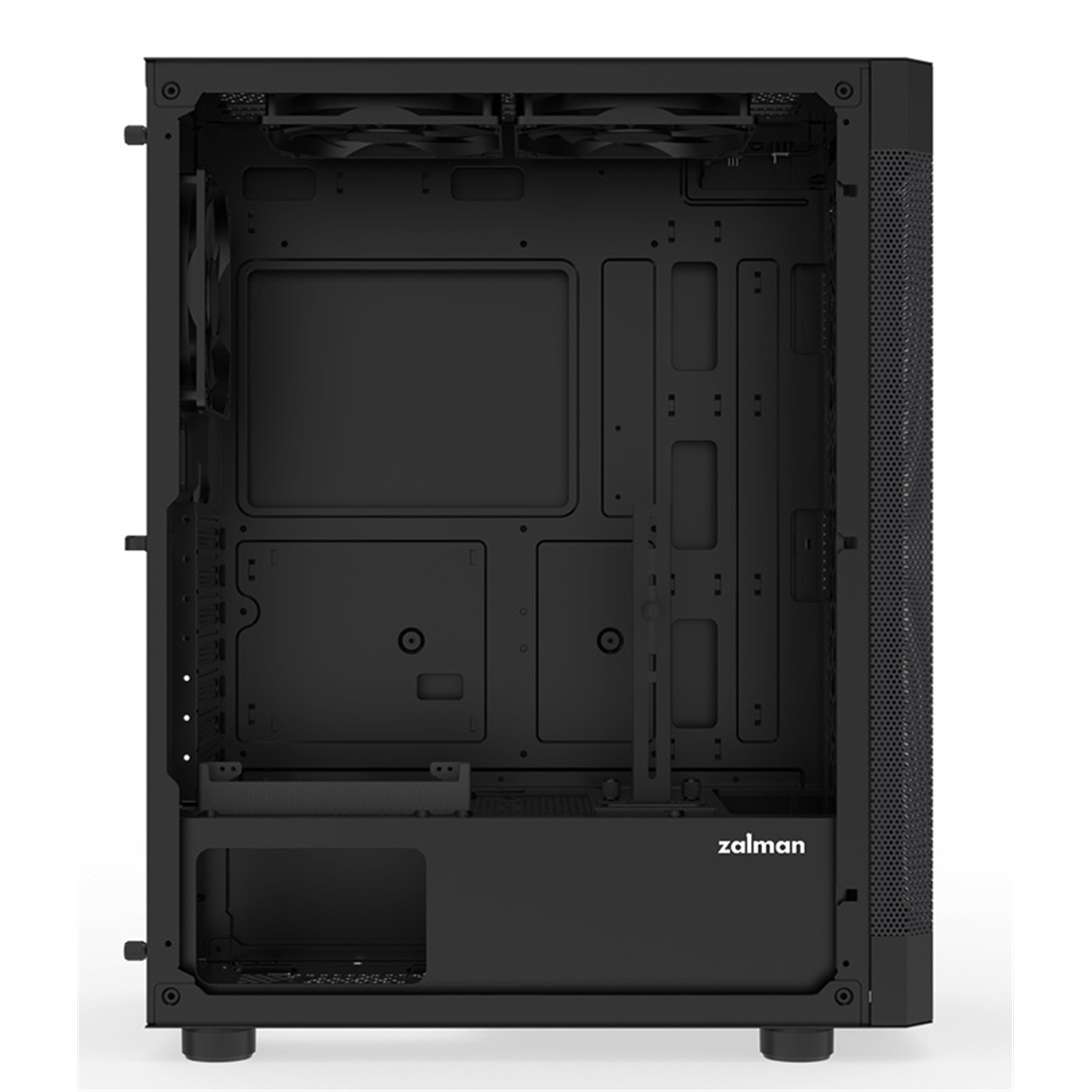

Excellent Expandability and Convenience
Max CPU Cooler Height : 170mm
Max VGA Card Length : 320mm
Max PSU Length : 140mm
Drive Memory Support : Supports up to 2 x 3.5" HDD / 2 x 2.5" SSD
Motherboard Support
ATX / mATX / Mini-ITX
Maximum Airflow and Ventilation
Pre-installed 120mm x 6 fans (Front x 3 , Top x 2 , Rear x 1) and optimized ventilation provide quick heat dissipation from the case
FRONT / TOP / REAR (120mm Black Fan)
Rated Voltage : DC 12VRated Current : 0.17A
Max. Fan Speed : 1,100 RPM ± 10%
Max. Fan Air Flow : 39 CFM
Max. Fan Noise Level : 19dB(A)
Fan Life Span : 25,000 hours
Fan Bearing Type : Hydraulic Bearing
Radiator Configuration
Front : 120mm / 140mm / 240mm / 280mm / 360mm
Top : 120mm / 140mm / 240mm / 280mm
Rear : 120mm / 140mm
Fan Support
Front : 3 x 120mm / 3 x 140mm
Top : 2 x 120mm / 2 x 140mm
Rear : 1 x 120mm / 1 x 140mm
Bottom : 2 x 120mm
Rear Layout
- Rear Hand Screw
- Rear 120mm Fan (Pre- installed)
- Rear Panel Handle
- PCI Slots x 7
- PCI Slots x 2 (Vertical Type)
- PSU Slot
Specifications
Model
i4
Case Form Factor
ATX Mid-Tower
Materials
Steel, Plastic
Weight
5.8kg
Dimensions
396(D) x 225(W) x 484(H)mm
Motherboard Support
ATX / mATX / Mini-ITX
Fan Support
Front : 3 x 120mm / 3 x 140mm
Top : 2 x 120mm / 2 x 140mm
Rear : 1 x 120mm / 1 x 140mm
Bottom : 2 x 120mm
Fan(s) Included
Front : 3 x 120mm (Black Fan)
Top : 2 x 120mm (Black Fan)
Rear : 1 x 120mm (Black Fan)
Radiator Support
Front : 120mm / 140mm / 240mm / 280mm / 360mm
Top : 120mm / 140mm / 240mm / 280mm
Rear : 120mm / 140mm
Max. PSU Length
140mm
Max. VGA Length
320mm
Max. CPU Cooler Height
170mm
Drive Bays
2 x 3.5"(Combo), 2 x 2.5"
PCI Expansion Slots
7+ 2 pcs
I/O Ports
Power, Power/HDD LED, Reset,
1 x USB 2.0, 2 x USB 3.0, MIC, Audio, LED Button
