Cambium Networks TX2012R-P Cambium cnMatrix TX 2012R-P, Intelligent Ethernet PoE Switch,CambiumSync,8 x 1gbps, and 4 SFP+, Removeable Power Supply (not included)
Cambium Networks TX2012R-P Cambium cnMatrix TX 2012R-P, Intelligent Ethernet PoE Switch,CambiumSync,8 x 1gbps, and 4 SFP+, Removeable Power Supply (not included)
- Brand: Cambium Networks
- MPN: TX2012R-P
- Part #: NETCBN010177
- UPC:
View all shipping info
- Brand: Cambium Networks
- MPN: TX2012R-P
- Part #: NETCBN010177
- UPC:
Features

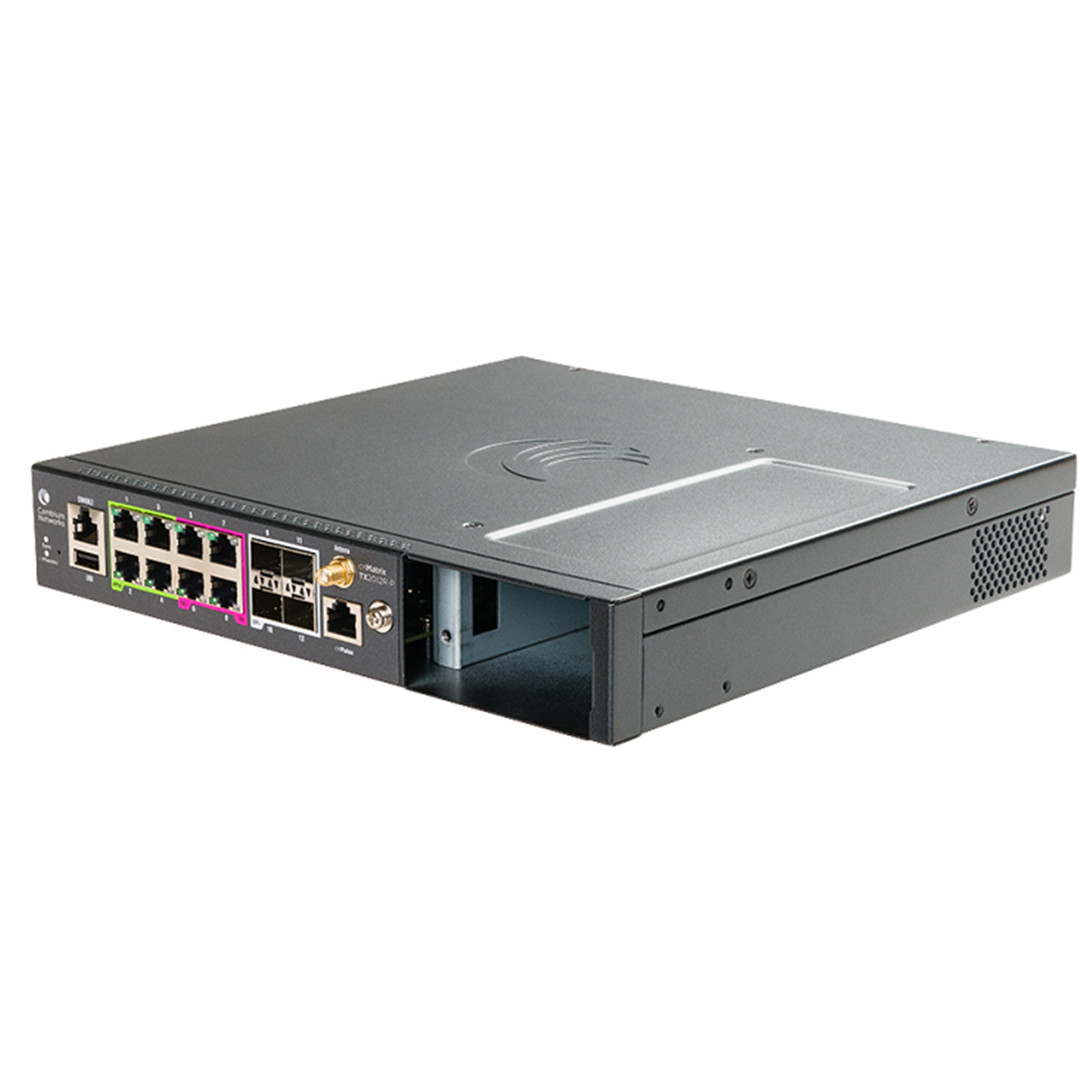

Cambium cnMatrix TX2012R-P 12-Port Gigabit PoE WISP Tower Switch
Cambium cnMatrix TX2012R-P is an Intelligent Ethernet PoE Switch with Cambium Sync, 8x 1gbps Ethernet Ports which support multiple PoE modes, and 4x SFP+ Ports. Power supply sold separately, supports Common Removeable Power Supplies (CRPS).
Cambium cnMatrix Tower Switches provide Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
Cambium Sync
- Redundant Input Sync sources
- Internal GPS module (with external antenna)
- cnPulse port
- Full per-port control with stats available
Comprehensive/Intelligent PoE solution
- 802.3af/at/bt, up to 90W
- 24V Passive PoE, up to 15W
- 54V Passive PoE, up to 90W
- Comprehensive/Intelligent PoE solution, 802.3af/at/bt - up to 90W, 24V Passive PoE - up to 15W, 54V Passive PoE - up to 90W
- Supports CRPS AC/DC Removable power supplies (sold separately)
- Non-Blocking, Fully Managed, Enterprise Grade, L2/L3 switch
- Cambium (GPS) Sync - Redundant dual sources
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Unified Wired-Wireless access solution
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Cambium Networks TX2012R-P Cambium cnMatrix TX 2012R-P, Intelligent Ethernet PoE Switch,CambiumSync,8 x 1gbps, and 4 SFP+, Removeable Power Supply (not included)
- Brand: Cambium Networks
- MPN: TX2012R-P
- Part #: NETCBN010177
Product URL: https://www.pbtech.com/au/product/NETCBN010177/Cambium-Networks-TX2012R-P-Cambium-cnMatrix-TX-201
Features
Cambium cnMatrix TX2012R-P 12-Port Gigabit PoE WISP Tower Switch
Cambium cnMatrix TX2012R-P is an Intelligent Ethernet PoE Switch with Cambium Sync, 8x 1gbps Ethernet Ports which support multiple PoE modes, and 4x SFP+ Ports. Power supply sold separately, supports Common Removeable Power Supplies (CRPS).
Cambium cnMatrix Tower Switches provide Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
Cambium Sync
- Redundant Input Sync sources
- Internal GPS module (with external antenna)
- cnPulse port
- Full per-port control with stats available
Comprehensive/Intelligent PoE solution
- 802.3af/at/bt, up to 90W
- 24V Passive PoE, up to 15W
- 54V Passive PoE, up to 90W
- Comprehensive/Intelligent PoE solution, 802.3af/at/bt - up to 90W, 24V Passive PoE - up to 15W, 54V Passive PoE - up to 90W
- Supports CRPS AC/DC Removable power supplies (sold separately)
- Non-Blocking, Fully Managed, Enterprise Grade, L2/L3 switch
- Cambium (GPS) Sync - Redundant dual sources
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Unified Wired-Wireless access solution
Specifications
Throughput
104 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
10/100/1000 Mbps RJ45 Ports
8
10 Gbps Fiber Ports (SFP+)
4
Serial Console
Yes
USB
Yes
Internal Fans
2
Flash Storage
128 MB
DRAM
512 MB
Cambium Sync (via RJ45 ports)
8
External Antenna Port (GPS)
Yes
cnPulse Port
Yes
Removable Power Supply Ports (CRPS)
1
Power Supply
CRPS dependent
Max Switch Power Consumption (WITH TRAFFIC)
38.88W
MTBF (hours)
393648
Unit Weight
2.24 kg
Unit Dimensions (H x L x W)
4.4 x 25 x 26 cm
CPU Speed
800 MHz
LEDs per port
Link/Activity, PoE
PoE Power Budget
CRPS dependent (see Datasheet)
802.3af/at/bt PoE (54V)
Ports 1-8
24V Passive PoE - up to 15W
Ports 5-8
54V Passive PoE - up to 90W
Ports 1-4
54V Passive PoE - up to 30W
Ports 5-8
PoE Max Power Per Port
30W/90W
Rack Mount Kit
Not Included (optional accessory)
Wall Mountable
Not Included (optional Accessory)
Temperature Ranges
-10°C up to 65°C
Operating Humidity
55°C at 95% RH
Storage Temperature
-40°C to 70°C
